LA9FH601

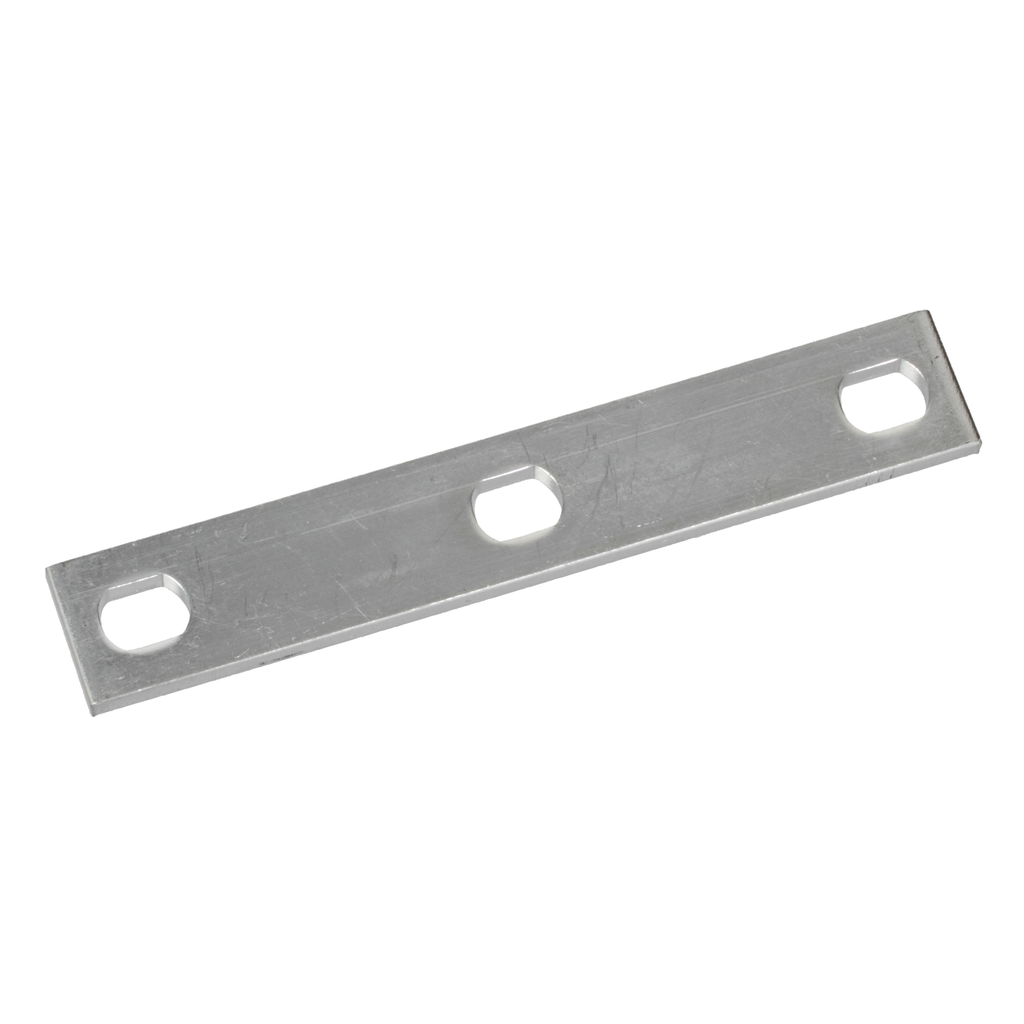

TeSys F - link for star connection - for LC1F225...400
TeSys F connection accessory, 3-pole link for contactors LC1 F225, F265, F330, F400. Used for the star contactor in a star-delta starter assembling. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1505009EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Width | 121 mm |
| Height | 20 mm |
| Weight | 0.12 kg |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | link for star connection |
| Product Name | TR |
| Range | Linergy |
| Poles Description | 3P |
| Quantity Per Set | set of 1 |
| Range Compatibility | TeSys F |
| Product Compatibility |
|
| Device Short Name | LA9F |
| Height | 20 mm |
| Net Weight | 0.12 kg |
| Width | 121 mm |
| Depth | 5 mm |
| Warranty | 18 months |
