LA9FH4F

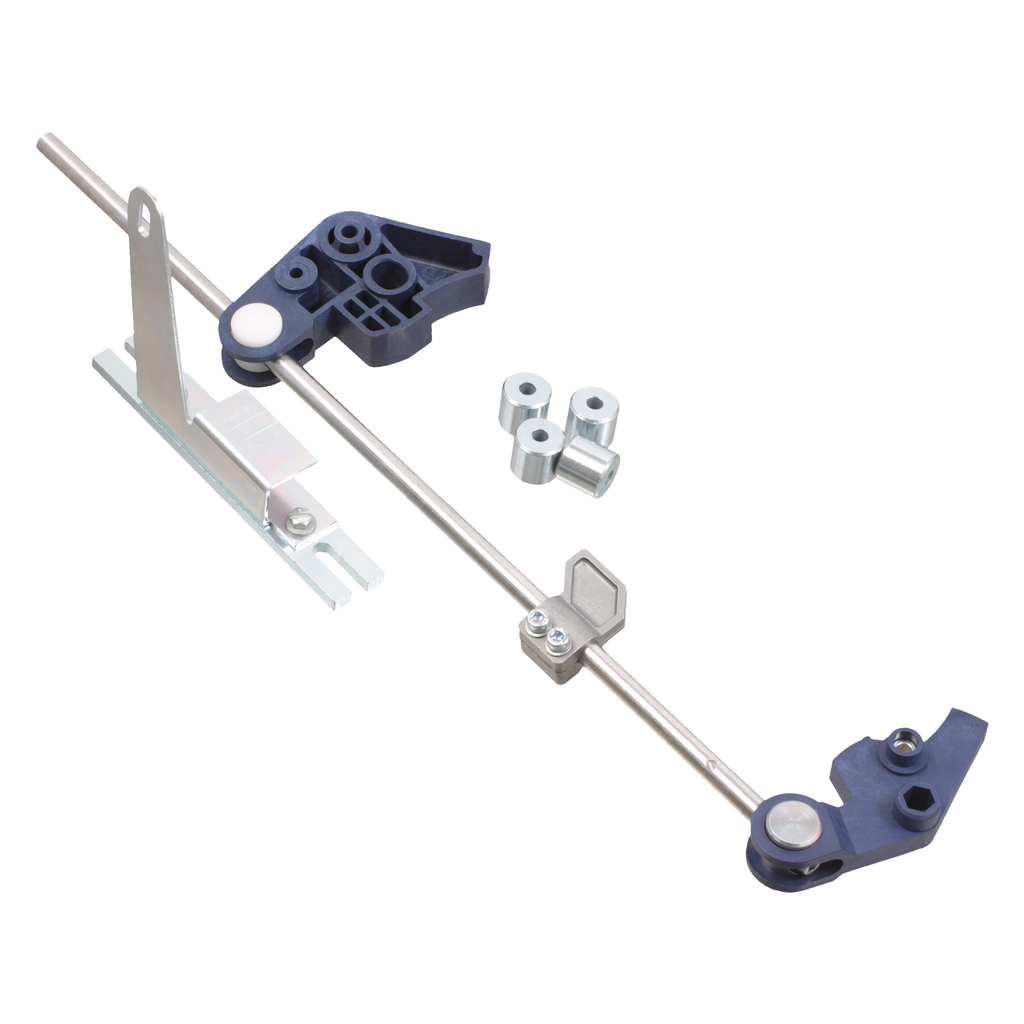

TeSys F- mechanical interlock - for 2 vertical contactors
Specifications
| Mounting Support | asymmetrical AM1-EC rail |
|---|---|
| Net Weight | 0.87 kg |
| Mounting Position | 2 vertical |
| Interlocked Device |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1505009EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | France |
| Weight | 0.87 kg |
| Interlocking Type | mechanical |
| Accessory / Separate Part Category | interlocking accessory |
| Product Or Component Type | mechanical interlock |
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | LA9F |
Documents
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- TeSys catalogue - 2020 - chapter B9 high power contactors TeSys F,V, FG, CR1F - B9+-++High+power+contactors_EN+(web) (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
- Spec Sheet
- LA9-F.4.. Mechanical interlocks for reversing contactors LC2 F (Vertically mounted) - 1355821_01A55 (pdf)
