LA9F703

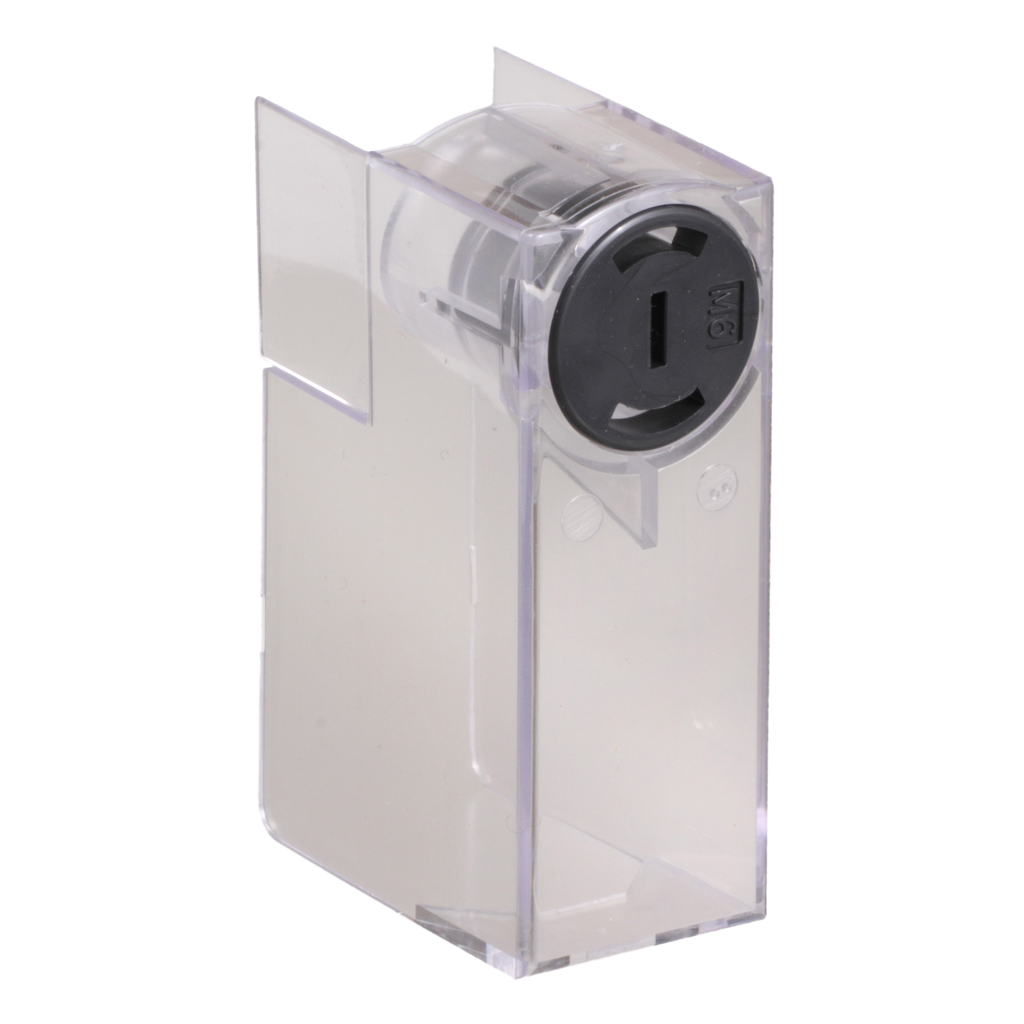

TeSys F - terminal shroud for contactor or relay 2P/3P
TeSys F power terminal protection shrouds, for 3-pole contactors LC1 F225, F265, F330, F400, F500 and CR1 F265, F400, F500, and thermal overload relays LR9 F75, F79, F81, F*75, F*79, F*81. Set of 6 units. The shrouds protect against direct contact on terminals by providing a front face IP20 protection. One shroud per power terminal, to be attached to the connection screw of the terminal. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Czechia |
|---|---|
| Weight | 0.25 kg |
| Range Compatibility |
|
| Accessory / Separate Part Category | protection accessory |
| Product Or Component Type | terminal shroud |
| Range | TeSys |
| Poles Description | 1P |
| Quantity Per Set | set of 6 |
| Product Compatibility |
|
| Device Short Name | LA9F |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1505009EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Compliant |
| Net Weight | 0.25 kg |
| Mounting Location | on power terminal |
| Warranty | 18 months |
