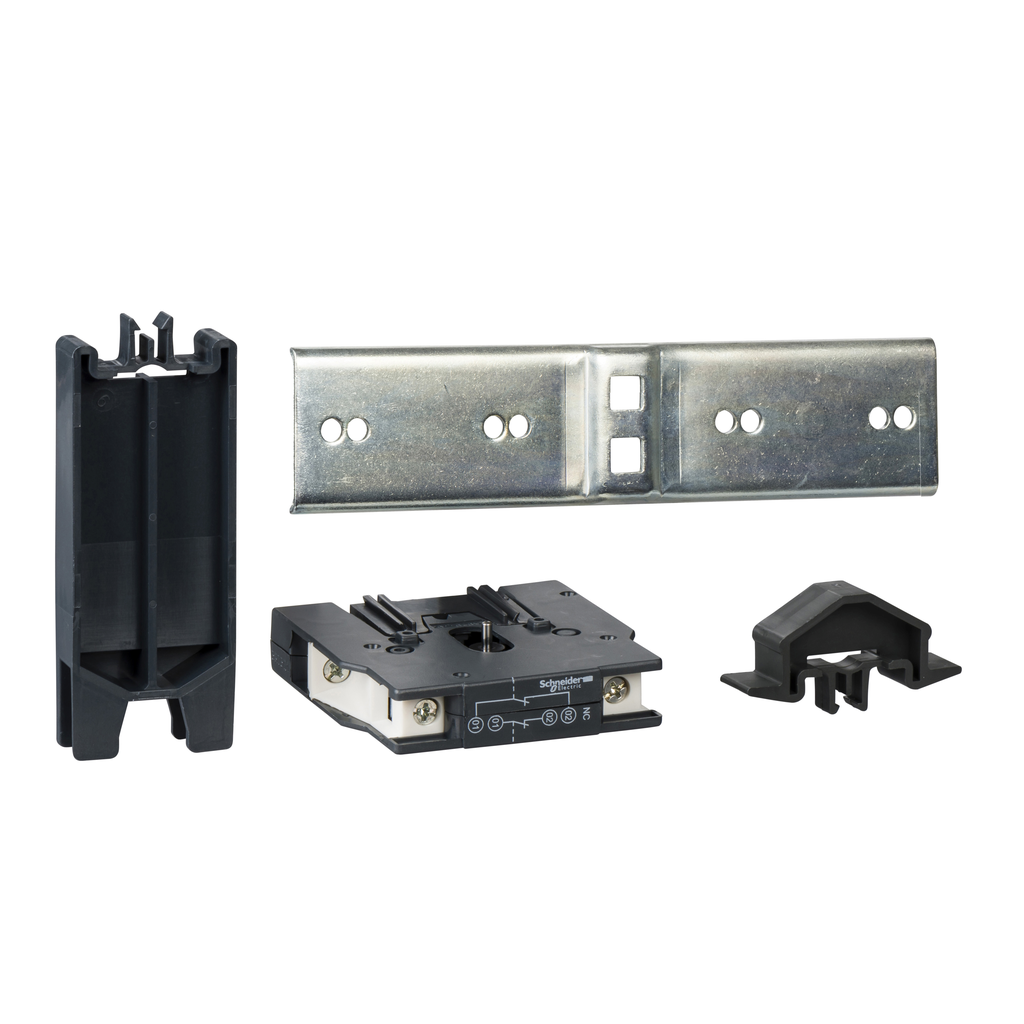

LA9D8002
Mechanical and electrical interlock, TeSys Deca reversing & changeover, 2 contactors LC1/LP1D80-D95 DC coil
TeSys D mechanical interlock, for contactors LC1D80, LC1D95 with DC coils. To be used for reversing and changeover assemblings. It includes an integral electrical interlocking. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Weight | 0.17 kg |
| Interlocking Type | electrical and mechanical |
| Range Of Product | TeSys Deca |
| Range Compatibility | TeSys TeSys D contactor |
| Accessory / Separate Part Category | interlocking accessory |
| Product Or Component Type | mechanical interlock |
| Range | TeSys |
| Poles Description |
|
| Electrical Circuit Type |
|
| Product Compatibility |
|
| Device Short Name | LA9D |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110205EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
| Net Weight | 0.17 kg |
