LA9D65A69

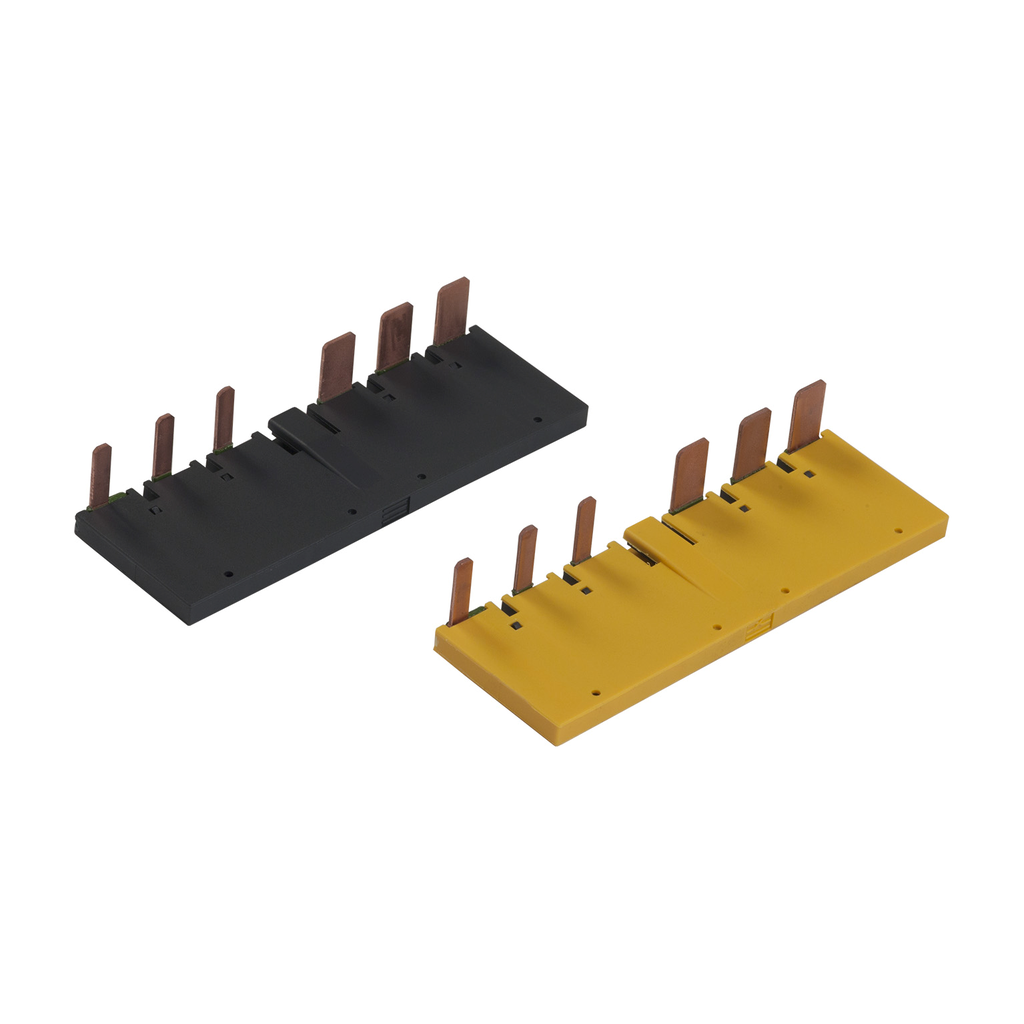

Set of power connections, parallel and reverser busbars, for 3P reversing contactors assembly, LC1D40A-D80A
TeSys D set of power connections, for 3-pole contactors LC1D40A-D80A. To be used for assembling contactors in reversing motor starters. It includes a set of parallel bars for the line side, a set of reverser bars for the load side. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Weight | 0.13 kg |
| Range Of Product | TeSys Deca |
| Range Compatibility |
|
| Product Or Component Type | set of connections |
| Range |
|
| Poles Description | 3P |
| Electrical Circuit Type | reversing contactor |
| Product Compatibility |
|
| Device Short Name | LA9D |
| Warranty | 18 months |
| Net Weight | 0.13 kg |
