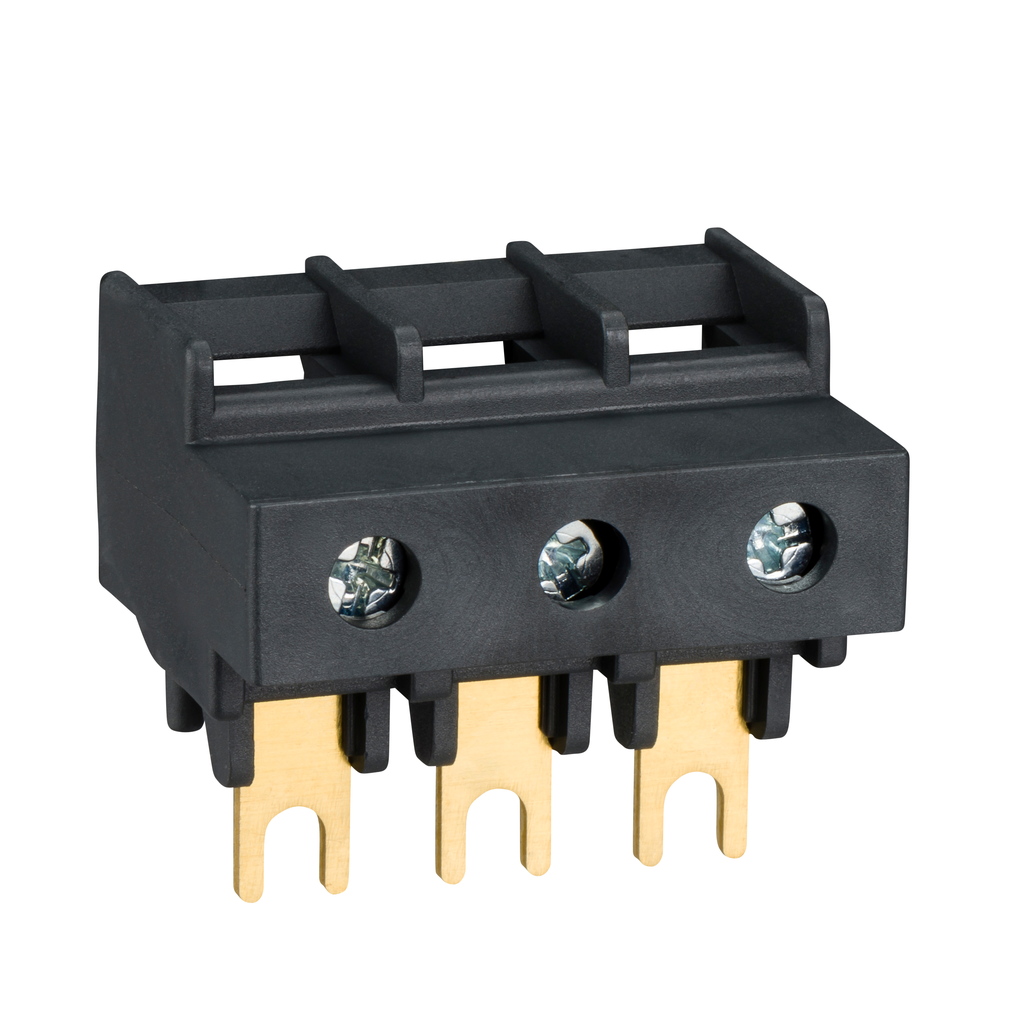

LA9D3260
Terminal block, TeSys Deca, 3P, screw clamp
TeSys D terminal block 3 phases, for 3-pole contactors LC1D09-D38. It provides screw clamp terminals for cables up to 25mm². Sold in lots of 1 unit. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP080204EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI100414 |
| Eu Rohs Directive | Compliant |
| Country of Origin | France |
| Weight | 0.04 kg |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | terminal block |
| Product Name | FT |
| Range | Linergy |
| Poles Description | 3P |
| Product Compatibility | LC1D09...D38 |
| Device Short Name | LA9D |
| Warranty | 18 months |
| Connections - Terminals | screw clamp terminals 1 6-25 mm² |
| Net Weight | 0.04 kg |
