LA9D115603

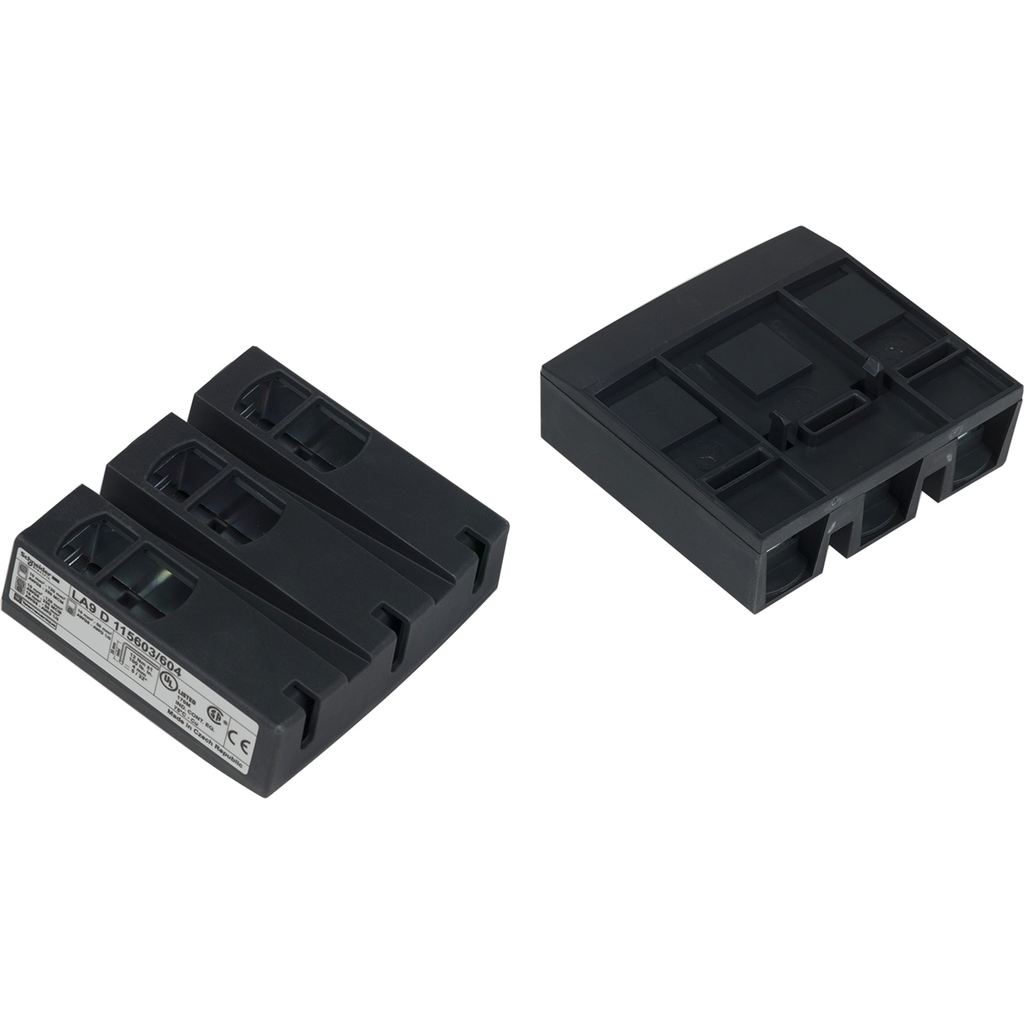

Terminal block, TeSys Deca, 3P, Screw clamp, for LC1D115 or LC1D150
TeSys D terminal block 3 phases, for 3-pole contactors LC1D115, LC1D150. It provides screw clamp terminals for cables up to 120mm². Sold in lots of 2 units. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Weight | 0.56 kg |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | terminal block |
| Range | TeSys |
| Poles Description | 3P |
| Product Compatibility |
|
| Device Short Name | LA9D |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP060301EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI100405EN |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
| Connections - Terminals | screw clamp terminals 120-120 mm² |
| Net Weight | 0.56 kg |
| Quantity Per Set | 2 |
