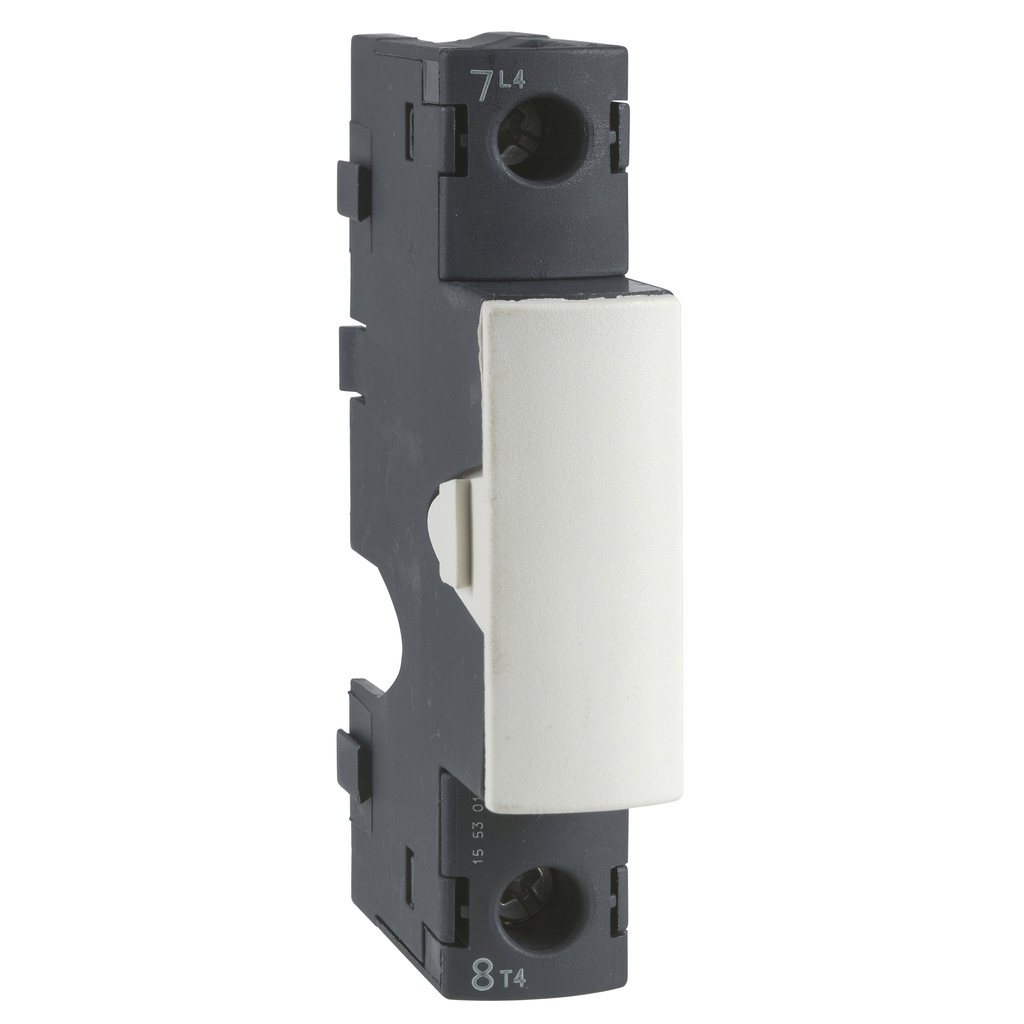

LA8D324 - Fuse disconnector, TeSys DF, 1P, 600V, 30A, 10 x 38mm, Add on for LS1D32

LA8D324

Add to Quote Catalogue

Product Certifications	BV
Ambient Air Temperature For Operation	-50-70 °C operation
Height	89 mm
Standards	IEC 60947-2 IEC 60947-1 IEC 60947-4-1
Protective Treatment	TH
Width	45 mm
Depth	68.3 mm
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Compliant
Fuse Size	10 x 38 mm
[Ue] Rated Operational Voltage	600 V
Mounting Support	rail
Connections - Terminals	screw clamp terminals 2 1-6 mm²solid screw clamp terminals 2 1-6 mm²flexible without cable end screw clamp terminals 2 1-4 mm²flexible with cable end
Associated Fuse Rating	30 A aM 30 A gG
Mounting Position	vertical +/- 23°)
Control Type	toggle
Tightening Torque	1.7 N.m screw clamp terminals
Fuse Type	aM gG
[Ie] Rated Operational Current	30 A
Local Signalling	blown fuse indication
Country of Origin	United States
Width	45 mm
Height	89 mm
Product Or Component Type	fuse-disconnector
Range	TeSys
Poles Description	1P
Device Short Name	LA8D
