LA7K0064

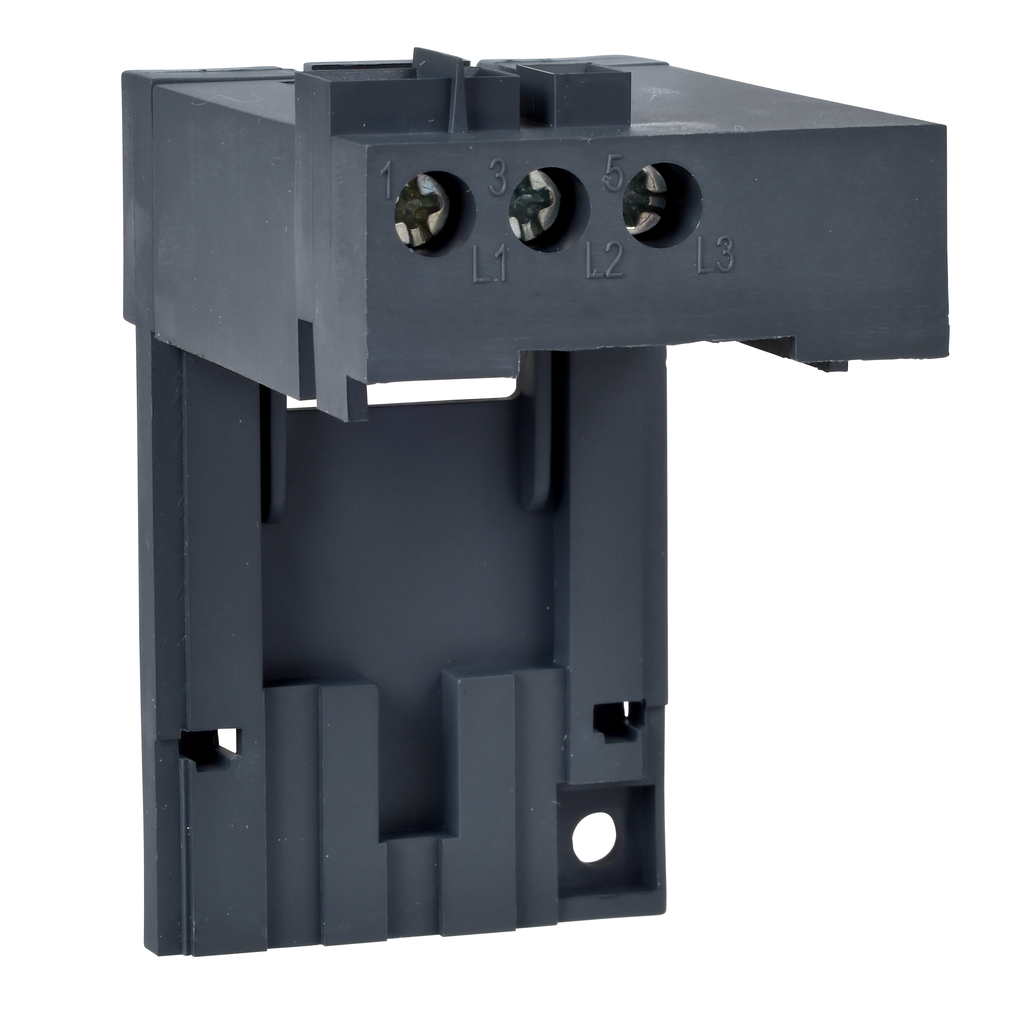

Thermal overload relays, TeSys K, terminal block, LA7K
TeSys LRK terminal block, for thermal overload relays LR2K, LR7K. To be used for a separate mounting of overload relay and contactor. It provides top connections by screw clamp terminals, clip-on fixing on 35 mm DIN-rail. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211018 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2211018 |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 80 mm |
| Net Weight | 0.1 kg |
| Connections - Terminals |
|
| Tightening Torque |
|
| Quantity Per Set | set of 10 |
| Width | 45 mm |
| Depth | 75 mm |
| Country of Origin | Czechia |
| Width | 45 mm |
| Height | 80 mm |
| Weight | 0.1 kg |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | terminal block |
| Range | TeSys |
| Mounting Support | rail |
| Product Compatibility |
|
| Device Short Name | LA7K |
| Warranty | 18 months |
Documents
- Spec Sheet
- IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf)
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3 - B11+-+Overload+relays_EN+(web) (pdf)
