LA5FG441
TeSys F - main contact set - 4P

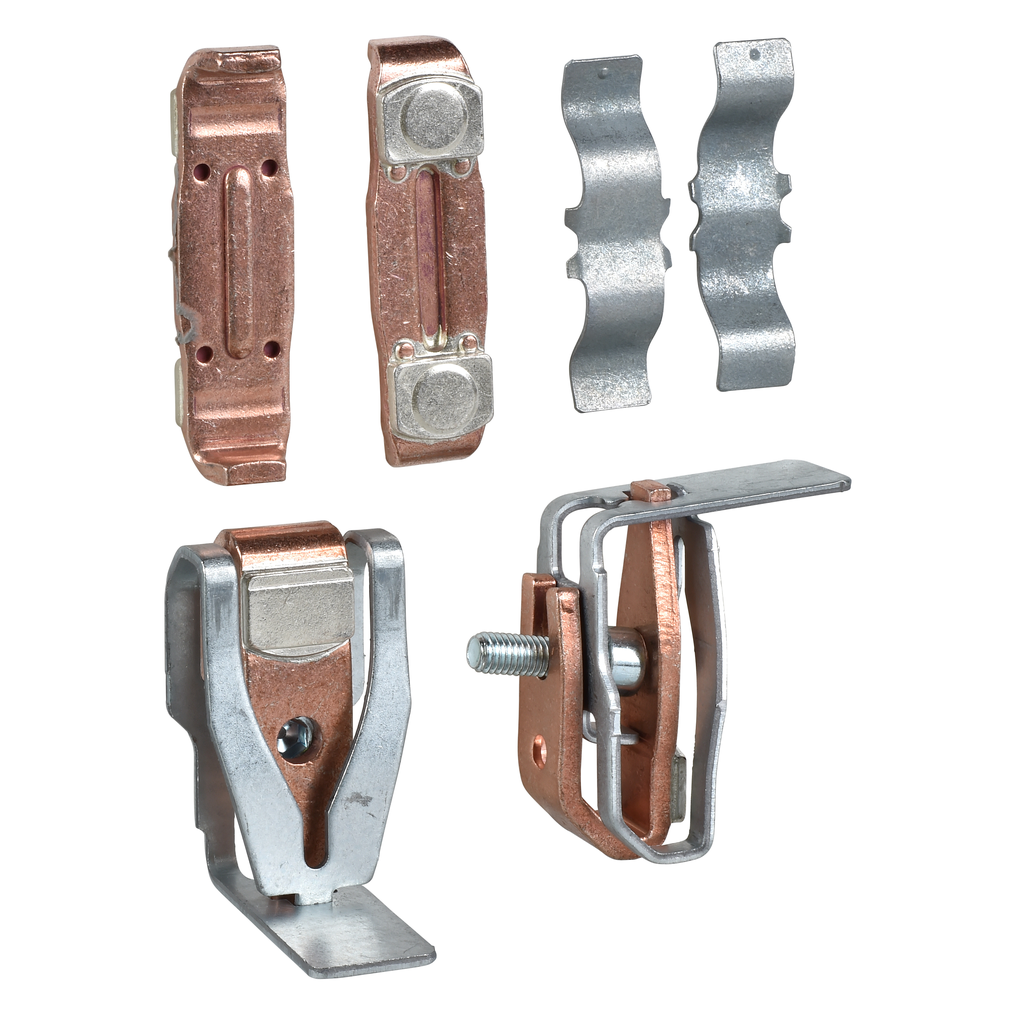

TeSys F set of replacement contacts, for TeSys F 4-pole contactors LC1F1854, LC1F2254, CR1F1854. Four contacts, one per pole. Each contact is composed of 2 fixed parts, 1 mobile part, deflectors, backplate and fixation screws. A pronounced wear of the tips of the contacts will require the contacts replacement. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Czechia |
|---|---|
| Weight | 0.465 kg |
| Product Or Component Type | main contact set |
| Range | TeSys |
| Net Weight | 0.465 kg |
| Poles Description | 3P |
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
Documents
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- TeSys catalogue - 2020 - chapter B9 high power contactors TeSys F,V, FG, CR1F - B9+-++High+power+contactors_EN+(web) (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
- Spec Sheet
- LA5 F...... Contactors / accessories /main contact sets - 1355819_01A55-11 (pdf)
