LA5D1158031

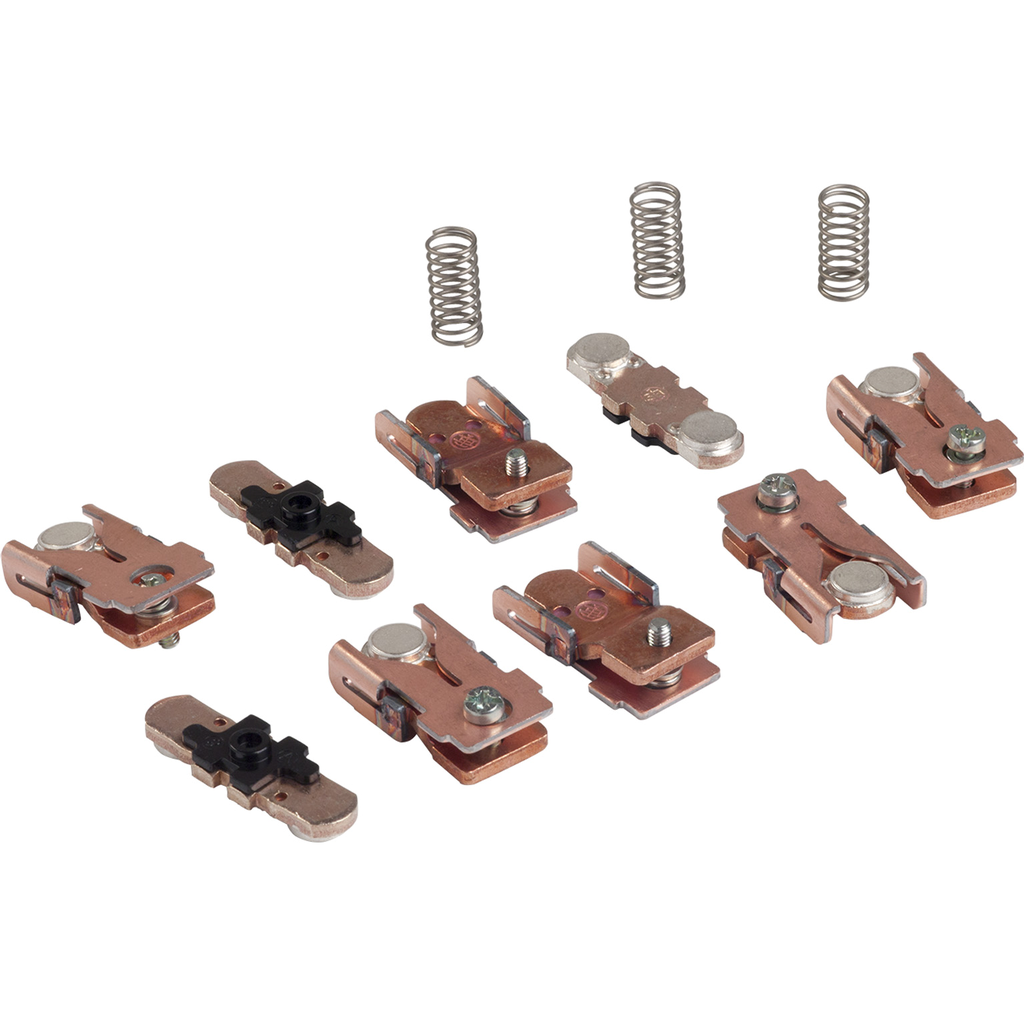

contacts set LA5-D, 3 poles, for LC1D115
TeSys D set of contacts, for 3-pole contactors LC1D115. For replacement of main contacts. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Weight | 0.26 kg |
| Product Or Component Type | main contact set |
| Range | TeSys |
| Poles Description | 3P |
| Product Compatibility | LC1D115 |
| Net Weight | 0.26 kg |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP060301EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI100405EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
Documents
- LC1/LC2 D115 D150 Contactors / Reversing contactors - Instruction Sheet - TeSys-Deca-Contactors-Instruction-Sheet-151130101A50-17 (pdf)
- LA5 D1158031/D150803/D115804 Set of contacts for LC1 D115…150 contactors - 1382261_01A55-05 (pdf)
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- TeSys Refresh Informational Guide - Brochure - 998-20803955_GMA-US (pdf)
- Square D Model 6 Intelligent Motor Control Centers Brochure - 8998BR0001 (pdf)
- Spec Sheet
- IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf)
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
