LA4KE1UG - Suppressor module, varistor, TeSys K, 130 to 250V

LA4KE1UG

Suppressor module, varistor, TeSys K, 130 to 250V

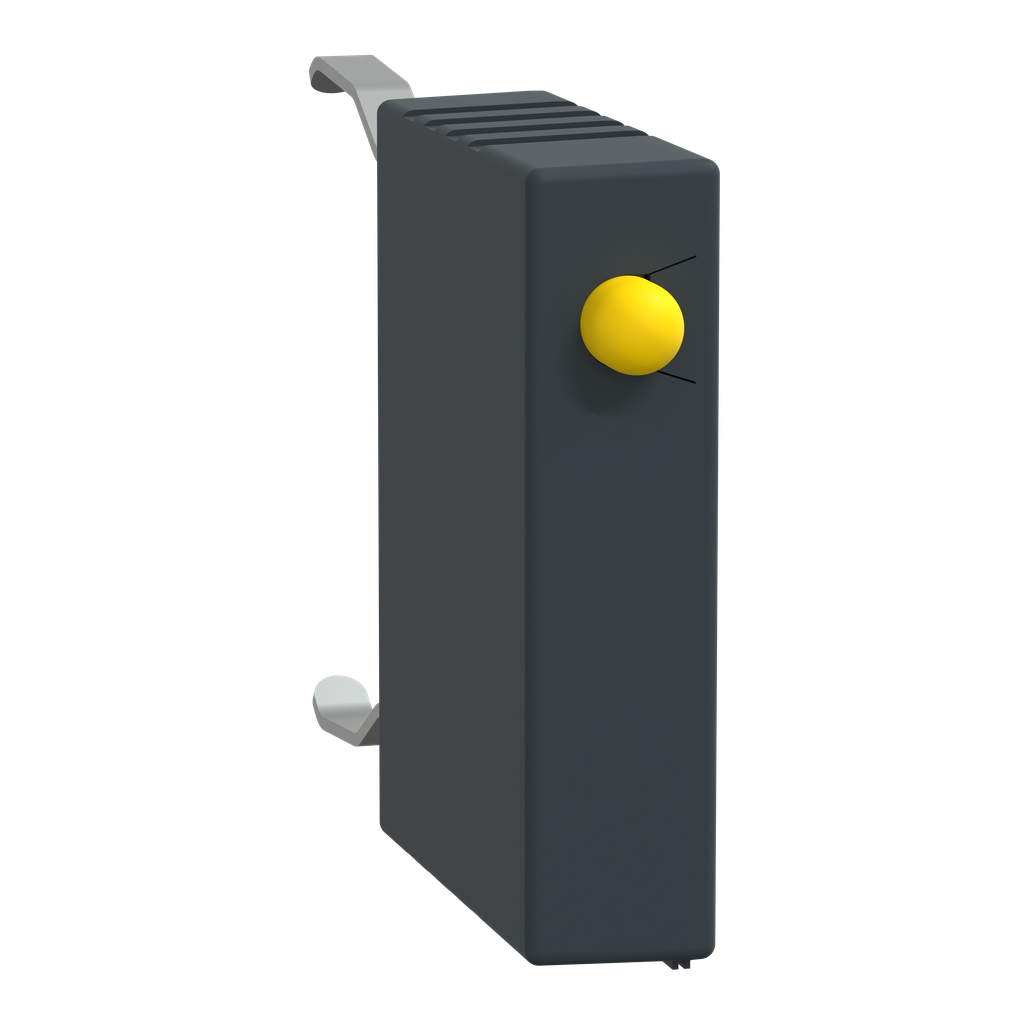

TeSys K suppressor module, for contactors LC.K, LP.K, CA.K. To be used with 130-250V AC or DC control circuit voltage, it provides a varistor protection limiting the transient voltage to 2 Uc max. Clip-on mounting on front of contactor (no tools required), it incorporates a power-on LED indicator. Sold in lots of 5 units. Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL CSA CE UKCA
Ambient Air Temperature For Operation	-25-50 °C
Standards	UL 60947-5-1 CSA C22.2 No 60947-5-1 EN/IEC 60947-5-1
Ip Degree Of Protection	IP2XIEC 60529
Ambient Air Temperature For Storage	-50-80 °C
Protective Treatment	TCIEC 60068 TCDIN 50016
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP111253EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
[Uc] Control Circuit Voltage	130...250 V AC 130...250 V DC
Height	26 mm
Net Weight	0.01 kg
Mounting Location	front side
Maximum Peak Voltage	2 Uc
Mounting Mode	clip-on
Local Signalling	LED
Quantity Per Set	set of 5
Width	6 mm
Depth	22 mm
Suppressor Technology	varistor (peak limiting)
Country of Origin	France
Width	6 mm
Height	26 mm
Weight	0.01 kg
Product Or Component Type	suppressor module
Range	TeSys
Product Compatibility	LC1K LP1K LP4K CA2K CA3K
Device Short Name	LA4K

Suppressor module, varistor, TeSys K, 130 to 250V
