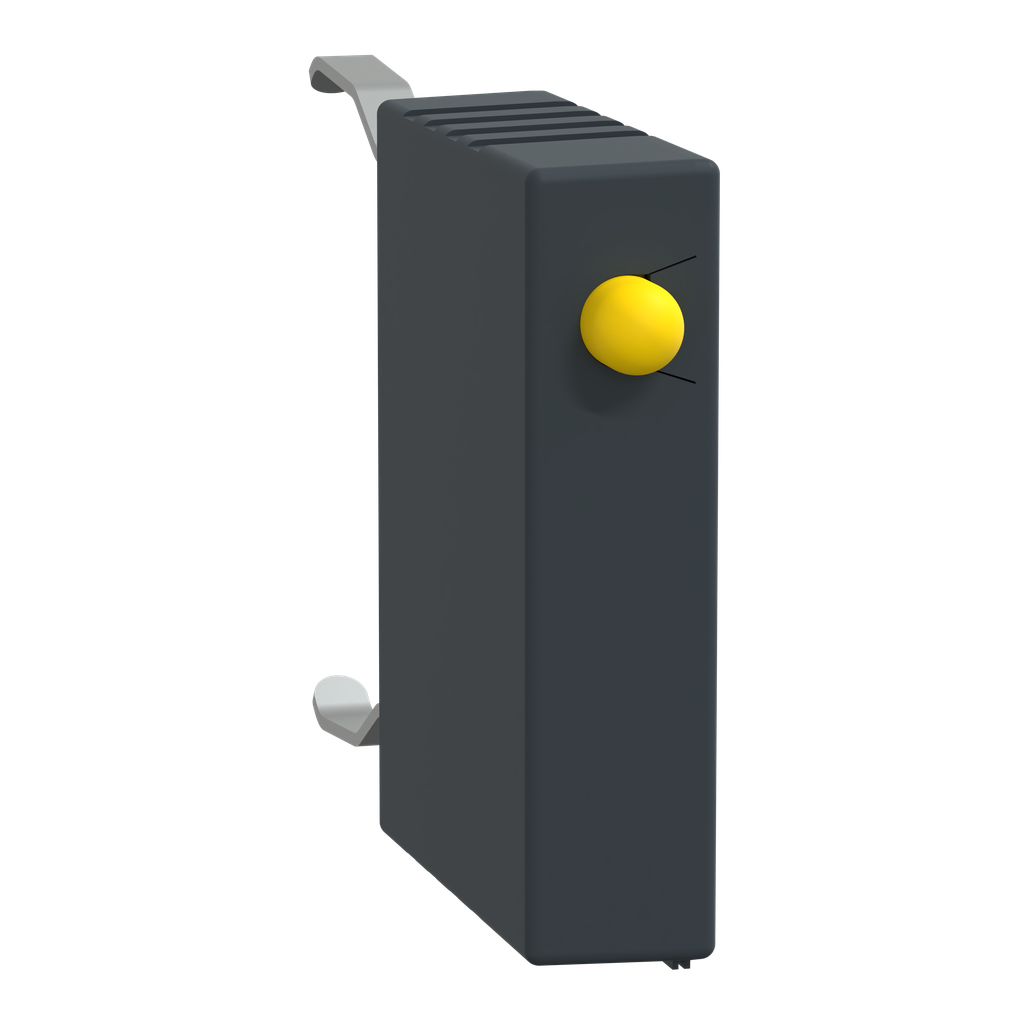

LA4KE1B
Suppressor module, varistor, TeSys K, 12 to 24V
TeSys K suppressor module, for contactors LC.K, LP.K, CA.K. To be used with 12-24V AC or DC control circuits, it provides a varistor protection limiting the transient voltage to 2 Uc max. Clip-on mounting on front of contactor (no tools required), it incorporates a power-on LED indicator. Sold in lots of 5 units. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | suppressor module |
|---|---|
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | LA4K |
| Warranty | 18 months |
| [Uc] Control Circuit Voltage |
|
| Height | 26 mm |
| Net Weight | 0.01 kg |
| Mounting Location | front side |
| Maximum Peak Voltage | 2 Uc |
| Mounting Mode | clip-on |
| Local Signalling | LED |
| Quantity Per Set | set of 5 |
| Width | 6 mm |
| Depth | 22 mm |
| Suppressor Technology | varistor (peak limiting) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111253EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-50 °C |
| Standards |
|
| Ip Degree Of Protection | IP2XIEC 60529 |
| Ambient Air Temperature For Storage | -50-80 °C |
| Protective Treatment |
|
Documents
- Spec Sheet
- CA2/CA3/CA4/LC./LP.-K Add-on contact blocks and surge supressor - Instruction sheet - 1379131_01A55-09 (pdf)
- LC1-K contactor - Instruction Sheet - 1378085_01A55_15 (pdf)
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- Digest Catalog 23: Relays and Timers (OCT 2020) - 0100CT1901_SEC-23_OCT2020 (pdf)
