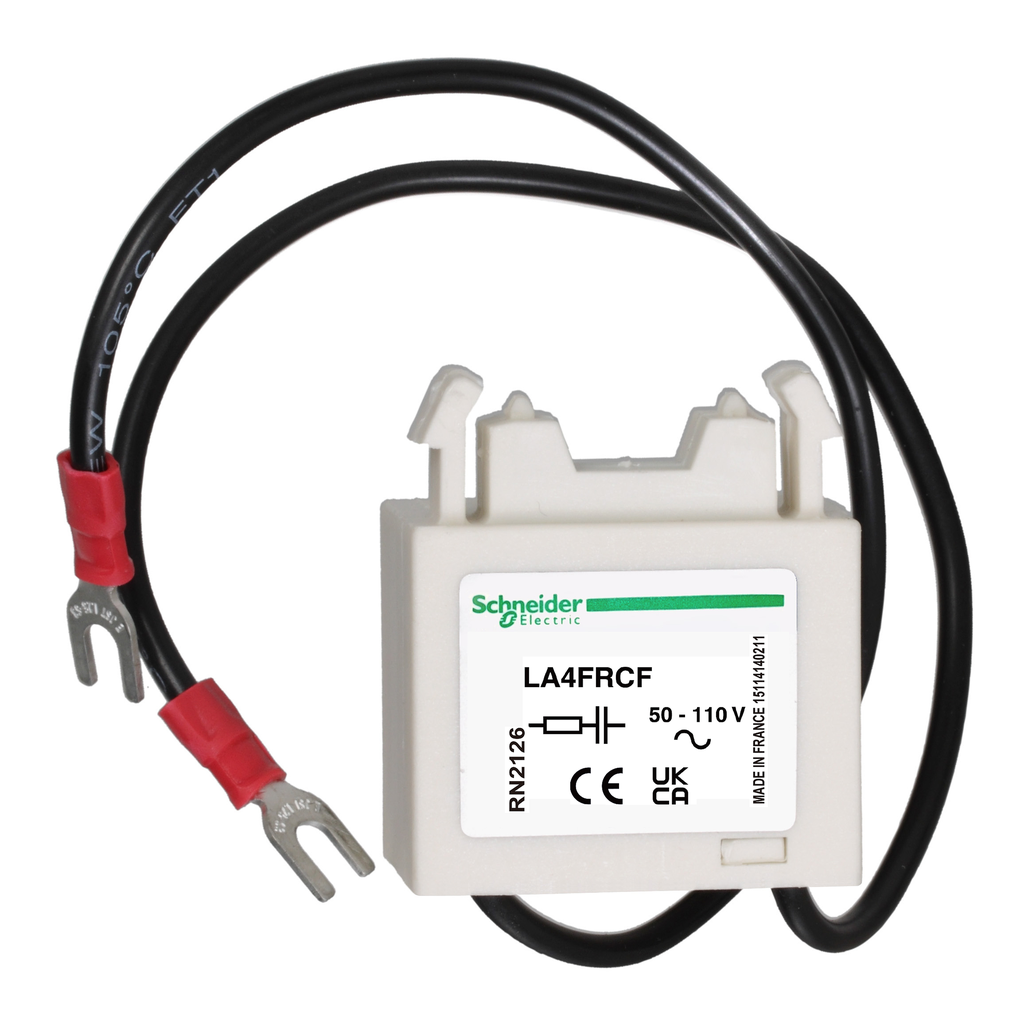

LA4FRCF
TeSys F - suppressor module - RC circuit - 50...110 V AC
TeSys F suppressor block, for coil protection of contactors LC1F, LC2F, CR1F. To be used for 50-110V AC control circuits, it provides RC protection limiting the transient voltage to 3 Uc max. Clipping on bracket LA9D09981 (to be ordered separately), to be connected to the coil screw terminals. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UKCA |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111253EN |
| Sustainable Offer Status | Green Premium product |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| [Uc] Control Circuit Voltage | 50...110 V AC |
| Net Weight | 0.04 kg |
| Maximum Peak Voltage | 3 Uc |
| Mounting Mode | by clips |
| Suppressor Technology | RC circuit |
| Country of Origin | France |
| Weight | 0.04 kg |
| Product Or Component Type | suppressor module |
| Range | TeSys |
| Product Compatibility | LC1F |
| Device Short Name | LA4F |
Documents
- LA4F... Coil suppressor to F range - Instruction Sheet - 1511418_01A50-09 (pdf)
- Spec Sheet
- TeSys catalogue - 2020 - chapter B9 high power contactors TeSys F,V, FG, CR1F - B9+-++High+power+contactors_EN+(web) (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
