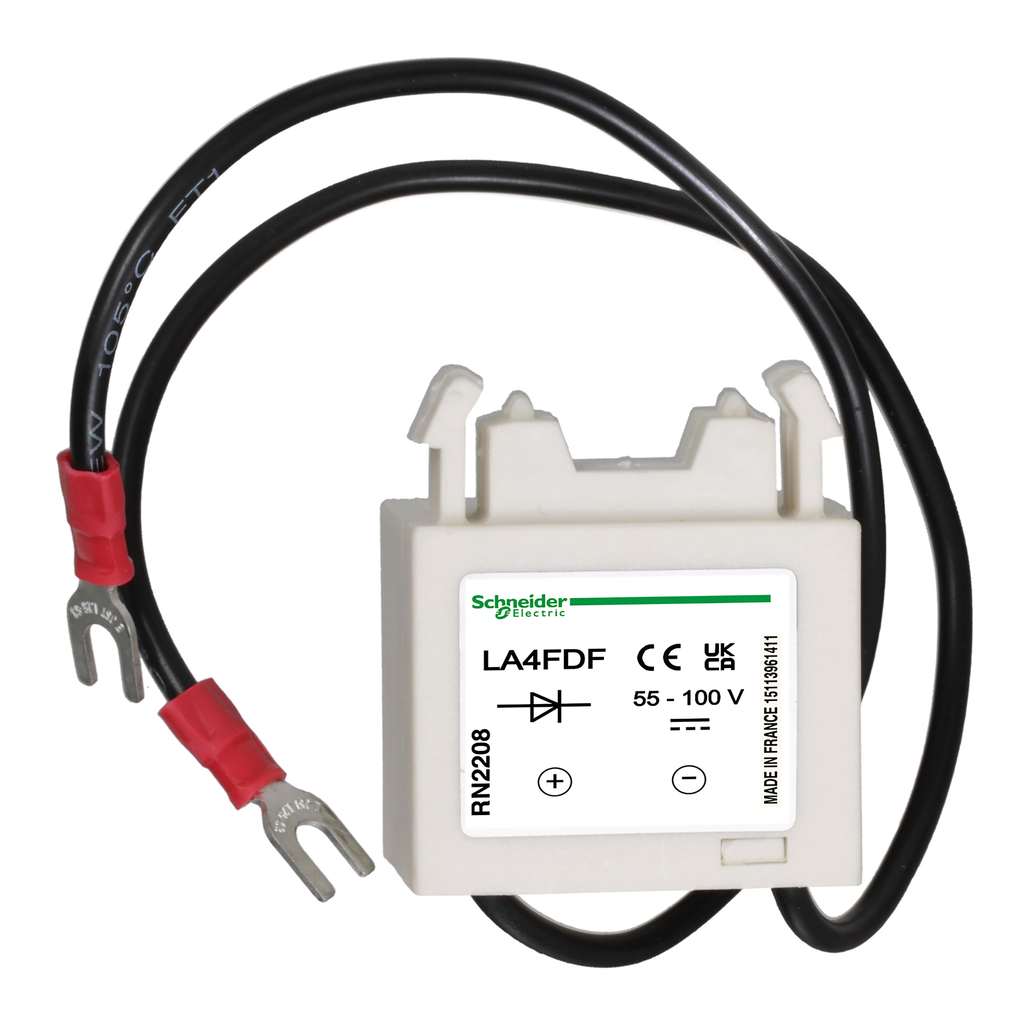

LA4FDF
TeSys F - suppressor module - diodes - 55...110 V DC
TeSys F suppressor block, for coil protection of contactors LC1F, LC2F, CR1F. To be used for 55-110V AC or DC control circuits, it provides a no transient voltage diode protection with an increase in drop-out time. Clipping on bracket LA9D09981 (to be ordered separately), to be connected to the coil screw terminals. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UKCA |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111253EN |
| Sustainable Offer Status | Green Premium product |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| [Uc] Control Circuit Voltage | 55...110 V DC |
| Net Weight | 0.04 kg |
| Maximum Peak Voltage | 1 Uc |
| Mounting Mode | by clips |
| Suppressor Technology | diodes |
| Country of Origin | France |
| Weight | 0.04 kg |
| Product Or Component Type | suppressor module |
| Range | TeSys |
| Product Compatibility | LC1F |
| Device Short Name | LA4F |
