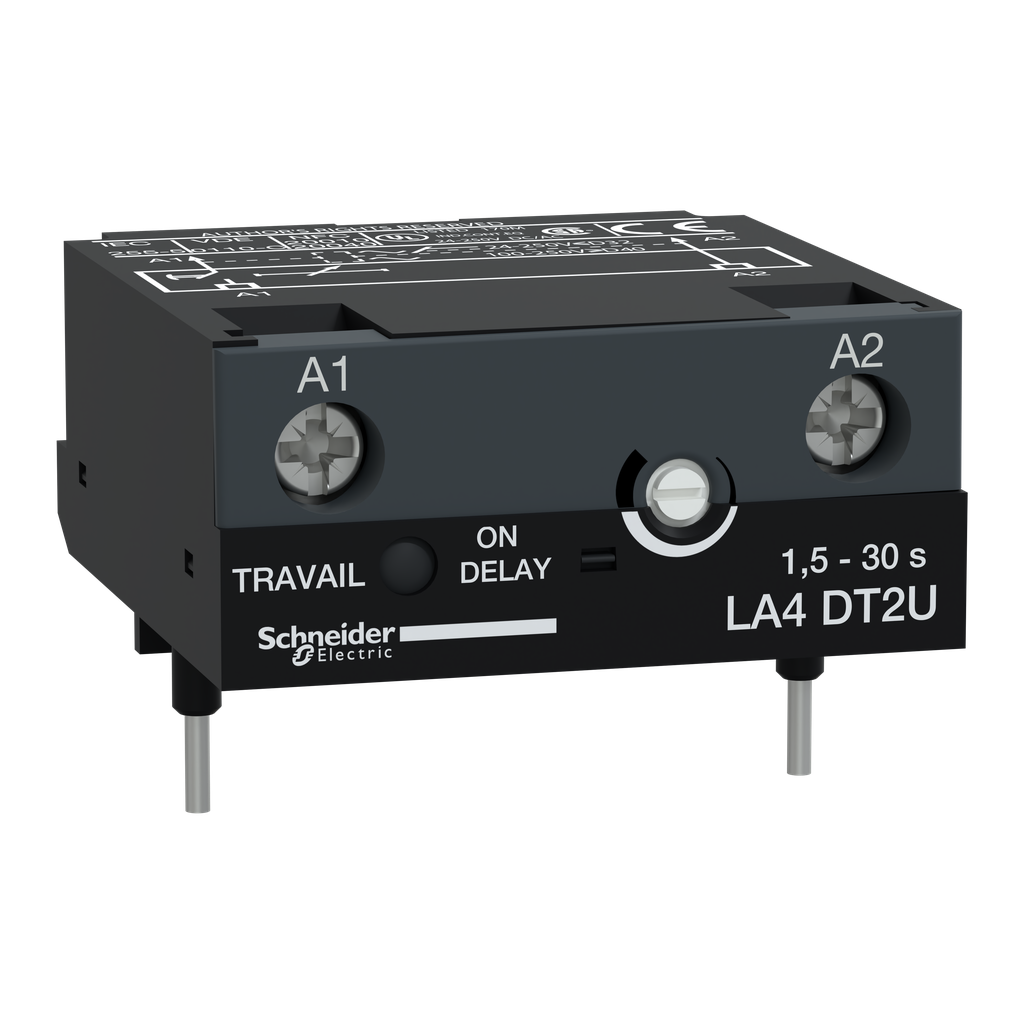

LA4DT2U
electronic timer module - type on delay - 1.5....30 s - 24....250 V DC/AC
TeSys Deca electronic timer module for LC1D09-D38, LC1D40A-D80A, LC1D80-D150 (3P) contactors. To be used with 24-250V AC control circuit voltages, it provides a manual ajustable on-delay time 1.5 to 30 sec. The time delay period is signalling by LED. Mounting on contactors LC1D09-D38 using adapter LAD4BB, on contactors LC1D40A-D80A using adpater LAD4BB3, on contactors LC1D80-D150 (3P) directly on coil terminals. Multi standards certified (IEC, UL, CSA), it conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-55 °C |
| Standards | IEC 60255-5 |
| Immunity To Microbreaks |
|
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Permissible Ambient Air Temperature Around The Device | -25-70 °C |
| Protection Type | built-in by varistor |
| Heat Dissipation | 2-2 W |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111253EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| [Uc] Control Circuit Voltage |
|
| Control Circuit Voltage Limits | by mechanical contact: 0.8...1.1 Uc |
| Timer Type | on delay |
| Electrical Durability | 30 Mcycles |
| Net Weight | 0.04 kg |
| Connections - Terminals |
|
| Mounting Location | top |
| Reset Time |
|
| [Ui] Rated Insulation Voltage | 250 V IEC 60947-1 |
| Time Delay Range | 1.5...30 s |
| [Ures] Residual Voltage | 3.3 V |
| Tightening Torque | 1.7 N.m |
| Local Signalling | illuminates during time delay by LED |
| Country of Origin | Tunisia |
| Weight | 0.04 kg |
| Product Or Component Type | serial timer modules |
| Range | TeSys |
| Poles Description | 3P |
| Product Compatibility |
|
| Device Short Name | LA4DT |
