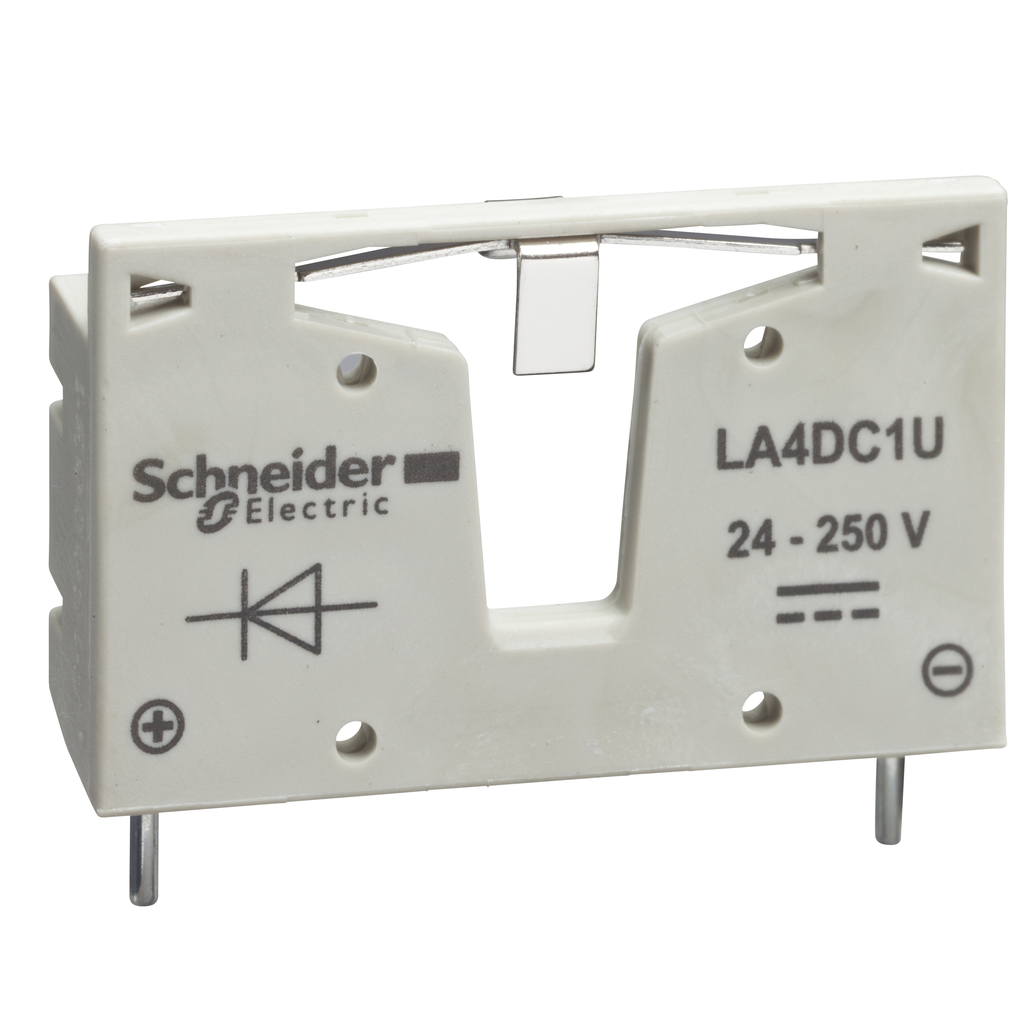

LA4DC1U
Suppressor module, TeSys Deca, diodes, 12 to 250VDC
TeSys D suppressor module, for LC1D09-D38 (3P) contactors. To be used with 24V-250V DC control circuit voltage, it provides flywheel diode protection ensuring no transient overvoltage. Mounting on top of contactor, clip-on fixing and connection (polarized component). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -25-55 °C |
|---|---|
| Ambient Air Temperature For Storage | -40-80 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111253EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| [Uc] Control Circuit Voltage | 24...250 V DC |
| Maximum Peak Voltage | 1 Uc |
| Mounting Mode | by screws |
| Suppressor Technology | flywheel diode |
| Country of Origin | United States |
| Product Or Component Type | suppressor module |
| Range | TeSys |
| Product Compatibility | 3P LP1D09...LP1D32 |
| Device Short Name | LA4D |
