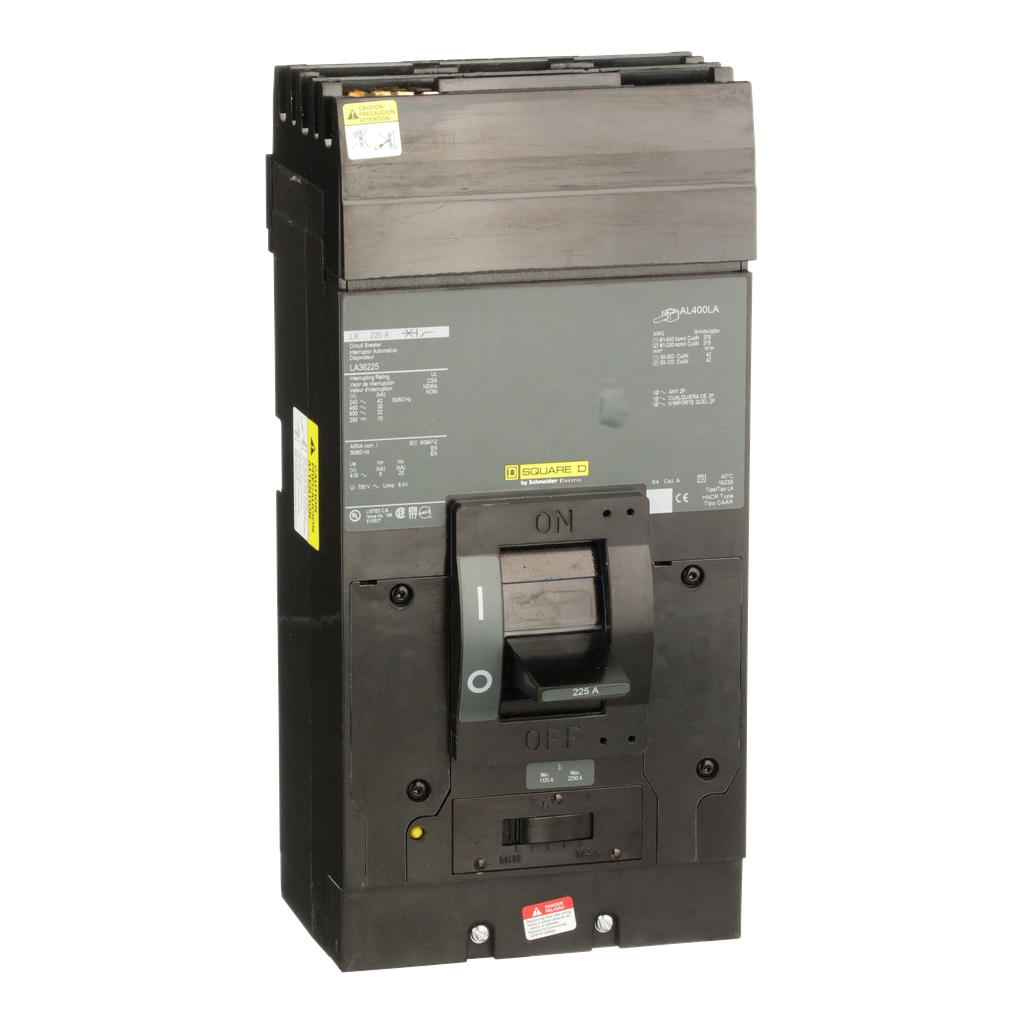

LA36225 - Circuit breaker, LA, 225A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic

LA36225

Circuit breaker, LA, 225A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This I-Line, circuit breaker is a 3P breaker with a rated current of 225A. This product has a breakning capacity of 22kA@600VAC. This breaker has a thermal-magnetic trip unit trechnology. This product complys to UL listed & CSA standards. With a magnetic hold current of 1125 A and a magnetic tripping current of 2250A. Dimensions for this product are 11 in (H), 6 in (W), 5.84 in (D).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL Listed CSA
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1410004EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Terminal Identifier	AL400LA
Height	11 in
Breaking Capacity Code	A
Magnetic Tripping Current	2250-2250 A
Electrical Connection	lugs, load I-Line connection, line
Magnetic Hold Current	1125 A
Circuit Breaker Application	HACR rated
Mounting Mode	I-Line
Poles Description	3P
Line Rated Current	225 A
Width	6 in
Wiring Configuration	3-wire
Depth	5.84 in
Country of Origin	Mexico
Width	6 in
Height	11 in
Trip Unit Technology	thermal-magnetic
Product Or Component Type	circuit breaker

Circuit breaker, LA, 225A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic
