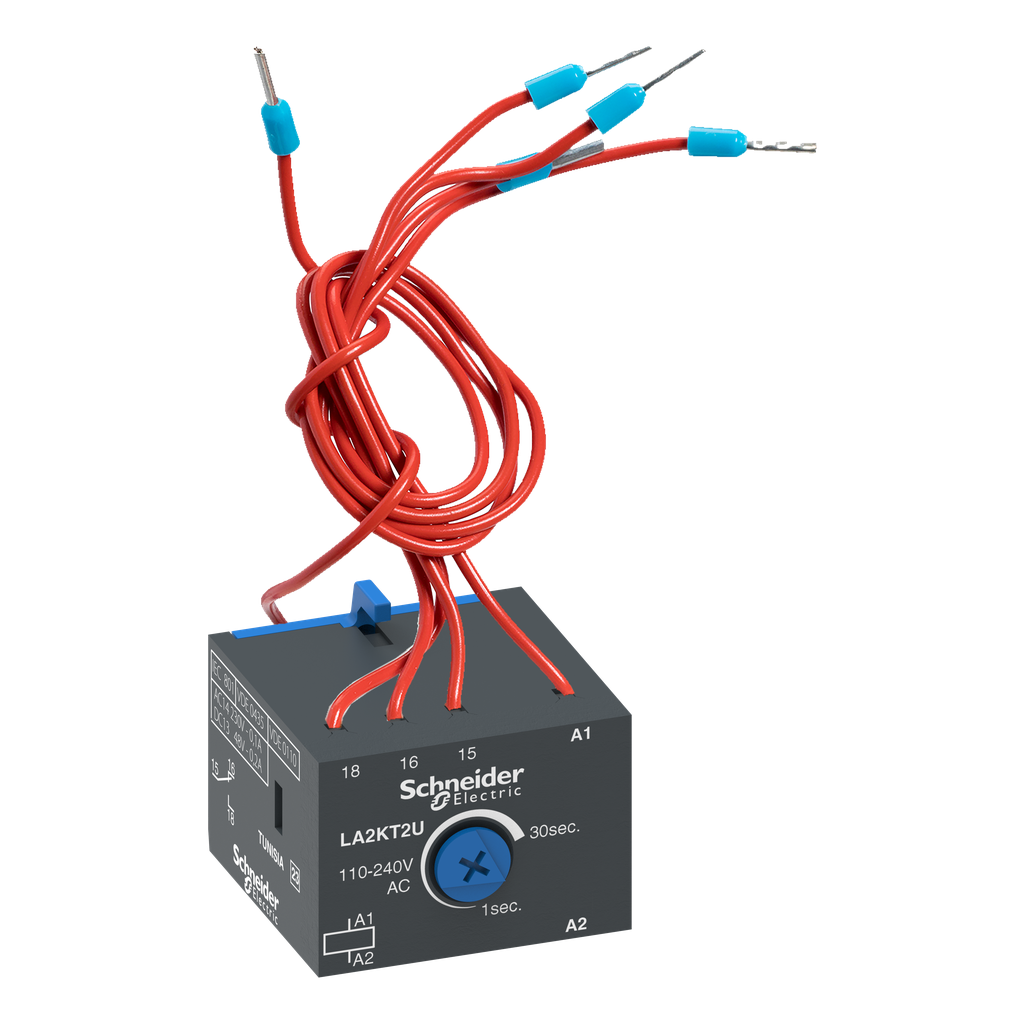

LA2KT2U
Electronic time delay auxiliary contact block, TeSys K, 1C/O, on delay 1-30s, front, control 110...240V AC
TeSys K electronic time delay contact block, for contactors LC.K, LP.K, CA.K. It provides 1C/O contact rated up to 2A 240V AC, with an on-delay setting range 1-30s. To be used for contactors with 110-240V AC/DC coils (F7 to U7, FD to UD). Front mounting by clip-on, connections by attached wires to the contactor. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -10-60 °C |
|---|---|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Environmental Characteristic | normal environment |
| Protective Treatment | TC IEC 60068 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2106022 |
| Sustainable Offer Status | Green Premium product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 27 mm |
| Insulation Resistance | > 10 MOhm |
| Net Weight | 0.04 kg |
| Connections - Terminals | slip-on terminals |
| Reset Time |
|
| Width | 38 mm |
| Depth | 38 mm |
| Country of Origin | Tunisia |
| Width | 38 mm |
| Height | 27 mm |
| Weight | 0.04 kg |
| Product Certifications |
|
| [Ith] Conventional Free Air Thermal Current | 2 A for signalling circuit |
| Timer Type | on delay |
| Rated Operational Voltage Limits | 0.85...1.1 Uc |
| [Ue] Rated Operational Voltage |
|
| Range Compatibility |
|
| Product Or Component Type | time delay auxiliary contact block |
| Product Name | TeSys K |
| Range | TeSys |
| Mounting Location | front |
| Pole Contact Composition | 1 C/O |
| Time Delay Range | 1...30 s |
| Auxiliary Contacts Operation | time delay |
| Device Short Name | LA1 |
