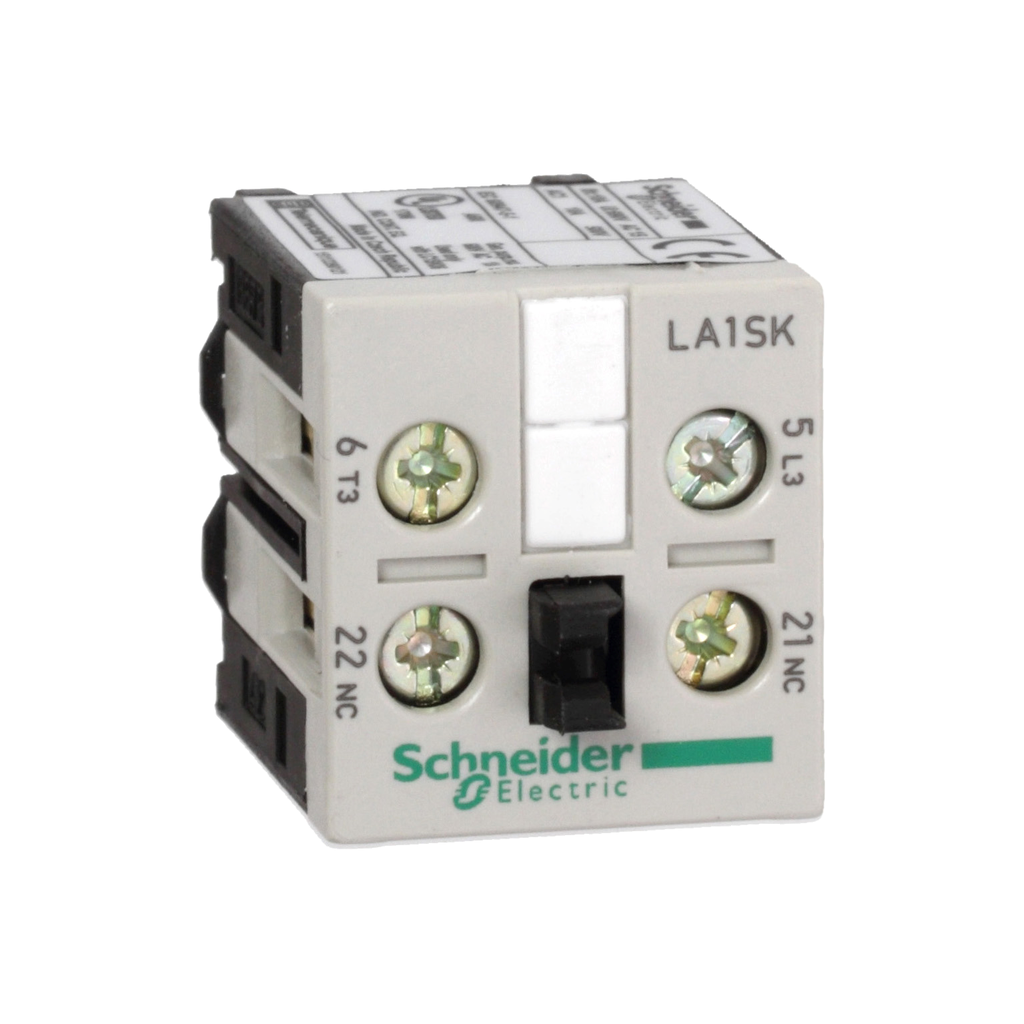

LA1SK11

TeSys SK, auxiliary contact block, 1NO+1NC

TeSys SK instantaneous auxiliary contact block, for mini contactors LC1SK, LP1SK and mini control relays CA2SK, CA3SK. It provides 1NO+1NC contacts rated up to 10A/690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CB Scheme CE UKCA EAC cULus
Ambient Air Temperature For Operation	-20-50 °C
Standards	CSA C22.2 No 60947-5-1 EN/IEC 60947-5-1 UL 60947-5-1
Ip Degree Of Protection	IP2X
Ambient Air Temperature For Storage	-50-70 °C
Protective Treatment	TC IEC 60068
Operating Altitude	6561.68 ft (2000 m) without derating
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503003EN
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1503003EN
Eu Rohs Directive	Compliant with Exemptions
[Ith] Conventional Free Air Thermal Current	10 A (at 55 °C)
[Ue] Rated Operational Voltage	690 V AC <= 400 Hz
Associated Fuse Rating	10 A gL conforming to IEC 60947 10 A gL conforming to VDE 0660
Net Weight	0.022 kg
Mounting Location	front side
[Ui] Rated Insulation Voltage	690 V IEC 60947 690 V BS 5424 690 V VDE 0110 group C 690 V CSA C22.2 No 14
Tightening Torque	0.8 N.m screw clamp terminals
Width	27 mm
Country of Origin	Germany
Width	27 mm
Weight	0.022 kg
Product Or Component Type	auxiliary contact block
Connections - Terminals	screw clamp terminals 1 1.5-6 mm²solid screw clamp terminals 2 1.5-4 mm²solid screw clamp terminals 1 0.5-6 mm²flexible with cable end screw clamp terminals 2 0.35-2.5 mm²flexible with cable end screw clamp terminals 1 0.35-6 mm²flexible without cable end screw clamp terminals 2 0.35-1.5 mm²flexible without cable end
Range	TeSys
Pole Contact Composition	1 NO + 1 NC
Product Compatibility	LC1SK
Auxiliary Contacts Operation	instantaneous
Device Short Name	LA1SK
