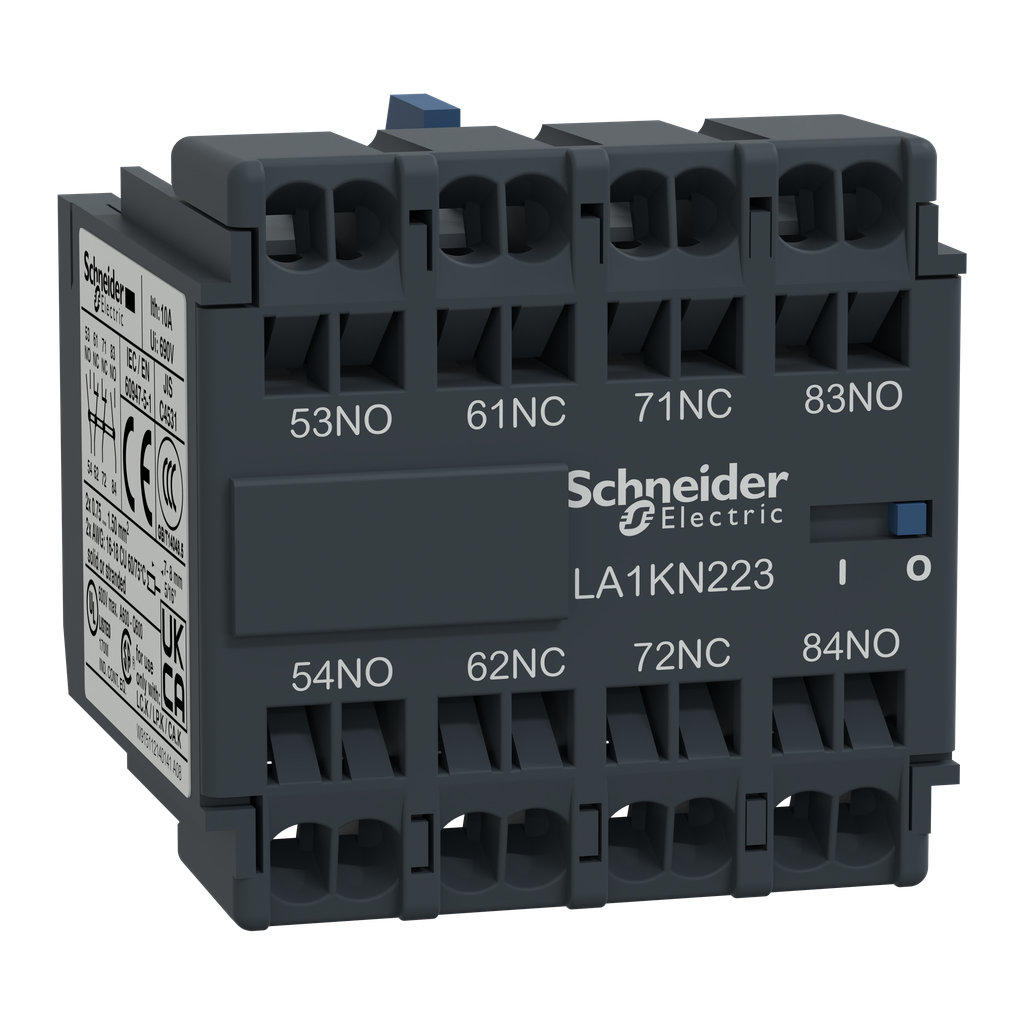

LA1KN223 - Auxiliary contact block, TeSys K, 2NO 2NC, front mounting, spring terminals

LA1KN223

Auxiliary contact block, TeSys K, 2NO+2NC, front mounting, spring terminals

TeSys K instantaneous auxiliary contact block, for contactors LC.K, LP.K, CA.K with screw clamp terminals (except LP4K, LP5K, CA4K). It provides 2NO+2NC contacts rated up to 10A 690V AC, connection by spring terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-25-50 °C
Ip Degree Of Protection	IP20 conforming to IEC 60529
Ambient Air Temperature For Storage	-50-80 °C
Environmental Characteristic	normal environment
Protective Treatment	TC IEC 60068
Operating Altitude	6561.68 ft (2000 m)
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2106022
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Sustainable Packaging	Yes
Eu Rohs Directive	Compliant
Permissible Short-Time Rating	80 A 1 s 60 A 500 ms 110 A 100 ms
Minimum Switching Current	5 mA
Height	30 mm
Non Overlap Distance	0.5 mm
Insulation Resistance	> 10 MOhm
Irms Rated Making Capacity	110 A at <= 690 V AC conforming to IEC 60947
Associated Fuse Rating	10 A gG at <= 690 V conforming to IEC 60947
Net Weight	0.045 kg
Connections - Terminals	spring terminals 1 0.75-1.5 mm²flexible without cable end spring terminals 1 0.75-1.5 mm²rigid
Minimum Switching Voltage	17 V
Width	38 mm
Depth	35 mm
Country of Origin	France
Width	38 mm
Height	30 mm
Weight	0.045 kg
Product Certifications	CB Scheme CCC UL CSA CE UKCA
[Ith] Conventional Free Air Thermal Current	10 A (at 50 °C)
[Ue] Rated Operational Voltage	690 V AC 25...400 Hz
Standards	EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 JIS C8201-5-1 UL 60335-2-40:Annex JJ
Range Compatibility	TeSys K LC1K TeSys K CA2K TeSys K CA3K
Product Or Component Type	auxiliary contact block
Product Name	TeSys K
Range	TeSys
Mounting Location	front
Pole Contact Composition	2 NO + 2 NC
[Ui] Rated Insulation Voltage	690 V IEC 60947-5-1 600 V UL 60947-5-1 600 V CSA C22.2 No 60947-5-1
Auxiliary Contacts Operation	instantaneous
Device Short Name	LA1

Auxiliary contact block, TeSys K, 2NO+2NC, front mounting, spring terminals
