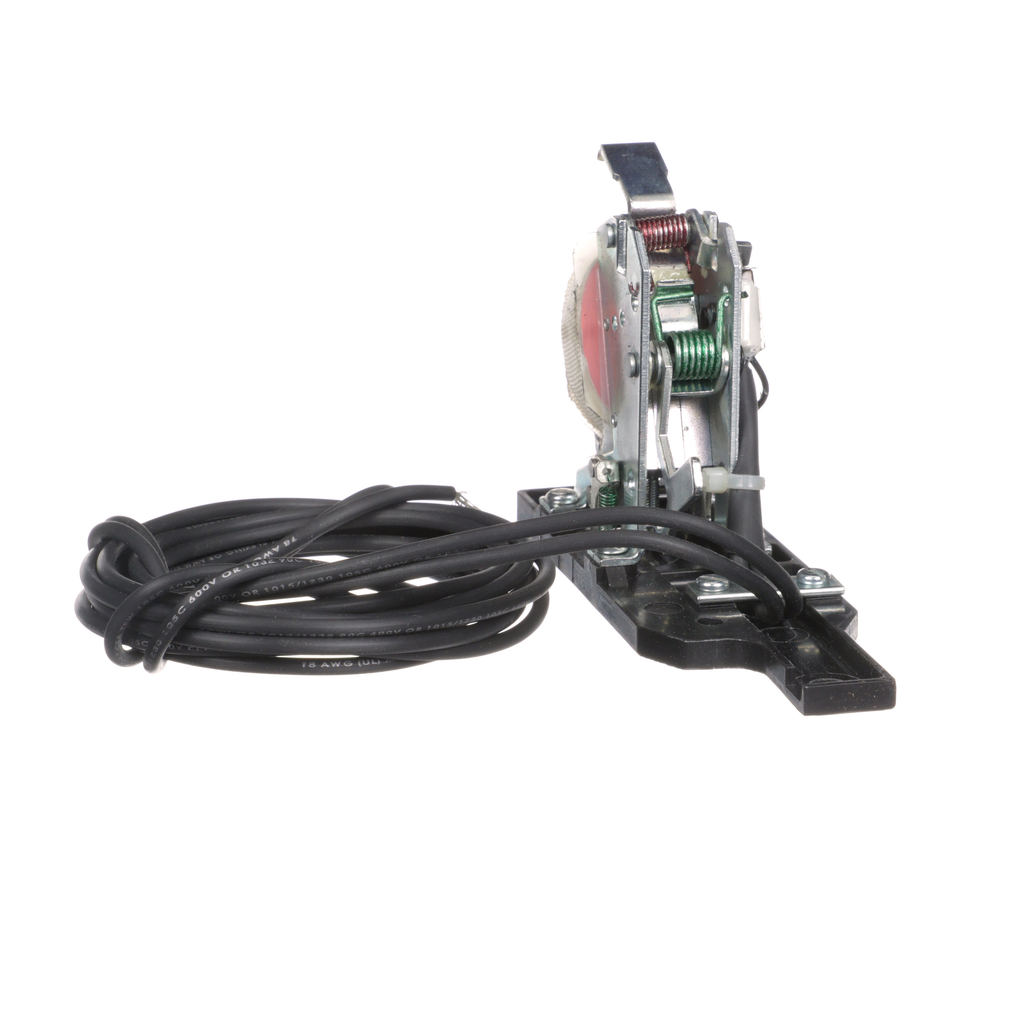

LA11021
Circuit breaker accessory, PowerPacT LA/LH/Q4, shunt trip, 120 to 240VAC, 50/60Hz
LA11021 is a LA circuit breaker accessory shunt trip that has a voltage rating of 120-240 Vac. This accessory has a tightening torque of 0.7-1Nm. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Tightening Torque | 0.7-1 N.m |
| Type Of Installation | field installable |
| Mounting Mode | internal mounting |
| Poles Description | 2P or 3P |
| Protection Type | shunt trip protection |
| Location Of Connection | inside |
| Rated Voltage | 120-240 V AC |
| Country of Origin | Mexico |
| Range Of Product | PowerPact |
| Circuit Breaker Type | FA/FH/FC |
| Accessory / Separate Part Category | trip unit accessory |
| Device Application | tripping device |
| Circuit Breaker Name | FAL/FCL/FHL |
Documents
- Shunt Trip, Undervoltage Trip, and Auxiliary Switch Installation Instructions for LA/LH/Q2 Series 4 Circuit Breakers - 48040-745-04 (pdf)
- Power Distribution Connectors Installation for Circuit Breakers and Switches - 48040-929-04 (pdf)
- Spec Sheet
- Square D Legacy Circuit Breakers FA/FH/FC/FI, KA/KH/KC/KI, LA/LH/LC/LI, MA/MH, NA/NC, PA/PC and Q-Frame - 0601CT9101 (pdf)
