Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing

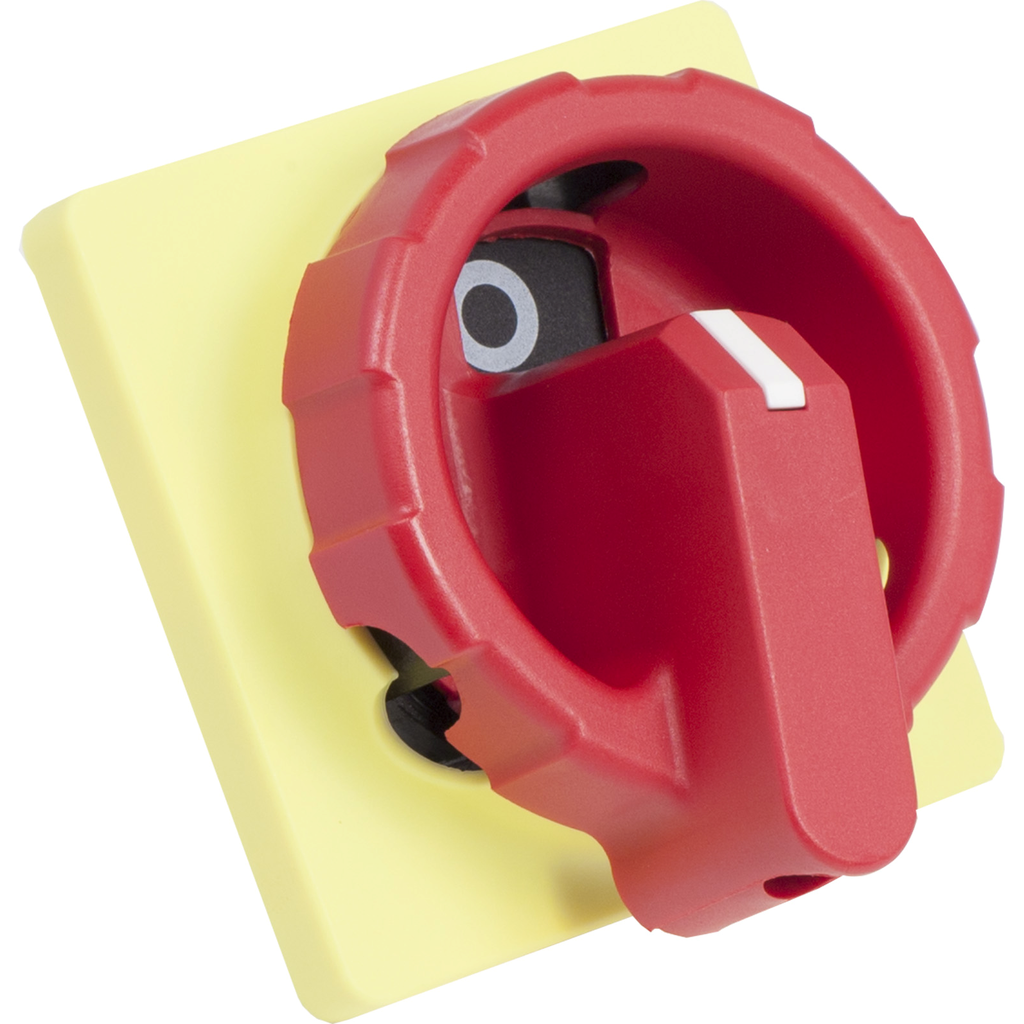

KCF2YZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For use with switch bodies V3-V4, it provides a red & yellow operator, a 60x60mm front plate, 4 screws fixing, for emergency stop usage. KCF2YZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For door mounting, it operates an enclosed switch body V3-V4 directly or through a shaft extension. It provides a red & yellow operator, a 60x60mm front plate and 4 screws fixing. It is intended for emergency stop usage, ensures NEMA type 12 / IP65 protection and is padlockable. Handle operator for door mounting for the operation of a Vario switch disconnector body V3-V4 inside a cabinet. Low profile red handle with 60x60mm yellow plate for emergency stop applications. NEMA type 12 handle operator / ensure IP65 protection. Padlockable with 3 padlocks.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ip Degree Of Protection | IP40 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Height | 60 mm |
| Handle Front Plate Colour | yellow |
| Fixing Mode | hole 5.5 mm |
| Marking | 0 - 1 |
| Base Dimension | 60 x 60 mm |
| Net Weight | 0.07 kg |
| Width | 60 mm |
| Country of Origin | Czechia |
| Width | 60 mm |
| Height | 60 mm |
| Weight | 0.07 kg |
| Handle Colour | red |
| Product Or Component Type | rotary handle |
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | KCF2 |
