Handles and front plates,TeSys Control,red handle,yellow front,1 padlocking,fixing by Ø22.5

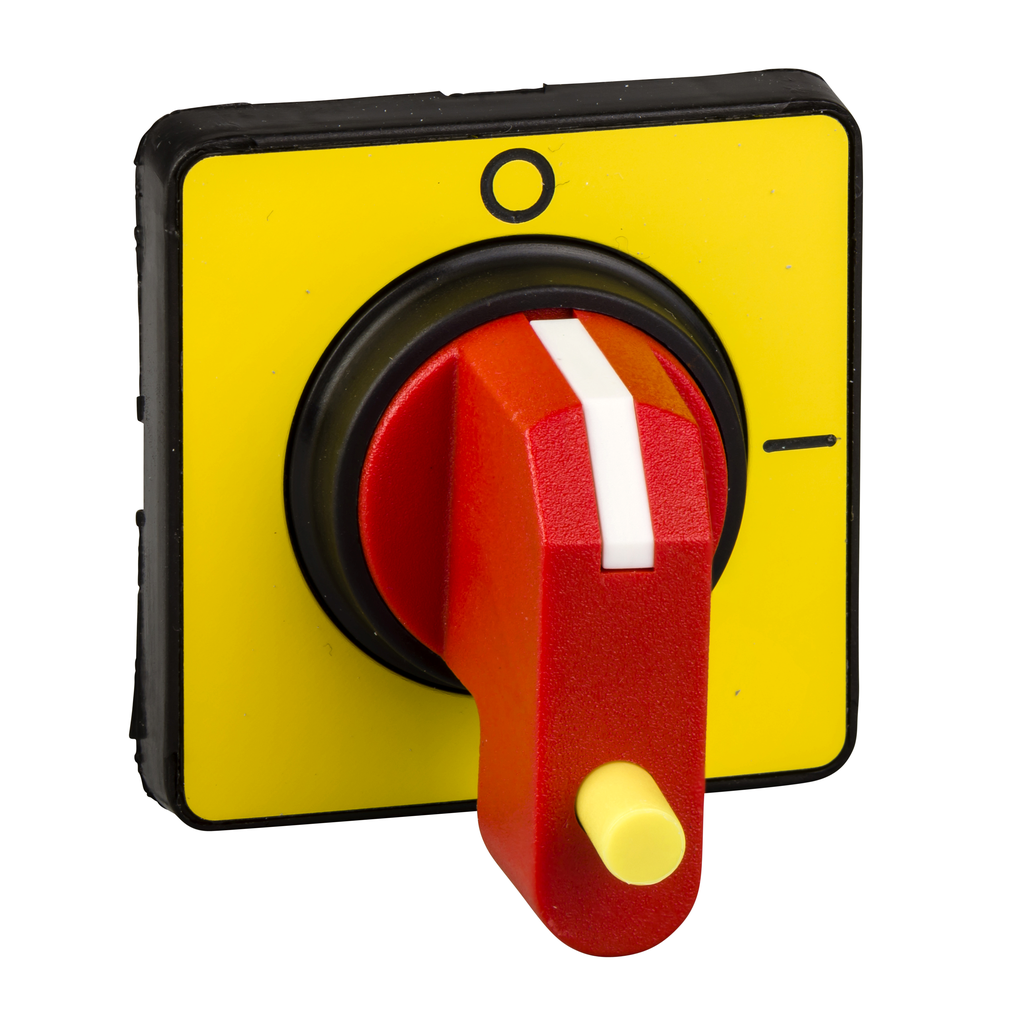

KCC1YZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For use with switch bodies VN12-VN20 and V02-V2, it provides a red & yellow operator, a 45x45mm front plate, single fixing, for emergency stop usage. KCC1YZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For door mounting, it operates an enclosed switch body VN12-VN20 or V02-V2 directly or through a shaft extension. It provides a red & yellow operator, a 45x45mm front plate and single fixing. It is intended for emergency stop usage, ensures NEMA type 12 / IP65 protection and is padlockable. Handle operator for door mounting for the operation of a Vario switch disconnector body VN12-VN20 and V02-V2 inside a cabinet. red handle with 45x45mm yellow plate for emergency stop applications. NEMA type 12 handle operator / ensure IP65 protection. Padlockable with 1 padlock.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ip Degree Of Protection | IP65 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Rotary Handle Padlocking | 1 padlock 4-6 mm |
| Height | 45 mm |
| Handle Front Plate Colour | yellow |
| Fixing Mode | hole 22.5 mm |
| Marking | 0 - 1 |
| Base Dimension | 45 x 45 mm |
| Net Weight | 0.05 kg |
| Width | 45 mm |
| Country of Origin | United States |
| Width | 45 mm |
| Height | 45 mm |
| Weight | 0.05 kg |
| Handle Colour | red |
| Product Or Component Type | rotary handle |
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | KCC1 |
