KCC1LZ - Handles and front plates,TeSys Control,red handle,yellow front,without padlocking,fixing by Ø22.5

KCC1LZ

Handles and front plates,TeSys Control,red handle,yellow front,without padlocking,fixing by Ø22.5

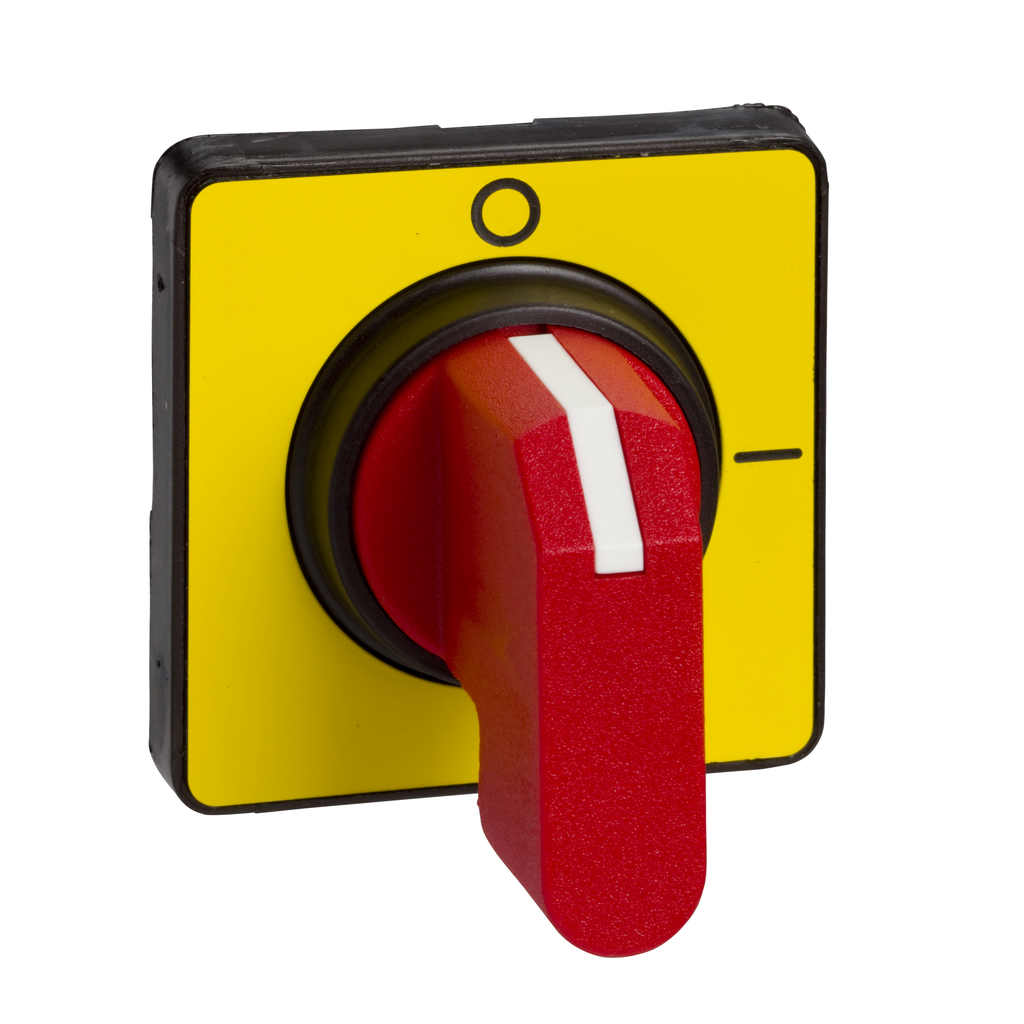

KCC1LZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a red not padlockable handle with a yellow 45x45mm front plate for mounting on door with a central fixing. It operates VN12, VN20, and V02 to V2 switch bodies directly or through a shaft extension. Intended for main and emergency stop usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with a central hole fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ip Degree Of Protection	IP65
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2211006
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	N/A
Eu Rohs Directive	Compliant
Rotary Handle Padlocking	without
Height	45 mm
Handle Front Plate Colour	yellow
Fixing Mode	hole 22.5 mm
Marking	0 - 1
Base Dimension	45 x 45 mm
Net Weight	0.05 kg
Width	45 mm
Country of Origin	Czechia
Width	45 mm
Height	45 mm
Weight	0.05 kg
Handle Colour	red
Product Or Component Type	rotary handle
Range	TeSys
Product Compatibility	VN20 VN12 V02...V2
Device Short Name	KCC1

Handles and front plates,TeSys Control,red handle,yellow front,without padlocking,fixing by Ø22.5
