KAXZ1S141

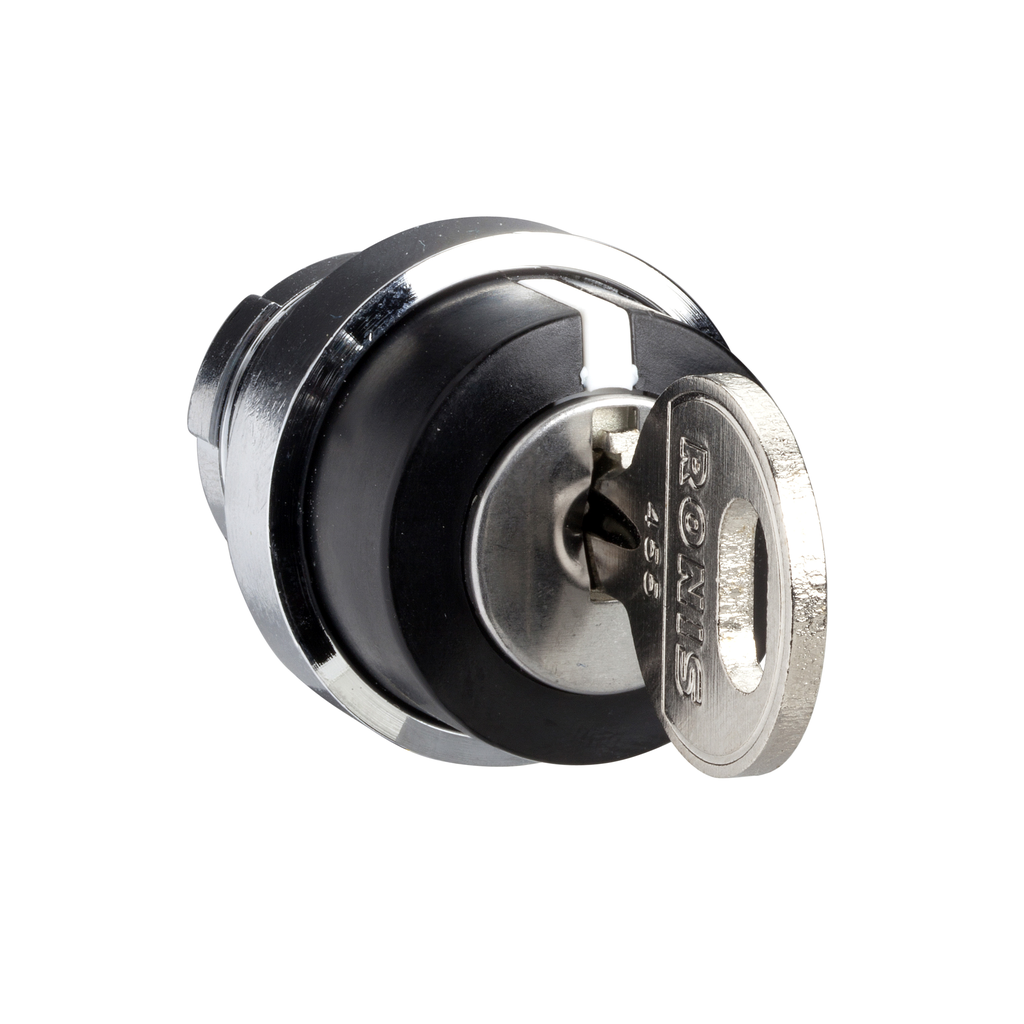

Cam switch operating head, Harmony K, 22mm, metal, circular 29mm, key operated 45 degree, Ronis 455
Specifications
| Ambient Air Temperature For Operation | -25-55 °C |
|---|---|
| Vibration Resistance | 5 gn 10-150 Hz)IEC 68-2-6 |
| Shock Resistance | 30 gn IEC 68-2-27 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Net Weight | 0.065 kg |
| Cad Overall Height | 29 mm |
| Mechanical Durability | 1000000 cycles |
| Compatibility Code | KAX |
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 21 mm |
| Country of Origin | Mexico |
| Width | 29 mm |
| Height | 29 mm |
| Weight | 0.065 kg |
| Range Of Product | Harmony Series K |
| Presentation Of Legend | with mat black |
| Product Or Component Type | cam switch operating head |
| Component Name | KAX |
| Type Of Operator | key key 455 |
| Switching Angle | 45 ° |
| Product Compatibility | front mounting bodies 12 and 20 A Ø 22 mm hole |
| Cam Switch Head Type | with bezel Ø 28.5 mm, metal |
| Rotary Handle Padlocking | without |
