KAD1PZ
Handles and front plates,TeSys Control,black handle,black front,1-3 padlocking,fixing by Ø22.5

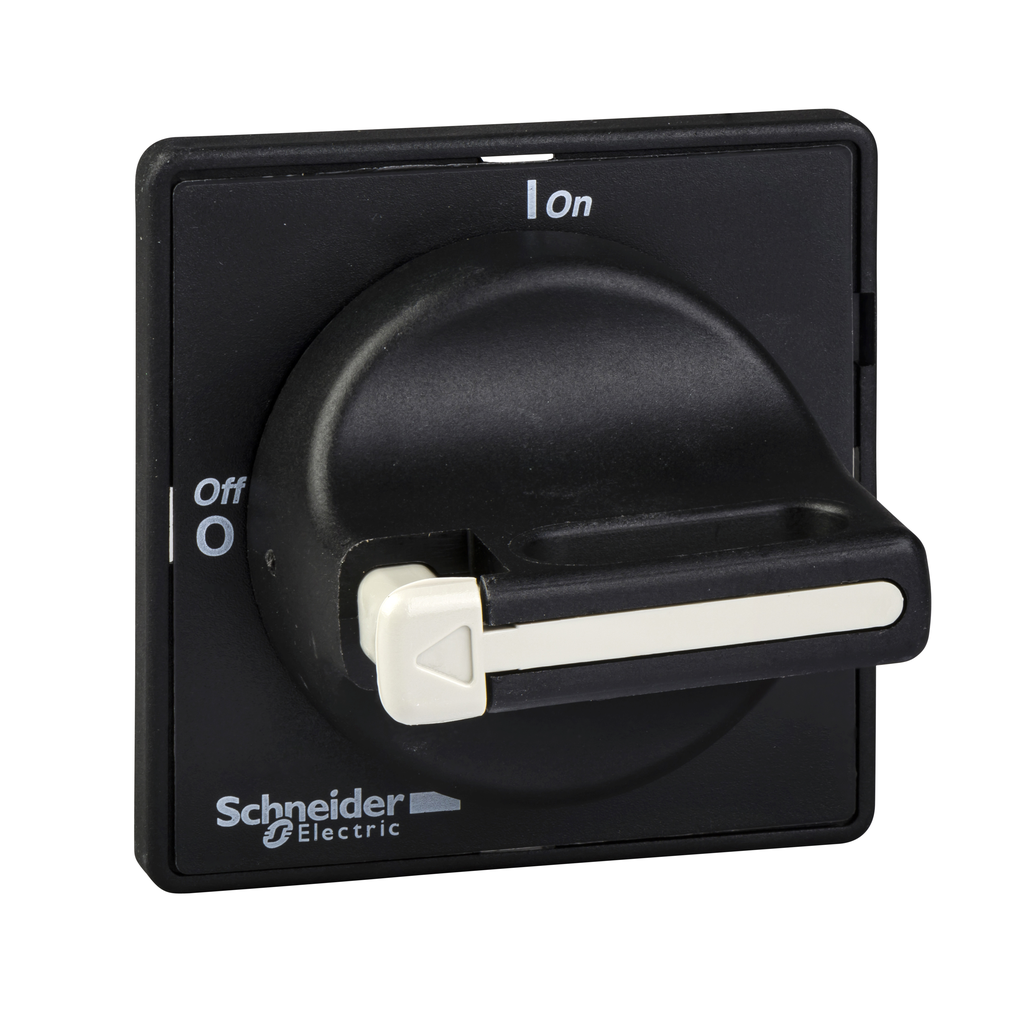

KAD1PZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a black padlockable handle with a black 60x60mm front plate for mounting on door with a central fixing. It operates VN12, VN20, and V02 to V2 switch bodies directly or through a shaft extension. Intended for main switch usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with a central hole fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ip Degree Of Protection | IP65 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Height | 60 mm |
| Handle Front Plate Colour | black |
| Fixing Mode | hole 22.5 mm |
| Marking | 0 - 1 |
| Base Dimension | 60 x 60 mm |
| Net Weight | 0.082 kg |
| Width | 60 mm |
| Country of Origin | United States |
| Width | 60 mm |
| Height | 60 mm |
| Weight | 0.082 kg |
| Handle Colour | black |
| Product Or Component Type | rotary handle |
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | KAD1 |
