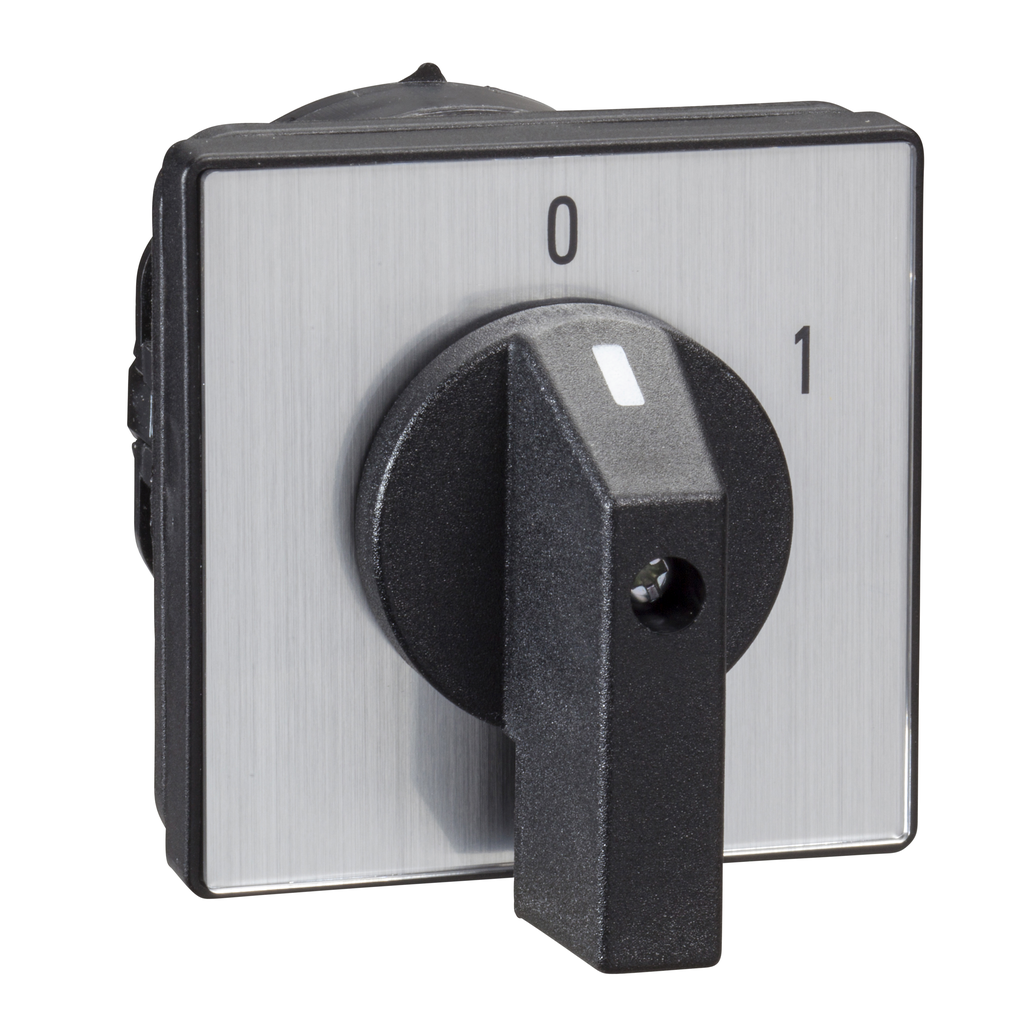

K30B001UP - Cam switch, Harmony K, front mounting, plastic, 1 pole,position 0, 60 degree, 32A, 64x64mm, marked 1/0/2

K30B001UP

Cam switch, Harmony K, front mounting, plastic, 1 pole,position 0, 60 degree, 32A, 64x64mm, marked 1/0/2

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-25-55 °C
Product Certifications	cULus 120 V 2 hp 1 phase cULus 240 V 5 hp 1 phase cULus 240 V 5 hp 3 phase cULus 480 V 20 hp 3 phase
Standards	IEC 60947-3
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class II IEC 60536 class II NF C 20-030
Protective Treatment	TC
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Short-Circuit Protection	50 A cartridge fuse gG
Net Weight	0.17 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV EN 947-1 6 kV IEC 947-1
Cad Overall Height	64 mm
Switching Angle	60 °
Electrical Connection	captive screw clamp terminals flexible 2 x 4 mm² captive screw clamp terminals solid 2 x 6 mm²
Short-Circuit Current	5000 A
[Ui] Rated Insulation Voltage	690 V 3)IEC 60947-1
Positive Opening	with
Tightening Torque	1.2 N.m
Contact Operation	slow-break
Mechanical Durability	300000 cycles
Switching Capacity In Ma	11000 mA DC 120 V 2 inductive 50 ms) 11000 mA DC 180 V 3 inductive 50 ms) 11000 mA DC 60 V 1 inductive 50 ms) 1200 mA DC 220 V 1 resistive 1 ms) 1200 mA DC 440 V 2 resistive 1 ms) 1200 mA DC 660 V 3 resistive 1 ms) 16000 mA DC 140 V 3 inductive 50 ms) 16000 mA DC 48 V 1 inductive 50 ms) 16000 mA DC 95 V 2 inductive 50 ms) 23000 mA DC 120 V 2 resistive 1 ms) 23000 mA DC 180 V 3 resistive 1 ms) 23000 mA DC 60 V 1 resistive 1 ms) 25000 mA DC 30 V 1 inductive 50 ms) 25000 mA DC 60 V 2 inductive 50 ms) 25000 mA DC 90 V 3 inductive 50 ms) 3200 mA DC 110 V 1 inductive 50 ms) 3200 mA DC 220 V 2 inductive 50 ms) 3200 mA DC 330 V 3 inductive 50 ms) 32000 mA DC 140 V 3 resistive 1 ms) 32000 mA DC 24 V 1 inductive 50 ms) 32000 mA DC 24 V 1 resistive 1 ms) 32000 mA DC 48 V 1 resistive 1 ms) 32000 mA DC 48 V 2 inductive 50 ms) 32000 mA DC 48 V 2 resistive 1 ms) 32000 mA DC 70 V 3 inductive 50 ms) 32000 mA DC 70 V 3 resistive 1 ms) 32000 mA DC 95 V 2 resistive 1 ms) 400 mA DC 440 V 1 resistive 1 ms) 400 mA DC 660 V 2 resistive 1 ms) 6500 mA DC 110 V 1 resistive 1 ms) 6500 mA DC 220 V 2 resistive 1 ms) 6500 mA DC 330 V 3 resistive 1 ms)
Cad Overall Width	64 mm
Cad Overall Depth	81 mm
Country of Origin	Austria
Width	64 mm
Height	64 mm
Weight	0.17 kg
Range Of Product	Harmony K
Fixing Mode	4 holes
Presentation Of Legend	with metallic, 1 - 0 - 2 black
Ip Degree Of Protection	IP40 conforming to IEC 60529
Product Or Component Type	complete cam switch
[Ith] Conventional Free Air Thermal Current	32 A
Cam Switch Function	changeover switch
Component Name	K30
Type Of Operator	Black handle
Mounting Location	front
Switching Positions	left: 0° - 300° right: 0° - 60°
Cam Switch Head Type	with front plate 64 x 64 mm
Poles Description	1P
Rotary Handle Padlocking	without
Return	without
Off Position	with Off position

Cam switch, Harmony K, front mounting, plastic, 1 pole,position 0, 60 degree, 32A, 64x64mm, marked 1/0/2
