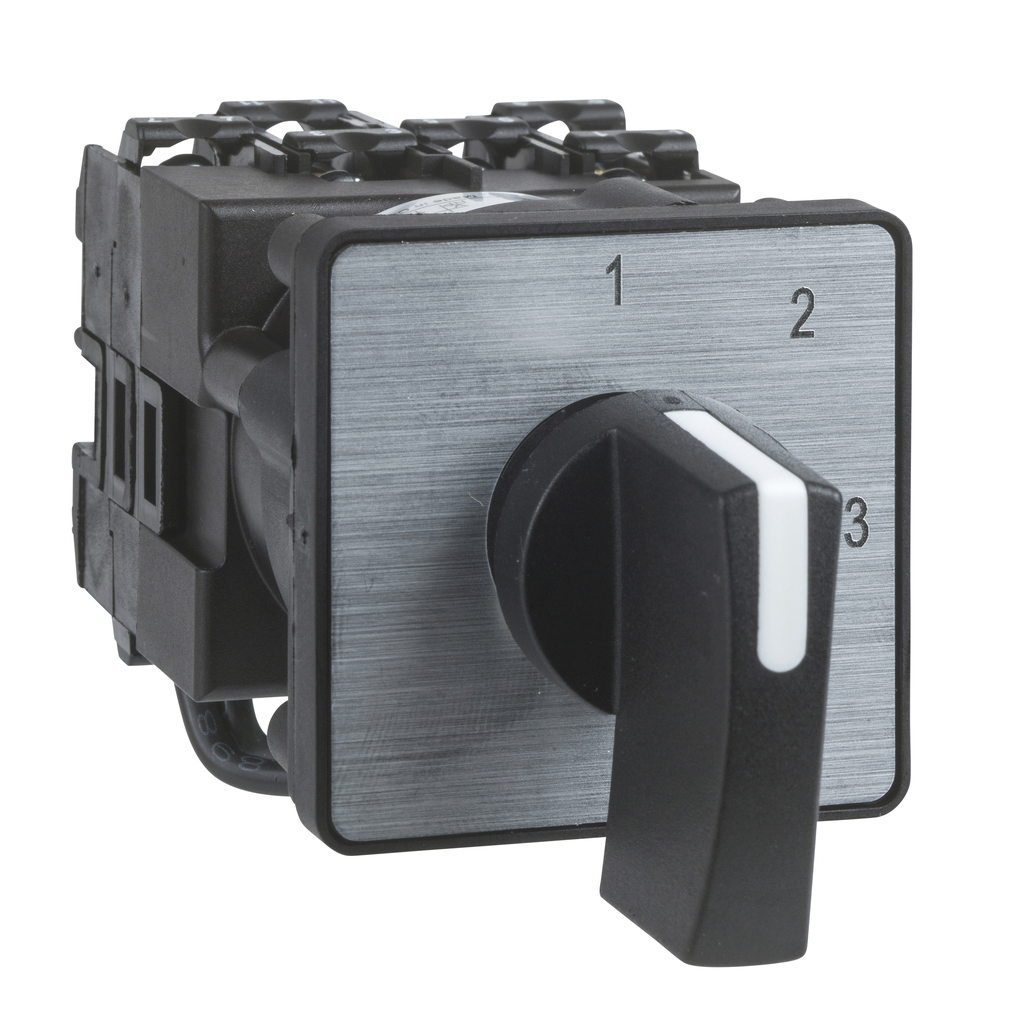

K1B006TLH – Cam switch, Harmony K, multifixing, plastic, 1 pole, 3 positions, position 0, spring return, 45°, 12A, 45x45mm, metallic legend, black handle 35mm
K1B006TLH
Cam switch, Harmony K, multifixing, plastic, 1 pole, 3 positions, position 0, spring return, 45°, 12A, 45x45mm, metallic legend, black handle 35mm

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation -25-55 °C
Vibration Resistance 5 gn 10-150 Hz)IEC 68-2-6
Shock Resistance 30 gn IEC 68-2-27
Product Certifications
  • CSA 240 V 3 hp 3 phase 2
  • UL 240 V 0.33 hp 1 phase 2
  • CSA 240 V 1 hp 1 phase
  • UL 240 V 1 hp 3 phase
Standards
  • IEC 60947-3 power circuit
  • IEC 60947-5-1 control circuit
  • CENELEC EN 50013
Ambient Air Temperature For Storage -40-70 °C
Electrical Shock Protection Class
  • class II IEC 536
  • class II NF C 20-030
Protective Treatment TC
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP071103EN_V1
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile N/A
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Short-Circuit Protection 16 A cartridge fuse gG
[Ithe] Conventional Enclosed Thermal Current 10 A
Net Weight 0.115 kg
[Uimp] Rated Impulse Withstand Voltage
  • 4 kV in isolating function
  • 6 kV IEC 60947-1
Cad Overall Height 45 mm
Switching Angle 45 °
Electrical Connection
  • captive screw clamp terminals flexible 2 x 1.5 mm²
  • captive screw clamp terminals solid 1 x 2.5 mm²
Electrical Durability
  • 1000000 cycles AC-15
  • 1000000 cycles AC-21
  • 500000 cycles AC-23
  • 500000 cycles AC-3
Maximum Operating Rate
  • 2.5 cyc/mn AC-21
  • 2.5 cyc/mn AC-23
  • 2.5 cyc/mn AC-3
  • 8.333 cyc/mn AC-15
Short-Circuit Current 10000 A
[Ui] Rated Insulation Voltage 690 V 3)IEC 60947-1
Positive Opening with
Contact Operation slow-break
Mechanical Durability 1000000 cycles
Cad Overall Width 45 mm
Cad Overall Depth 77 mm
Rated Operational Power In W
  • 10500 W AC-21, 500...660 V 3 phase IEC 60947-3
  • 1100 W AC-3, 230 V 3 phase IEC 60947-3
  • 1500 W AC-23A, 230 V 3 phase IEC 60947-3
  • 1500 W AC-3, 400 V 1 phase IEC 60947-3
  • 1500 W AC-3, 400 V 3 phase IEC 60947-3
  • 1500 W AC-3, 500 V 3 phase IEC 60947-3
  • 1500 W AC-3, 690 V 3 phase IEC 60947-3
  • 2200 W AC-23A, 400 V 3 phase IEC 60947-3
  • 2200 W AC-23A, 500 V 3 phase IEC 60947-3
  • 2200 W AC-23A, 690 V 3 phase IEC 60947-3
  • 4800 W AC-21, 230 V 3 phase IEC 60947-3
  • 600 W AC-3, 230 V 1 phase IEC 60947-3
  • 8300 W AC-21, 400 V 3 phase IEC 60947-3
[Ie] Rated Operational Current Ac
  • 1.8 A 690 V AC-3 3 phase IEC 60947-3
  • 2.8 A 500 V AC-3 3 phase IEC 60947-3
  • 2.8 A 690 V AC-23A 3 phase IEC 60947-3
  • 3.3 A 400 V AC-3 3 phase IEC 60947-3
  • 3.8 A 500 V AC-23A 3 phase IEC 60947-3
  • 4.6 A 230 V AC-3 3 phase IEC 60947-3
  • 4.8 A 400 V AC-23A 3 phase IEC 60947-3
  • 5.6 A 230 V AC-23A 3 phase IEC 60947-3
  • 1 A 500 V AC-15 IEC 60947-5-1
  • 2 A 400 V AC-15 IEC 60947-5-1
  • 3 A 230 V AC-15 IEC 60947-5-1
Country of Origin Czechia
Width 45 mm
Height 45 mm
Weight 0.115 kg
Range Of Product Harmony K
Fixing Mode multifixing
Presentation Of Legend with metallic, 2 - 0 - 1 black
Ip Degree Of Protection IP40 conforming to IEC 60529
Product Or Component Type complete cam switch
[Ith] Conventional Free Air Thermal Current 12 A
Cam Switch Function reversing switch
Component Name K1
Type Of Operator Black handle 35 mm
Switching Positions
  • right: 0° - 45°
  • left: 0° - 315°
Cam Switch Head Type with front plate 45 x 45 mm
Product Mounting front mounting
Poles Description 1P
Rotary Handle Padlocking without
Return
  • spring return from 45° to 0°
  • spring return from 315° to 0°
Off Position with Off position
