K10F003UCH

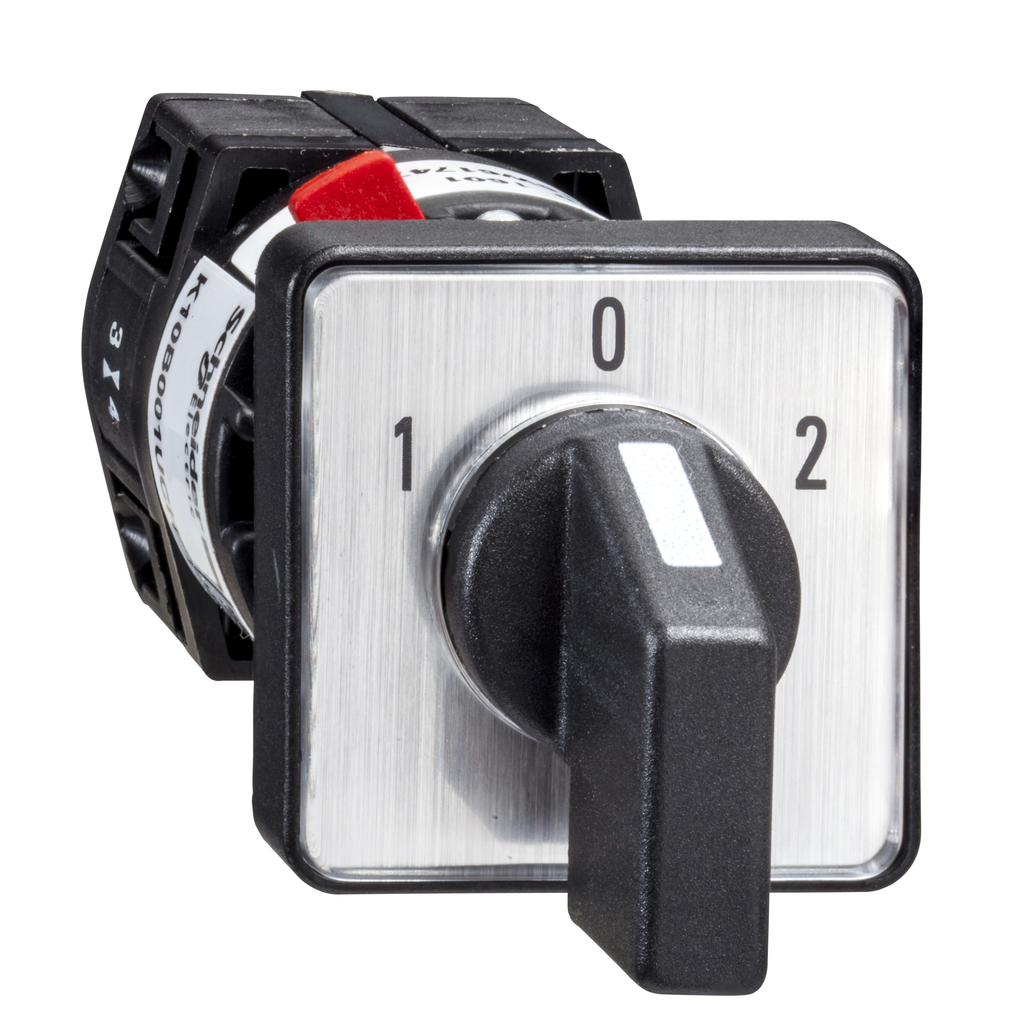

Complete cam switch, Harmony K1, K2, cam changeover switch, 16mm or 22mm , plastic, 3 poles, position 0, 60degrees, 10A, 30x30mm, marked 1 0 2
This Harmony K10 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -20-55 °C |
|---|---|
| Product Certifications | cULus |
| Standards |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Net Weight | 0.055 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Cad Overall Height | 30 mm |
| Switching Angle | 60 ° |
| Electrical Connection | captive screw clamp terminals 2 x 1.5 mm² |
| Electrical Durability | 100000000 cycles |
| [Ui] Rated Insulation Voltage | 440 V 3)IEC 60947-1 |
| Contact Operation | slow-break |
| Mechanical Durability | 1000000 cycles |
| Rated Power In Hp |
|
| [Ie] Rated Operational Current Dc |
|
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 100 mm |
| Rated Operational Power In W |
|
| [Ie] Rated Operational Current Ac |
|
| Country of Origin | Austria |
| Width | 30 mm |
| Height | 30 mm |
| Weight | 0.055 kg |
| Range Of Product | Harmony K |
| Fixing Mode | Ø 16 or 22 mm hole |
| Presentation Of Legend | with metallic, 1 - 0 - 2 black |
| Ip Degree Of Protection |
|
| Product Or Component Type | complete cam switch |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Cam Switch Function | changeover switch |
| Component Name | K10 |
| Type Of Operator | Black handle |
| Switching Positions |
|
| Cam Switch Head Type | with front plate 30 x 30 mm |
| Product Mounting | front mounting |
| Poles Description | 3P |
| Rotary Handle Padlocking | without |
| Return | without |
| Off Position | with Off position |
