ISM71072

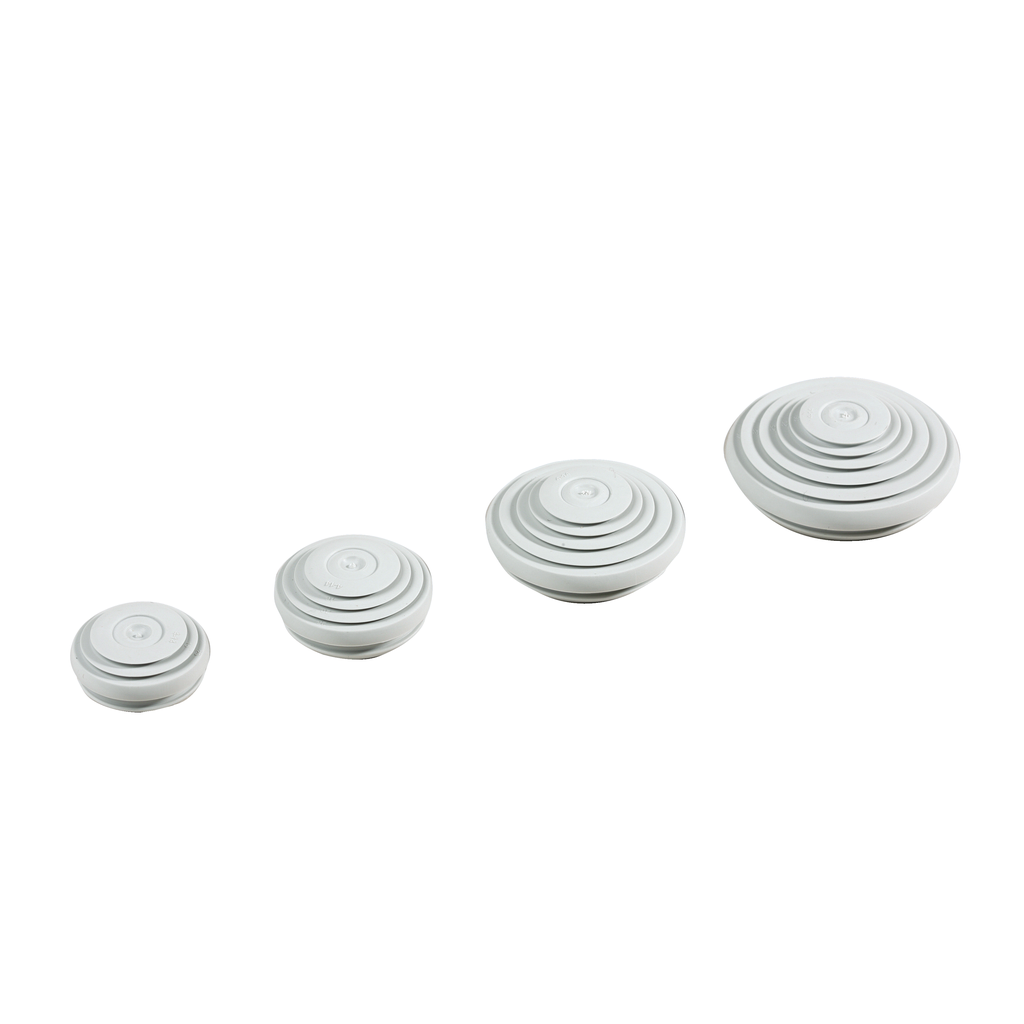

Mureva BOX - grommet - grey - diameter 4 to 25
Mureva Flexible grommet ISM71072 (set of 10 pieces), diameter 25 mm, suitable for unthreaded holes (drilling diameter 29 mm) For fast installation by using either EVA (easy valve access) membrane entry, i.e. direct entry of rigid cables from 4 to 14 mm2, or stepped entry, by removing a step of the desired diameter for cables or conduits from 14 mm2 up to 25 mm2 Material: SBS (styrene butadiene styrene) This grommet is an accessory to Mureva junction boxes to enforce IP55 protection against dust and humidity
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -25-40 °C |
|---|---|
| Ip Degree Of Protection | IP55 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2310026EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Sustainable Packaging | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Accessory / Separate Part Category | cabling accessory |
| Drilling Diameter | 29 mm |
| Material | SBS (styrene butadiene styrene) |
| Cable Outer Diameter | 4-25 mm |
| Country of Origin | France |
| Colour Tint | grey RAL 7035) |
| Product Or Component Type | grommet |
| Range | Mureva |
| Quantity Per Set | 10 pieces |
