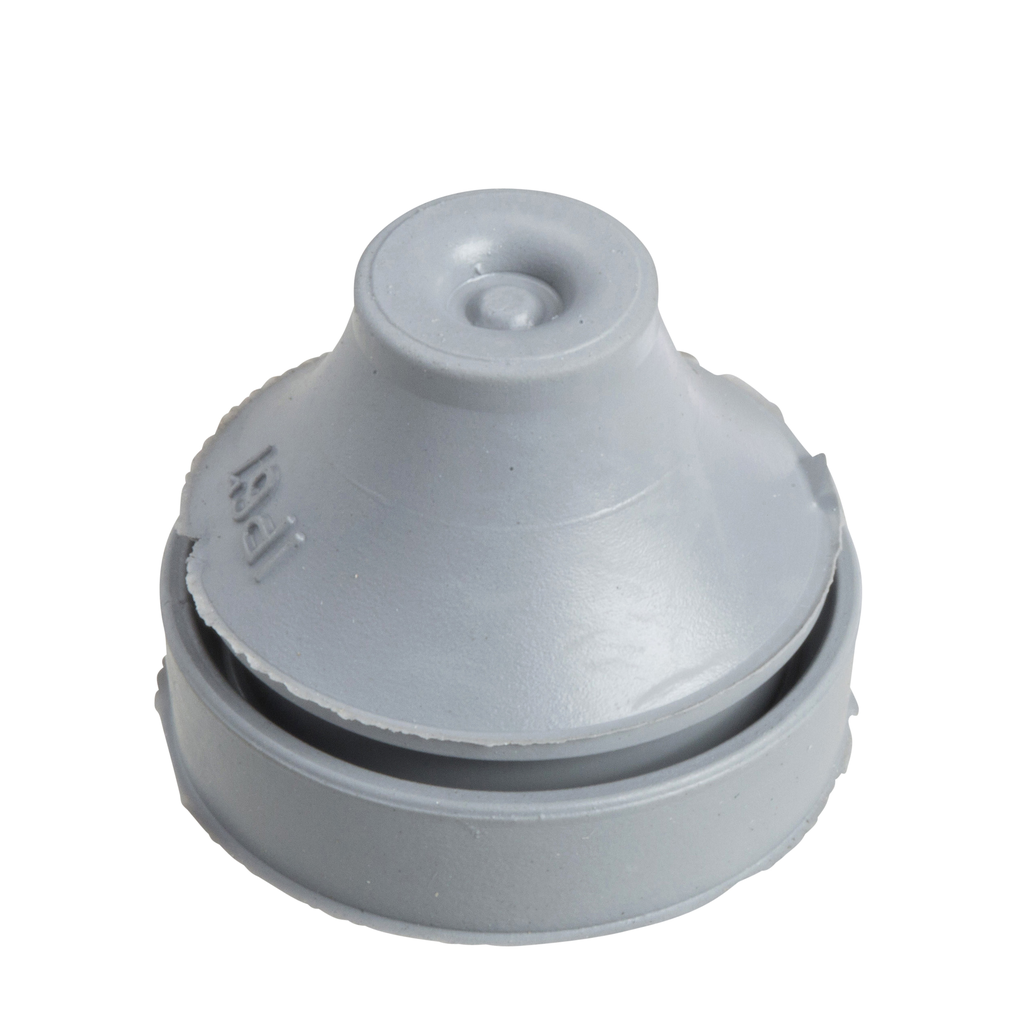

Thorsman TET - grommet - grey - ISO M16 - diameter 5 to 7
TET grommets are available in two different materials, Ethylene/propylene (EPDM) rubber and Chloroprene (CR) rubber. Both materials are weather and temperature resistant and can be used both indoors and outdoors. These grommets are intended for completely dust and watertight sealing of cables, conduits and pipes, for example in cars, aeroplanes, ships, electrical and hydraulic equipment. This device is a grommet and is grey in color. The grommet is made of EPDM, making it resistant and durable. This device is sold in set of 50. The IP rating of this device is IP67 which is very high. This grommet is SVHC (substances of very high concern) free. As a green premium product, this device is environmentally friendly. It is mercury free.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ip Degree Of Protection | IP67 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP080501EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Iso Thread | M16 |
| Height | 20 mm |
| Length | 25 mm |
| Drilling Diameter | 16 mm |
| Material | EPDM |
| Width | 20 mm |
| Cable Outer Diameter | 5-7 mm |
| Country of Origin | France |
| Length | 25 mm |
| Width | 20 mm |
| Height | 20 mm |
| Range Of Product | Thorsman TET |
| Colour Tint | grey |
| Product Or Component Type | grommet |
| Quantity Per Set | set of 50 |
Documents
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- installation materials - LSB03386EN+(web) (pdf)
- Installation materials Thorsman - LSB02788EN+(web) (pdf)
- Universal Enclosures / Cable Entries / Selection Guide - UEMKG005EN_(web) (pdf)
