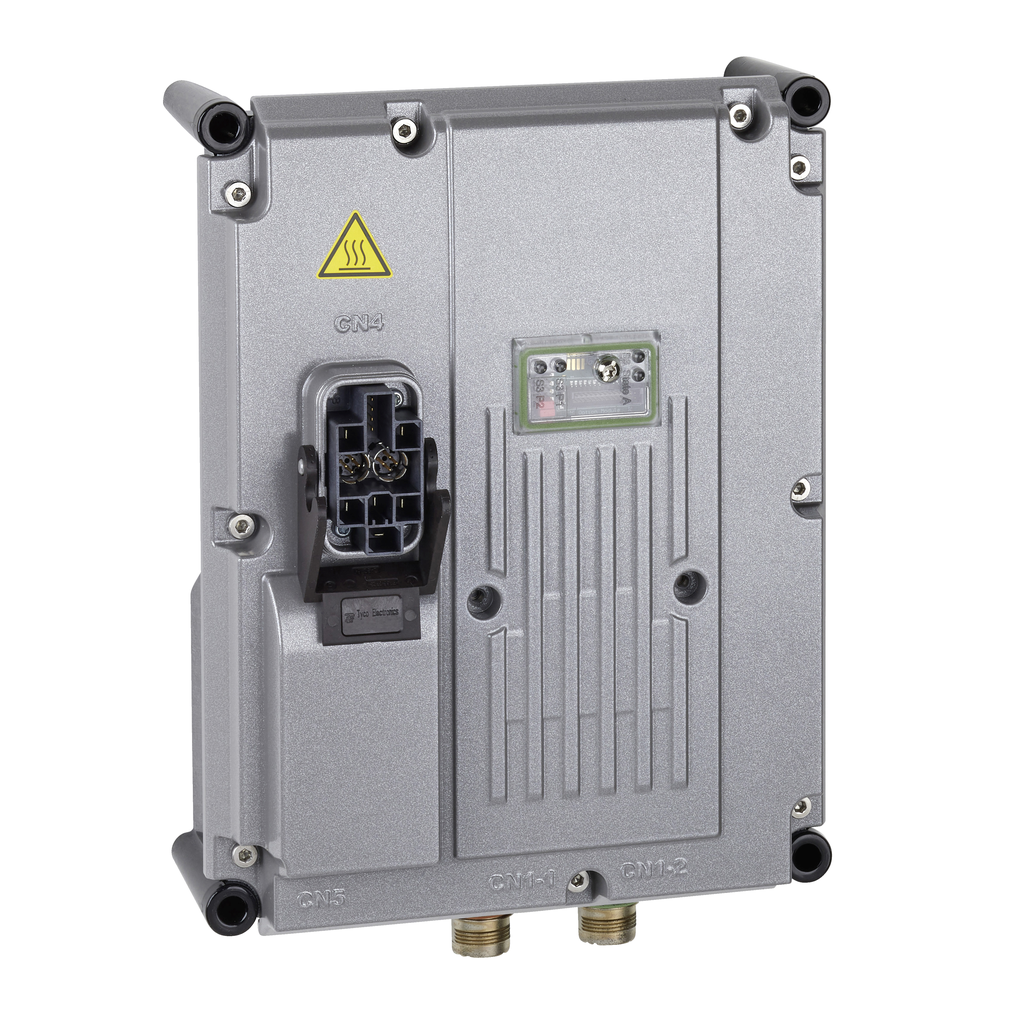

ILM62DDD24C1000
Detached single servo drive 6A continous current for cold plate, 24A peak, IP65
Specifications
| Number Of Mounting Holes | 4 |
|---|---|
| Type Of Cooling |
|
| Product Compatibility |
|
| Safety Function | STO (safe torque off) |
| Line Rated Current |
|
| Net Weight | 2.45 kg |
| [Us] Rated Supply Voltage | 250...700 V |
| Country of Origin | United States |
| Weight | 2.45 kg |
| Range Of Product | PacDrive 3 |
| Product Or Component Type | detached servo drive |
| Device Short Name | ILD |
| Eu Rohs Directive | Under investigation |
| Product Certifications |
|
| Directives |
|
| Standards |
|
| Ip Degree Of Protection | IP65 |
