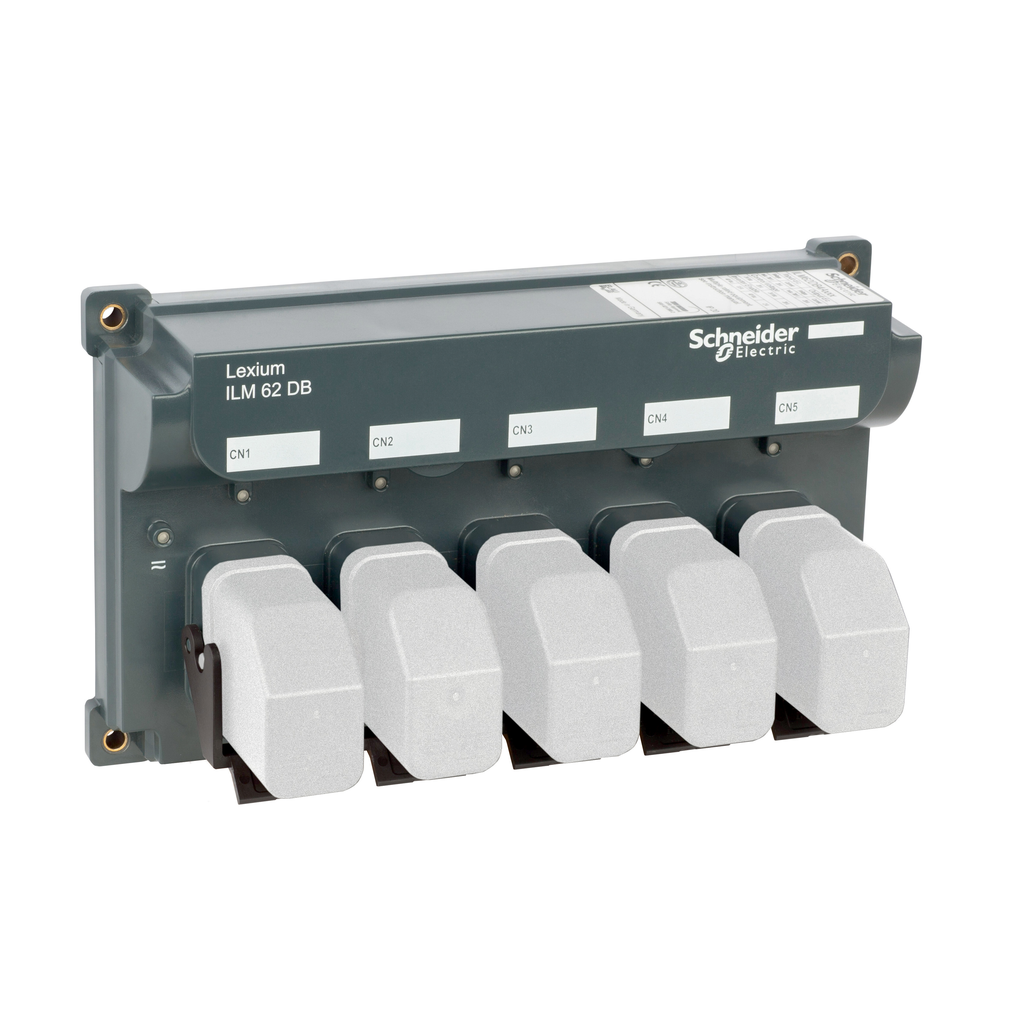

distribution box with 1 input and 4 outputs
This product is part of the PacDrive 3 range, an offer of distribution boxes for Lexium 62 ILM daisy chains. This distribution block features 1 input and 4 outputs. The distribution block with SERCOS III physical interface at 100Mbit/s transmission rate. It is a distribution box with rated supply voltage of 250V to 700V, control circuit voltage of 24V DC and 20A input current. It is an IP65 rated product. The box is made of polycarbonate. Its dimensions are 230mm (width) x 151.4mm (depth) x 94mm (height). It weighs 0.85kg. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PacDrive 3 |
|---|---|
| Product Or Component Type | distribution block |
| Device Short Name | ILM |
| Warranty | 18 months |
| Input Current | 20 A |
| Height | 94 mm |
| Overvoltage Category | class 3 IEC 61800-5-1 |
| Physical Interface | SERCOS III 100 Mbit/s |
| Type Of Cooling | natural convection |
| [Uc] Control Circuit Voltage | 24 V DC - 20...25 %) |
| Width | 230 mm |
| Depth | 151.4 mm |
| Material | polycarbonate |
| Net Weight | 0.85 kg |
| [Us] Rated Supply Voltage | 250...700 V |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1407007EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407007EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Pollution Degree | 2 IEC 61800-5-1 |
| Ip Degree Of Protection | IP65 |
