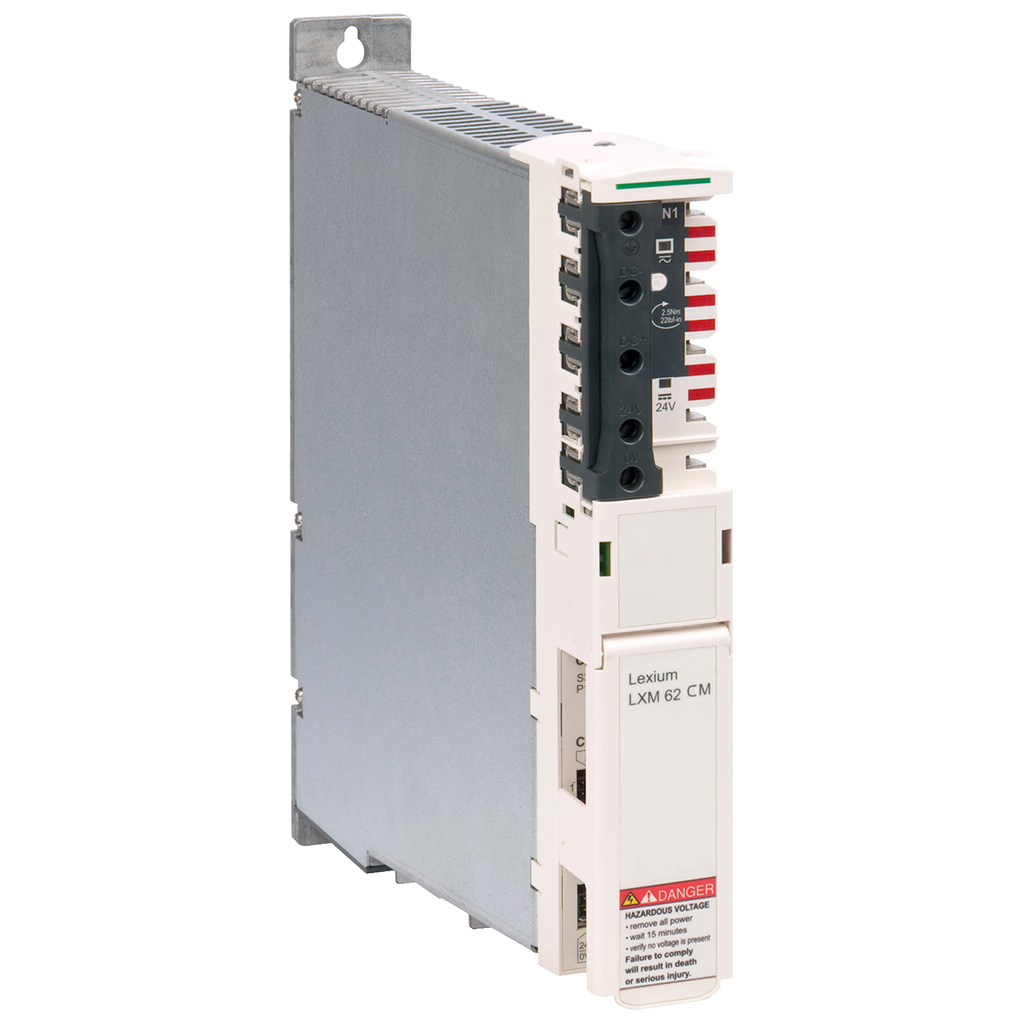

connection module to LXM62PD84A11000
This product is part of the PacDrive 3 range, an offer of connection accessories. This connection module features SERCOS III interface. It is an integrated servo motor with a supply voltage of 250V to 700V and an input current of 20A. It is an IP20 rated product. Its dimensions are 44.5mm (width) x 270mm (depth) x 310mm (height). It weighs 3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PacDrive 3 |
|---|---|
| Accessory / Separate Part Category | connection accessories |
| Product Or Component Type | connector module |
| Device Short Name | ILM |
| Warranty | 18 months |
| Height | 310 mm |
| Output Current | 20 A |
| [Uc] Control Circuit Voltage | 24 V DC - 20...25 %) |
| Net Weight | 3 kg |
| [Us] Rated Supply Voltage | 250...700 V |
| Input Current | 20 A |
| Control Threshold Overvoltage | 860 V |
| Physical Interface | SERCOS III |
| Overvoltage Category | class 3 IEC 61800-5-1 |
| Type Of Cooling | natural convection |
| Peak Output Current | 40 A |
| Width | 44.5 mm |
| Depth | 270 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1407008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Pollution Degree | 2 IEC 61800-5-1 |
| Ip Degree Of Protection | IP20 |
