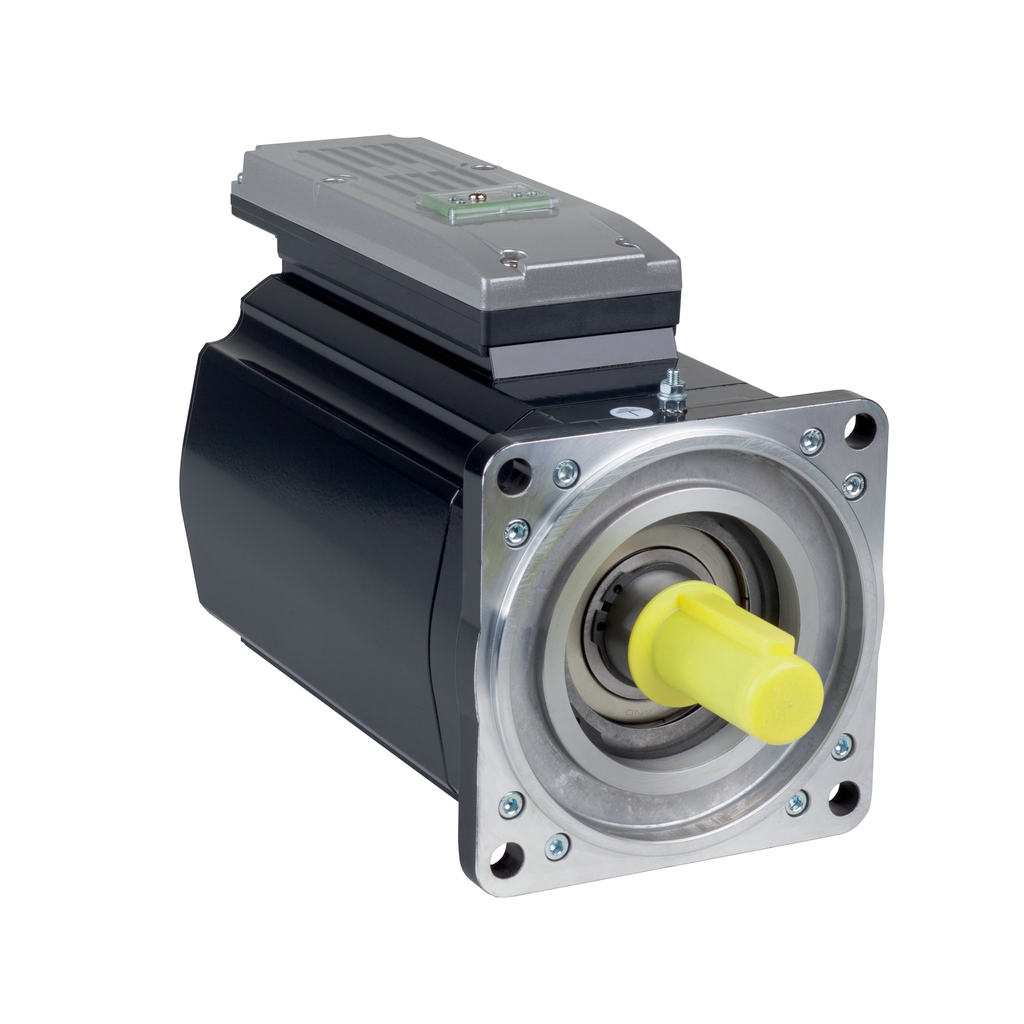

ILM1402P12A0000
integrated servo motor- 12.5 Nm- 2000 rpm- keyed shaft- multiturn- without brake
Specifications
| Ip Degree Of Protection | IP54 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409011EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409011EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Circle Diameter Of The Mounting Holes | 165 mm |
| Maximum Radial Force Fr |
|
| Mounting Support | international standard flange |
| Nominal Torque | 9.1 N.m |
| Number Of Motor Stacks | 2 |
| Rotor Inertia | 12.68 kg.cm² |
| Number Of Motor Poles | 10 |
| Back Emf Constant | 173 V/krpm 20 °C |
| Continuous Stall Torque | 12.5 N.m |
| Maximum Axial Force Fa | 0.2 x Fr |
| Centring Collar Depth | 3.5 mm |
| Holding Brake | without |
| Speed Feedback Resolution | 128 periods |
| Second Shaft | without second shaft end |
| Shaft Length | 50 mm |
| Nominal Output Power | 1910 W |
| Length | 309 mm |
| Net Weight | 17.2 kg |
| Centring Collar Diameter | 130 mm |
| Stator Inductance |
|
| Maximum Current Irms | 24 A |
| Motor Flange Size | 140 mm |
| [Us] Rated Supply Voltage | 250...700 V |
| Number Of Mounting Holes | 4 |
| Shaft Diameter | 24 mm |
| Key Width | 40 mm |
| Mounting Holes Diameter | 11 mm |
| Type Of Cooling | natural convection |
| Shaft End | keyed |
| Nominal Speed | 2000 rpm |
| Peak Stall Torque | 55 N.m |
| Feedback Type | absolute multiturn SinCos Hiperface |
| Stator Resistance |
|
| Line Rated Current | 3.7 A |
| Continuous Stall Current | 4.8 A |
| Torque Constant | 2.6 N.m/A 120 °C |
| Country of Origin | United States |
| Length | 309 mm |
| Width | 40 mm |
| Weight | 17.2 kg |
| Range Of Product | PacDrive 3 |
| Product Or Component Type | servo motor integrated drive |
| Device Short Name | ILM |
