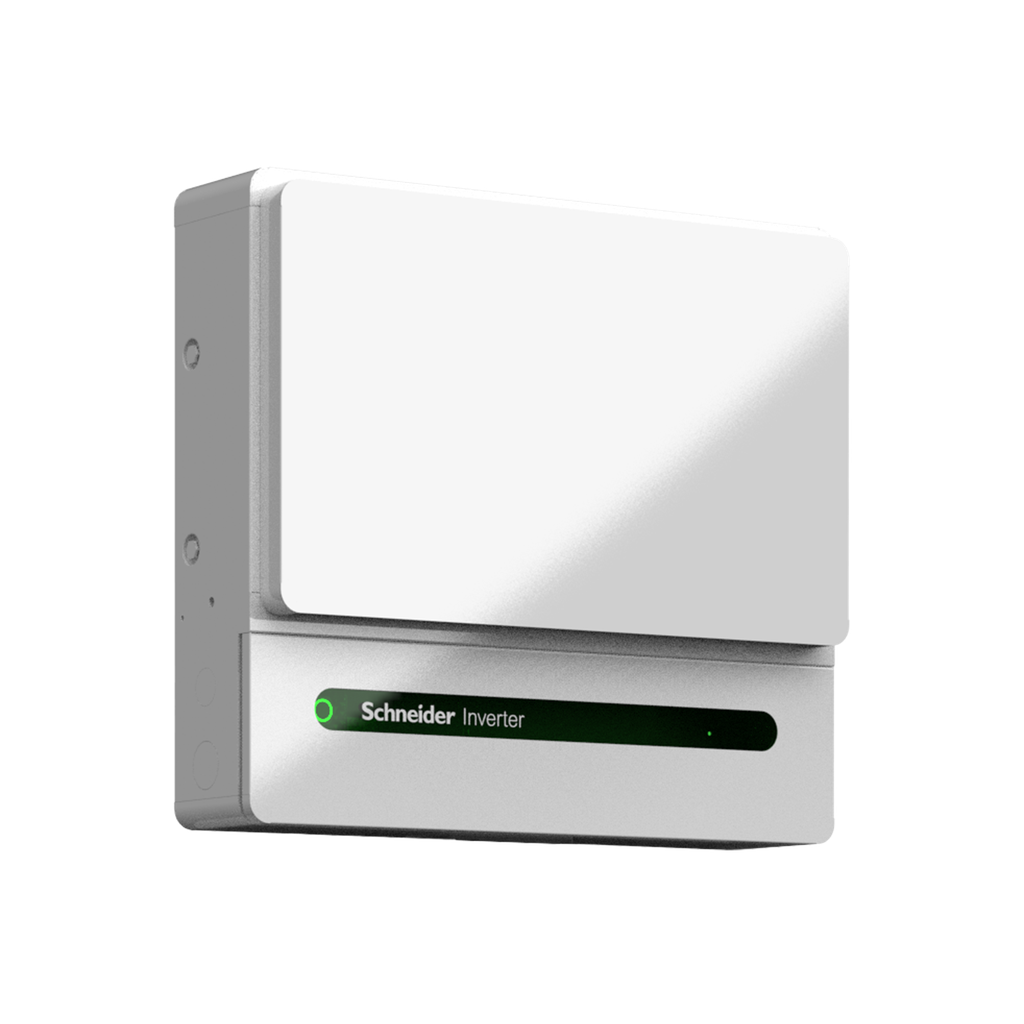

HY8K1NA1 - Inverter, 7.7kW for Residential Solar and Battery

HY8K1NA1

Inverter, 7.7kW for Residential Solar and Battery

Part of Schneider Home, the Inverter is used to connect the Boost battery and solar panels to the home and grid. The Inverter has DC ports for Boost and solar, wit 3 battery inputs and 4 MPPT inputs for solar. The DC-coupling of solar and batteries allows for higher system efficiency when charging batteries from solar. When the Inverter is installed with Boost and a Schneider Backup Controller, the system automatically powers the home during a grid outage. Homeowners can monitor, control, and automate their entire home energy with the Schneider Home app. For installers, our easy-to-use commissioning app will save them time, and the installer portal web app will provide ongoing system monitoring and troubleshooting remotely. With the Schneider Inverter, systems can be configured with solar and batteries, solar-only, or batteries-only.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Communication Network Type	Ethernet Wi-Fi
Height	22.4 in
Output Current	32 A
Device Mounting	wall mounted
Net Weight	102 lb(US)
Width	25.6 in
Depth	6.5 in
Country of Origin	Taiwan
Width	25.6 in
Height	22.4 in
Weight	102 lbs
Product Or Component Type	inverter
Phase	1 phase
Rohs Exemption Information	Yes
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
Ambient Air Temperature For Operation	-40-140 °F -40-60 °C
Standards	UL
Nema Degree Of Protection	Type 4X
