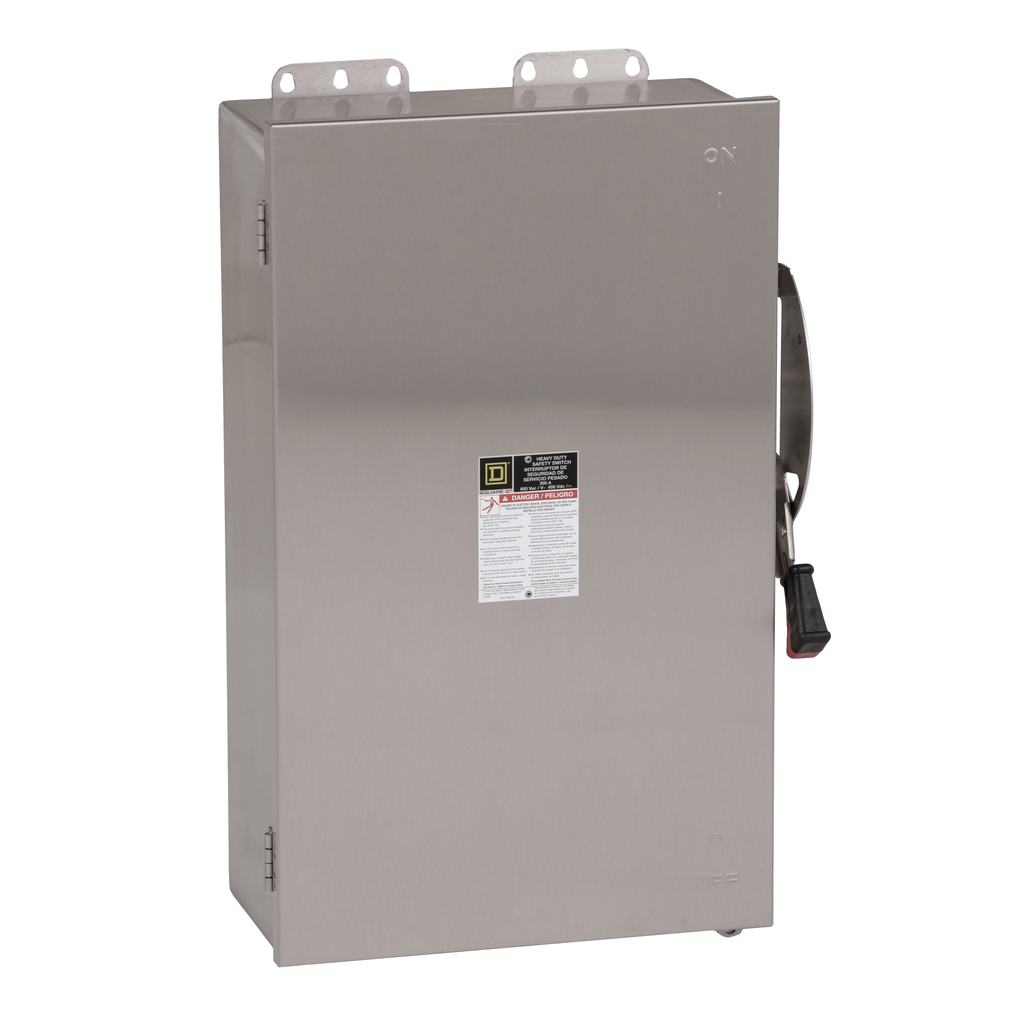

HU664DS – Safety switch, heavy duty, non fusible, 200A, 6 pole, 150hp, 600VAC/DC, NEMA 4, 4X, 5, 304 steel
HU664DS
Safety switch, heavy duty, non fusible, 200A, 6 pole, 150hp, 600VAC/DC, NEMA 4, 4X, 5, 304 steel
Specifications
Product Certifications UL listed file E2875
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2305005EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile N/A
Sustainable Packaging Yes
Eu Rohs Directive Compliant
Height 29 in
Device Mounting surface
Tightening Torque 275-275 lbf.in 13.3-127 mm² (AWG 6...250 kcmil)
Net Weight 32.55 kg
Electrical Connection lugs
Awg Gauge AWG 6...250 kcmil copper or aluminium
Wiring Configuration 6-wire
Width 25.25 in
Depth 8.88 in
Country of Origin United States
Width 25.25 in
Height 29 in
Weight 32.55 kg
Disconnector Device Type non-fusible disconnect
Product Or Component Type Single Throw Safety Switch
Phase 3 phase
Series Name heavy duty
Nema Degree Of Protection NEMA 4/4X/5 stainless steel 304
Line Rated Current 200 A
Device Composition none
Device Application heavy application
Number Of Poles 6
[Ue] Rated Operational Voltage 600 V AC
