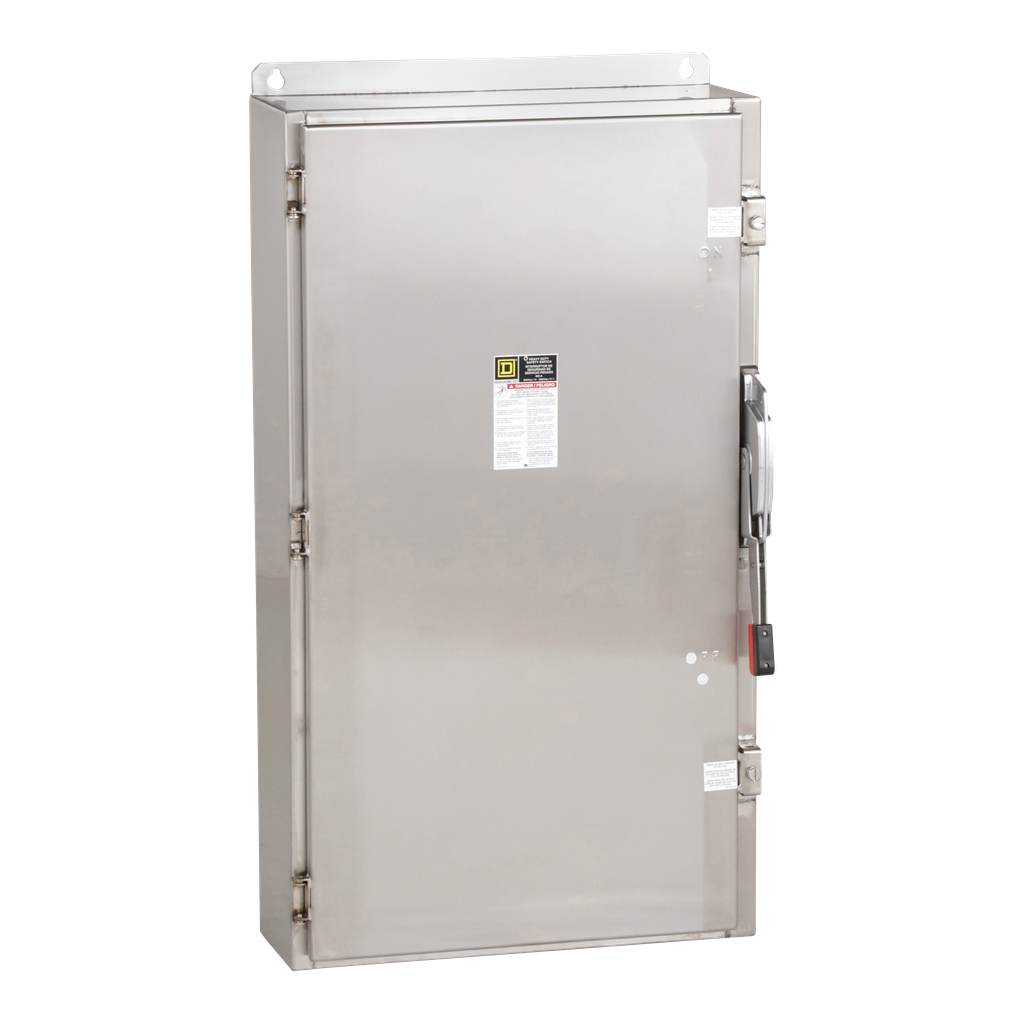

HU366DS - Safety switch, heavy duty, non fusible, 600A, 3 pole, 500hp, 600VAC/DC, NEMA 4, 4X, 5, 304 steel

HU366DS

Add to Quote Catalogue

Product Certifications	UL listed file E2875
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404026EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Height	46.25 in
Device Mounting	surface
Tightening Torque	375-375 lbf.in (AWG 3/0...500 kcmil)
Net Weight	70.3 kg
Electrical Connection	lugs
Awg Gauge	AWG 3/0...500 kcmil copper or aluminium
Wiring Configuration	3-wire
Width	26.25 in
Depth	10.13 in
Country of Origin	United States
Width	26.25 in
Height	46.25 in
Weight	70.3 kg
Disconnector Device Type	non-fusible disconnect
Product Or Component Type	Single Throw Safety Switch
Phase	3 phase
Series Name	heavy duty
Nema Degree Of Protection	NEMA 4/4X/5 stainless steel 304
Line Rated Current	600 A
Device Composition	none
Device Application	heavy application
Number Of Poles	3
[Ue] Rated Operational Voltage	600 V AC/DC
