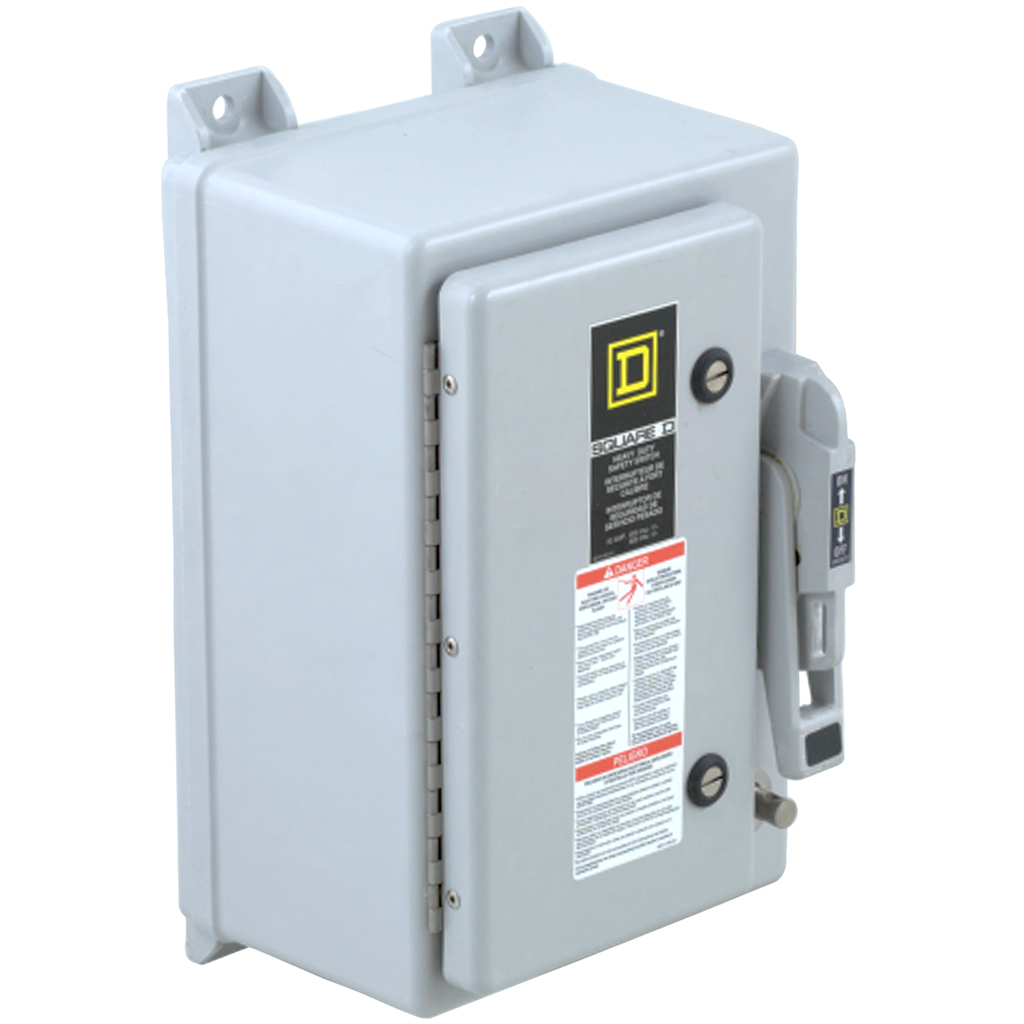

HU364DF
Safety switch, heavy duty, non fusible, 200A, 3 pole, 150HP, 600V AC/DC, NEMA 4X, fiberglass reinforced polyester
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL listed file E2875 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 26.3 in |
| Device Mounting | surface |
| Tightening Torque | 275-275 lbf.in 13.3-127 mm² (AWG 6...250 kcmil) |
| Net Weight | 40.37 kg |
| Electrical Connection | lugs |
| Awg Gauge | AWG 6...250 kcmil copper or aluminium |
| Wiring Configuration | 3-wire |
| Width | 31.3 in |
| Depth | 11.8 in |
| Country of Origin | United States |
| Width | 31.3 in |
| Height | 26.3 in |
| Weight | 40.37 kg |
| Disconnector Device Type | non-fusible disconnect |
| Product Or Component Type | Single Throw Safety Switch |
| Phase | 3 phase |
| Series Name | heavy duty |
| Nema Degree Of Protection | NEMA 4X fiberglass reinforced polyester |
| Line Rated Current | 200 A |
| Device Composition | none |
| Device Application | heavy application |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
