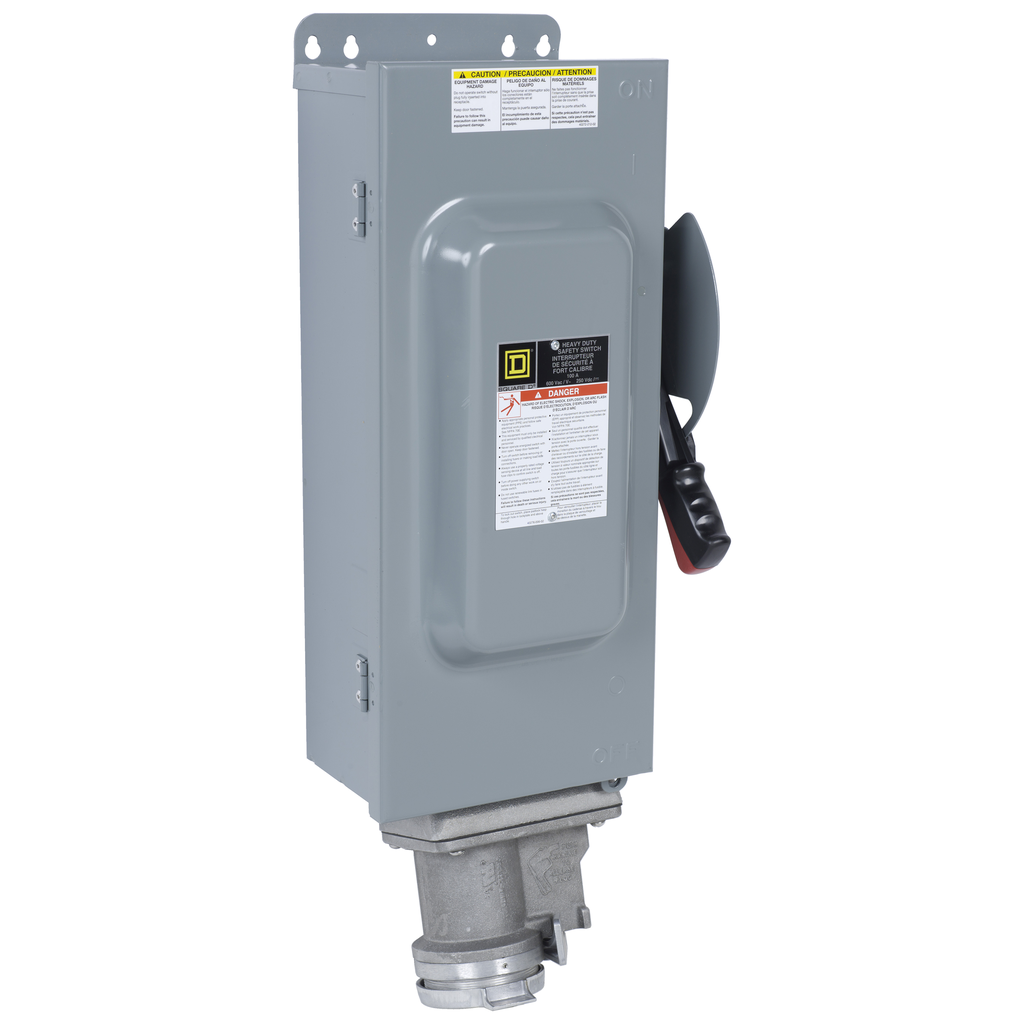

HU363AWA - Safety switch, heavy duty, non fusible, 100A, 600VAC, 600VDC, 3 poles, 100hp, NEMA 12K, Appleton Powertite receptacle

HU363AWA

Add to Quote Catalogue

Product Certifications	UL Listed
Warranty	18 months
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1304031
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Eu Rohs Directive	Compliant
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Height	20.5 in
Device Mounting	surface
Tightening Torque	50-50 lbf.in (AWG 3...AWG 1) 45-45 lbf.in (AWG 6...AWG 4) 40-40 lbf.in (AWG 8) 35-35 lbf.in (AWG 14...AWG 10)
Electrical Connection	receptacle
Awg Gauge	AWG 12...AWG 1/0 aluminium AWG 14...AWG 1/0 copper
Wiring Configuration	4-wire
Width	10.5 in
Depth	7 in
Country of Origin	United States
Width	10.5 in
Height	20.5 in
Disconnector Device Type	non-fusible disconnect switch
Nema Degree Of Protection	NEMA 12K
Line Rated Current	100 A
Product Or Component Type	Receptacle Switch
Phase	3 phase
Number Of Poles	3
[Ue] Rated Operational Voltage	600 V AC 250 V DC
Product Destination	plug ACP1034CD Appleton Powertite
