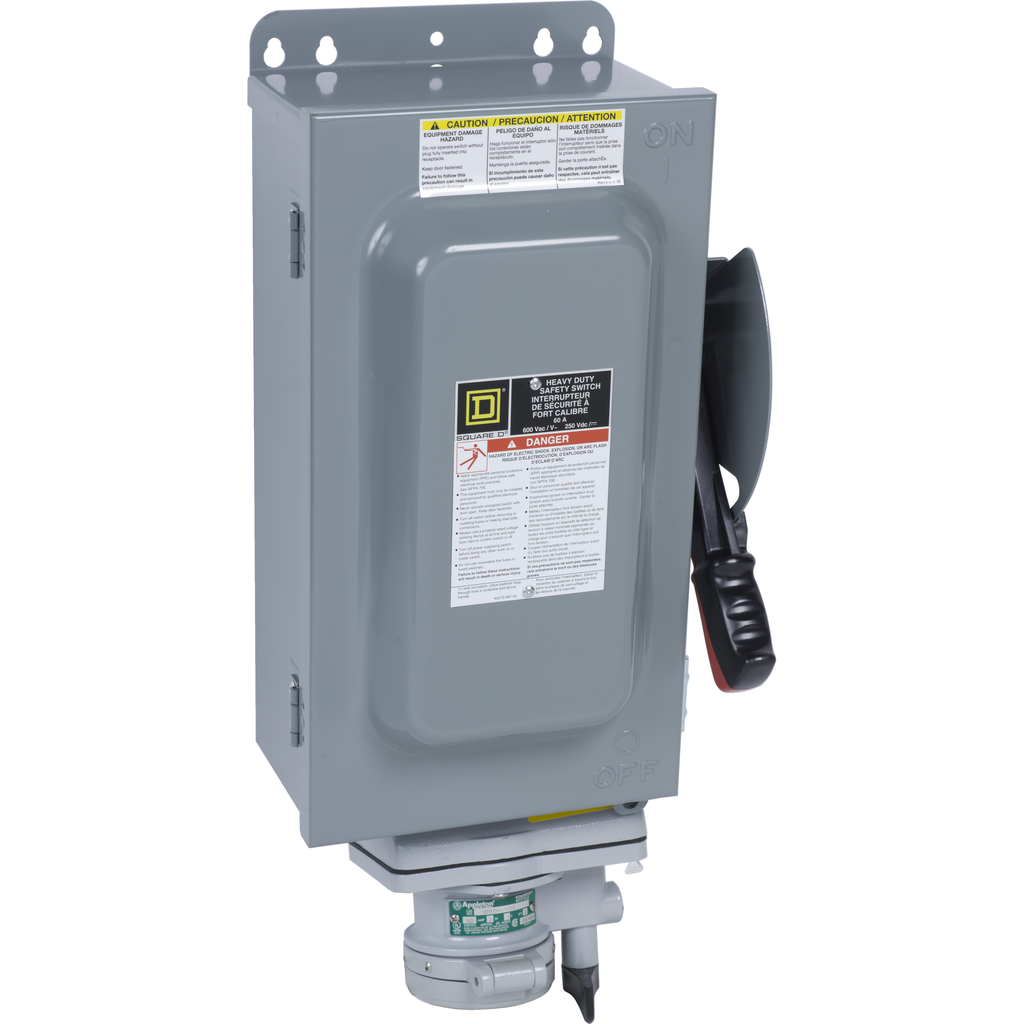

HU362WA - Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 1, Appleton Powertite receptacle

HU362WA

Add to Quote Catalogue

Product Certifications	UL Listed
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2305006EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	18.9 in
Device Mounting	surface
Tightening Torque	45-45 lbf.in (AWG 6...AWG 4) 40-40 lbf.in (AWG 8) 35-35 lbf.in (AWG 14...AWG 10)
Electrical Connection	receptacle
Awg Gauge	AWG 12...AWG 2 aluminium AWG 14...AWG 2 copper
Wiring Configuration	4-wire
Width	10.5 in
Depth	6.81 in
Country of Origin	United States
Width	10.5 in
Height	18.9 in
Disconnector Device Type	non-fusible disconnect switch
Product Or Component Type	Receptacle Switch
Phase	3 phase
Product Destination	plug ACP6034BC Appleton Powertite
Nema Degree Of Protection	NEMA 1
Line Rated Current	60 A
Number Of Poles	3
[Ue] Rated Operational Voltage	600 V AC 250 V DC
