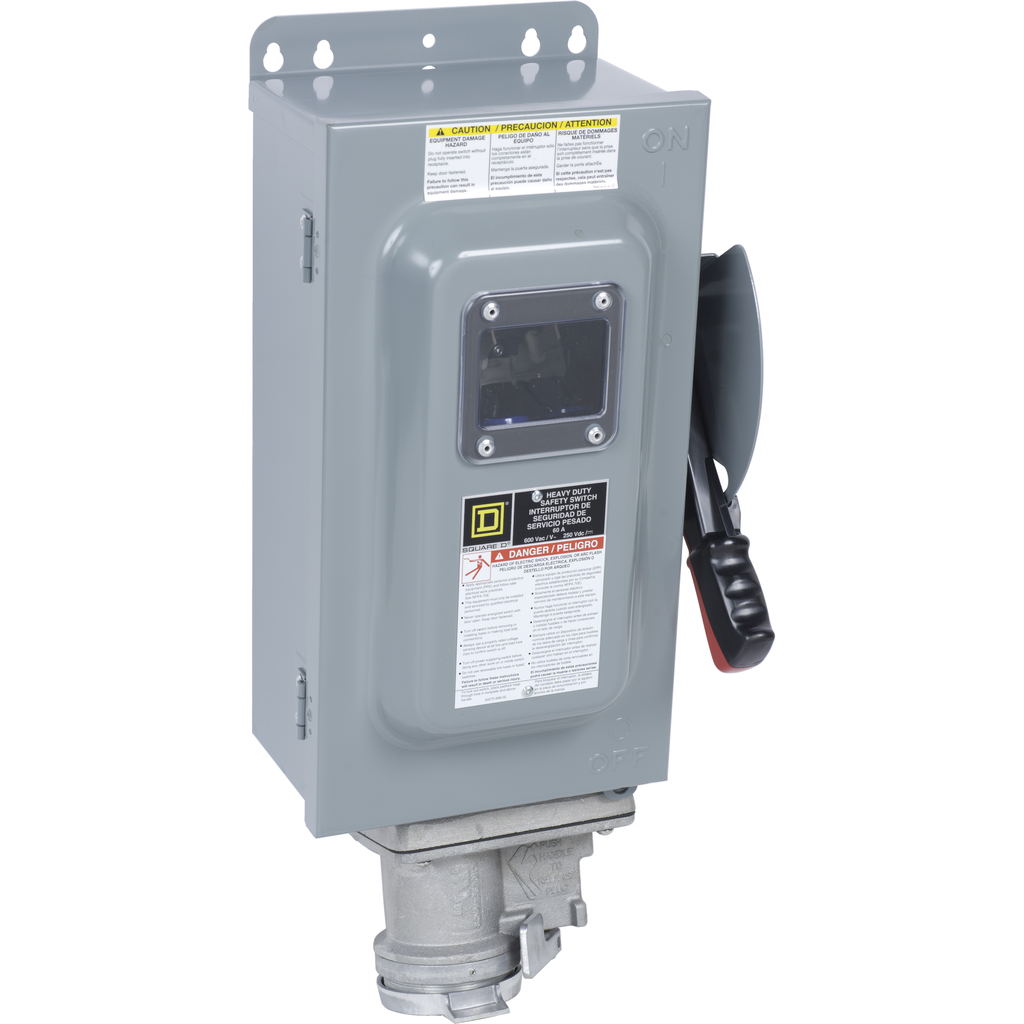

HU362AWCVW
Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 12K, Crouse-Hinds Arktite, viewing window
Specifications
| Product Certifications | UL Listed |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 16.5 in |
| Device Mounting | surface |
| Tightening Torque |
|
| Electrical Connection | receptacle |
| Awg Gauge |
|
| Wiring Configuration |
|
| Width | 10.5 in |
| Depth | 7 in |
| Country of Origin | United States |
| Width | 10.5 in |
| Height | 16.5 in |
| Disconnector Device Type | non-fusible disconnect |
| Product Or Component Type | Receptacle Switch |
| Phase | 3 phase |
| Product Destination | plug APJ6485 Crouse-Hinds Arktite |
| Nema Degree Of Protection | NEMA 12K |
| Line Rated Current | 60 A |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage |
|
