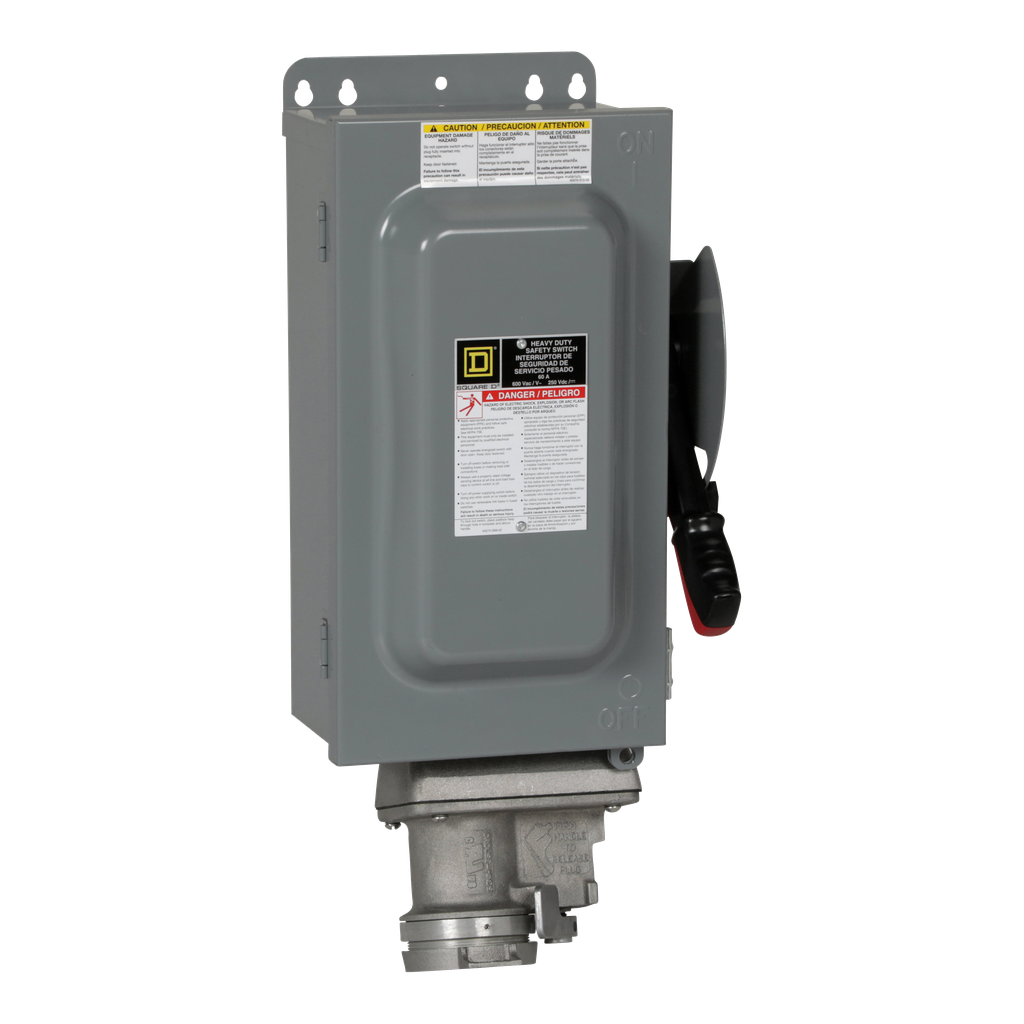

Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 12K, Crouse-Hinds Arktite
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable. These switches provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. Applications Heavy duty safety switches are designed for the following applications. Commercial and industrial installations. Up to 600 V ac or 600 V dc maximum. Up to 200,000 rms symmetrical amperes short circuit current. 30–1200 A. Horsepower ratings.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Sustainable Packaging | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 16.5 in |
| Device Mounting | surface |
| Tightening Torque |
|
| Electrical Connection | receptacle |
| Awg Gauge |
|
| Wiring Configuration | 4-wire |
| Width | 10.5 in |
| Depth | 7 in |
| Country of Origin | United States |
| Width | 10.5 in |
| Height | 16.5 in |
| Disconnector Device Type | non-fusible disconnect switch |
| Product Or Component Type | Receptacle Switch |
| Phase | 3 phase |
| Product Destination | plug APJ6485 Crouse-Hinds Arktite |
| Nema Degree Of Protection | NEMA 12K |
| Line Rated Current | 60 A |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage |
|
