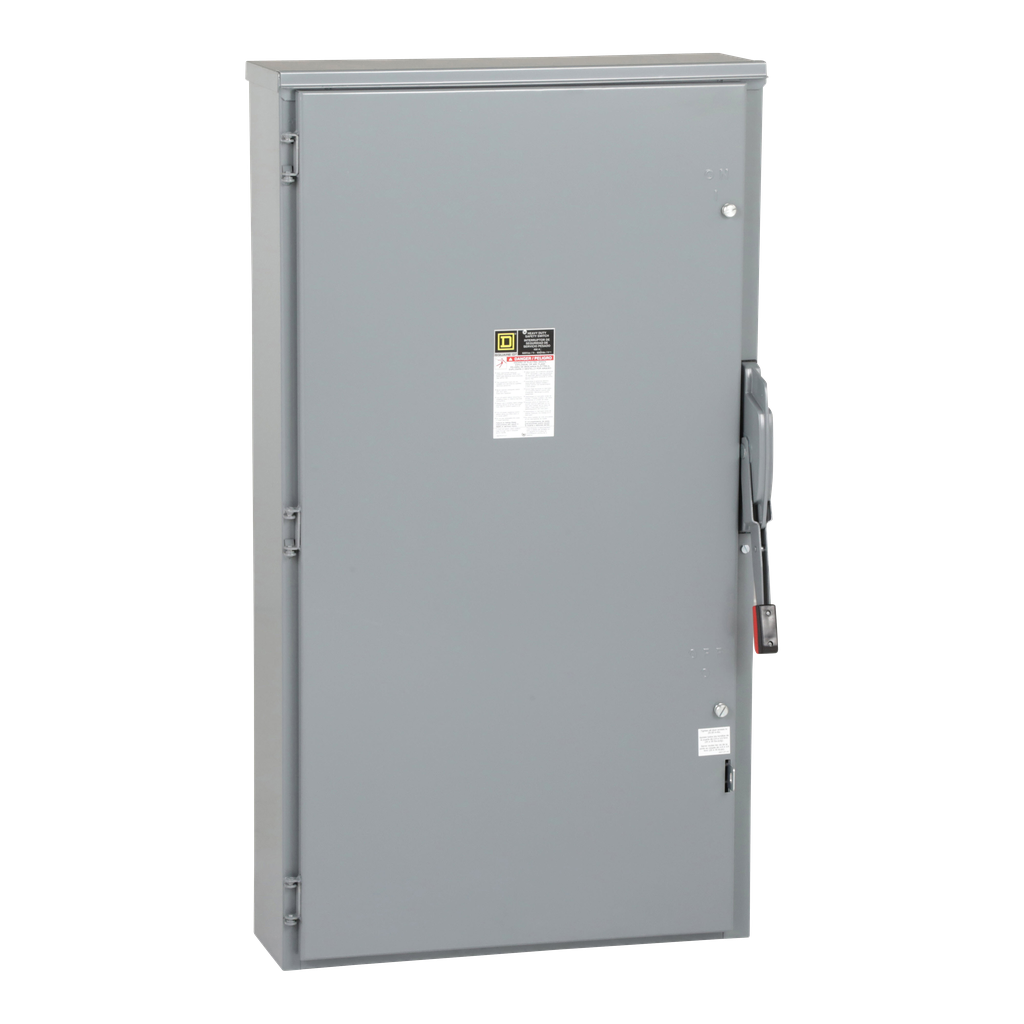

HU265R - Safety switch, heavy duty, non fusible, 400A, 2 pole, 250hp, 600VAC/DC, NEMA 3R

HU265R

Safety switch, heavy duty, non fusible, 400A, 2 pole, 250hp, 600VAC/DC, NEMA 3R

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL listed file E2875
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404026EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Height	50.31 in
Device Mounting	surface
Tightening Torque	550-550 lbf.in (AWG 1/0...750 kcmil)
Net Weight	79.4 kg
Electrical Connection	lugs
Awg Gauge	AWG 1/0...750 kcmil copper or aluminium
Wiring Configuration	2-wire
Width	27.88 in
Depth	10.13 in
Country of Origin	United States
Width	27.88 in
Height	50.31 in
Weight	79.4 kg
Disconnector Device Type	non-fusible disconnect
Product Or Component Type	Single Throw Safety Switch
Phase	3 phase
Series Name	heavy duty
Nema Degree Of Protection	NEMA 3R galvannealed steel
Line Rated Current	400 A
Device Composition	none
Device Application	heavy application
Number Of Poles	2
[Ue] Rated Operational Voltage	250 V DC 240 V AC

Safety switch, heavy duty, non fusible, 400A, 2 pole, 250hp, 600VAC/DC, NEMA 3R
