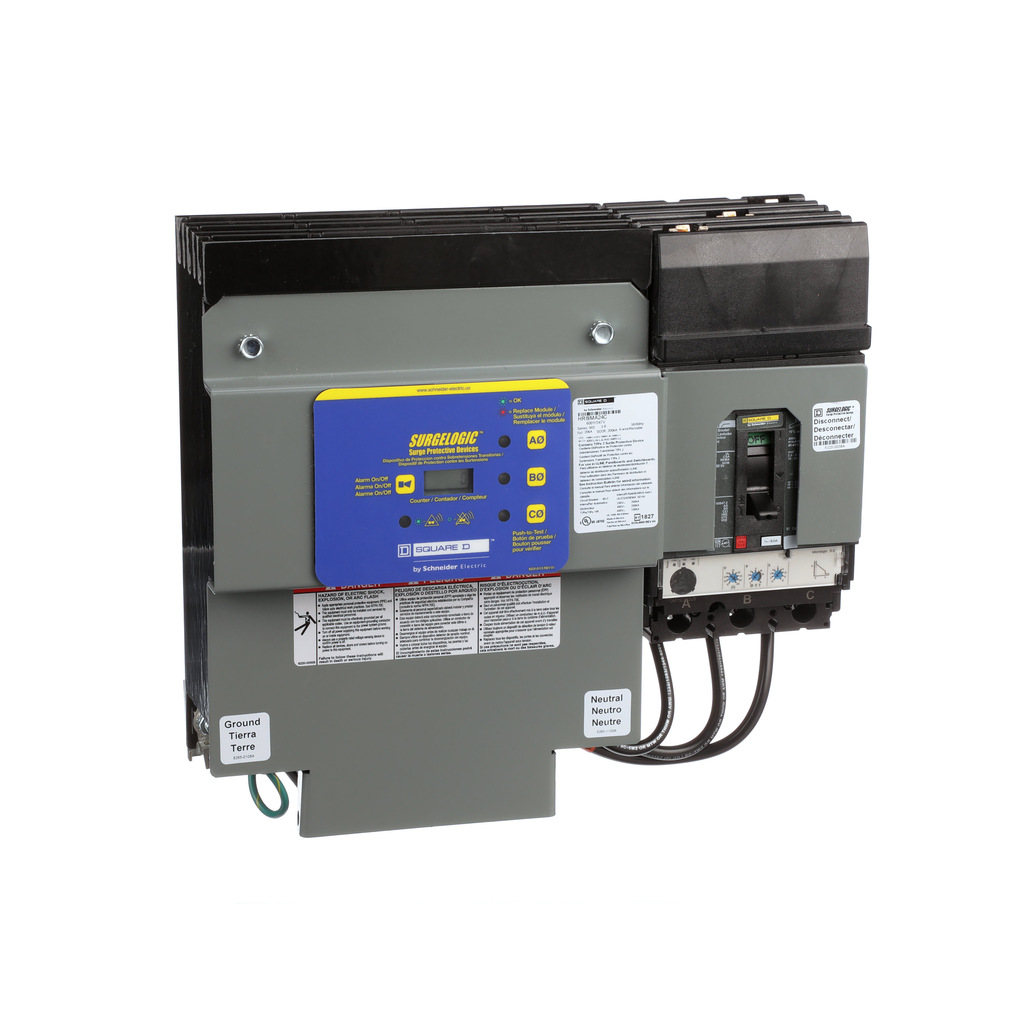

HR8IMA24C – Surge protection device, Surgelogic, HR, 240kA, 600Y/347 VAC, 3 phase, 4 wire, SPD type 2
HR8IMA24C
Surge protection device, Surgelogic, HR, 240kA, 600Y/347 VAC, 3 phase, 4 wire, SPD type 2

Square D® load center surge protective devices, HR8IMA24C, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Standards
  • UL 1449:ed. 3
  • UL 1283:ed. 5
  • CSA C22.2 No 8:1986
  • UL 96A:ed. 12
  • UL 489:ed. 11
  • CSA C22.2 No 5-09
Nema Degree Of Protection NEMA 2
Height 308.9 mm
Breaking Capacity 100 kA
Connections - Terminals
  • I-Line line
  • lugs ground AWG 6 copper 4 N.m
  • lugs neutral AWG 6 copper 4 N.m
Mounting Support panel mounting
Cable Length 483 mm
Provided Equipment
  • alarm enable/disable switch
  • surge counter
  • circuit-breaker
Surge Current 240 kA
Phase 3 phase
Local Signalling
  • status LED green per phase normal operation
  • status LED red per phase fault
Short-Circuit Protection 200 kA
[Uc] Maximum Continuous Operating Voltage 420 V
Line Rated Current 60 A
Width 341.9 mm
Wiring Configuration 4-wire
Depth 142.1 mm
Trip Unit Technology electronic
Number Of Poles 3
[Ue] Rated Operational Voltage 600Y/347 V AC
Country of Origin Mexico
Length 483 mm
Width 341.9 mm
Height 308.9 mm
Range Of Product Surgelogic
Breaking Capacity Code HR
Product Or Component Type surge protection device
Device Short Name IMA
Rohs Exemption Information Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive Compliant with Exemptions
