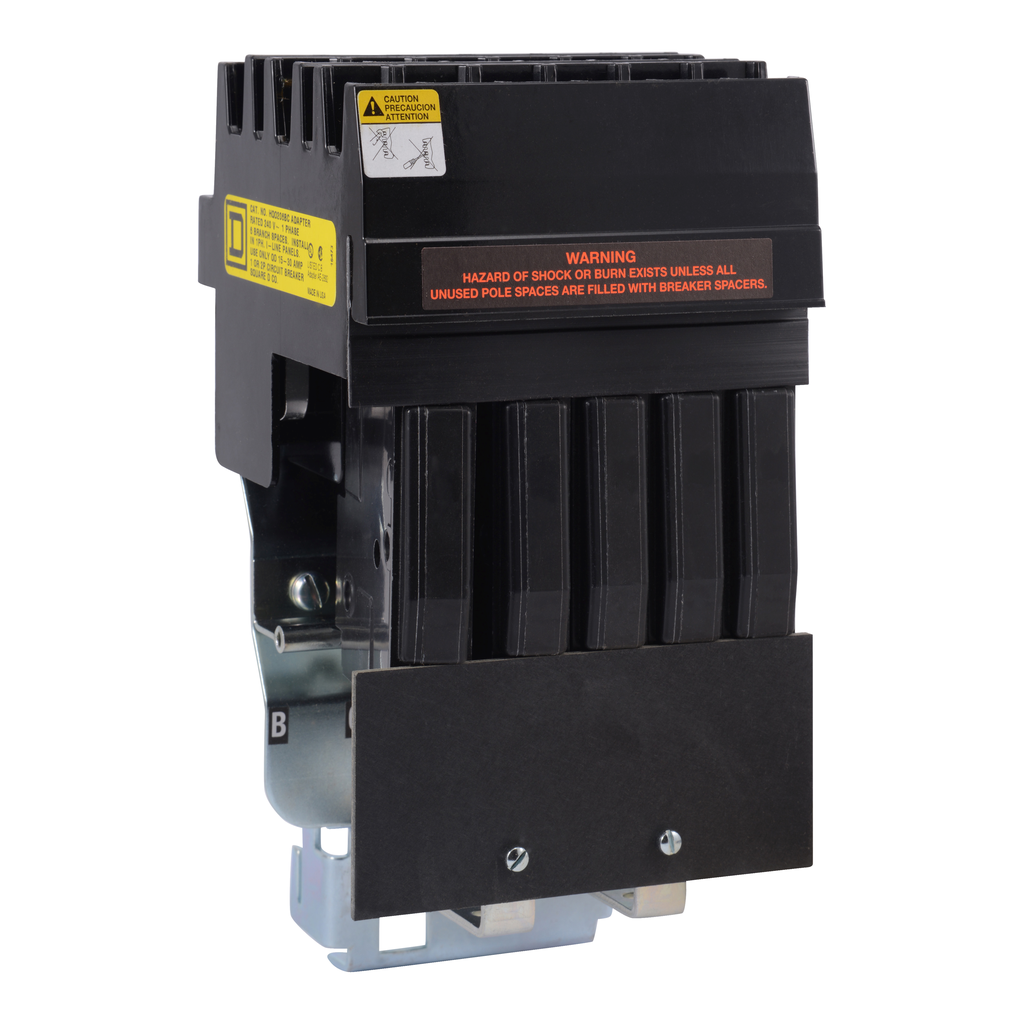

Distribution panel, QO, for I-Line panelboards, 240V, 30A, 2 pole, BC
I-Line power distribution panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system of a large commercial or industrial facility. The I-Line power distribution panelboard has a circuit breaker engagement system and is used to feed NQ and NF panelboards. I-Line panelboards are capable of feeding large motor loads and are utilized in most every market segment. This QO distribution panel only mounts in HCM, HCP, HCP-SU or HCR-U I-Line panelboards. This QO distribution will accept up to six 30A single pole QO circuit breakers. This panel has a 240 VAC maximum rating. Panel provides 25 kA breaking capacity. It has an BC phase connection. The panel will accept 14 AWG or 12 AWG copper or aluminum wire.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Circuit Breaker Type | QO |
| Awg Gauge | AWG 14...AWG 12 copper or aluminium |
| Phase Connection | BC |
| Country of Origin | United States |
| Phase | 1 phase |
| Range Of Product | QO |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Product Or Component Type | panel |
| Number Of Spaces | 6 |
| Short-Circuit Current | 25 kA |
| Line Rated Current | 30 A |
