HOMRBGK2C

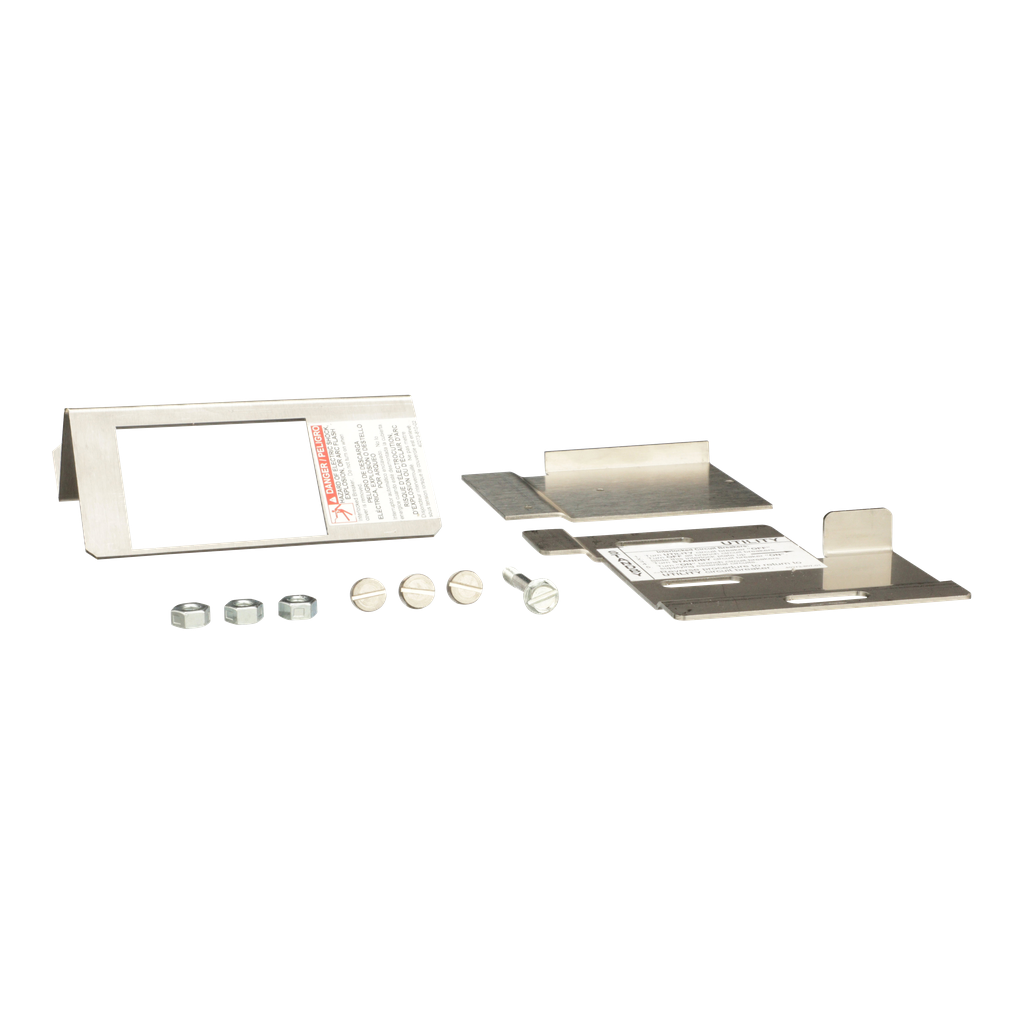

Load center accessory, Homeline, interlock kit, generator circuit breaker, high amp, outdoor, consumer pack
Homeline generator panels are for the manual transfer from utility to generator power. This generator circuit breaker interlock kit is for use on "S2" and "S3" series NEMA 1 and "S1" series NEMA 3R Homeline generator load centers. It is used to interlock a QOM2 two pole main circuit breaker of the load center (150A to 225A) with a Homeline two pole (15A to 125A) branch circuit breaker. This interlock kit has a maximum height of 2.56 inches, a maximum width of 4.07 inches and maximum depth of 0.9 inches. This interlock kit is packaged in consumer packaging.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 7.3 in |
| Height | 5 in |
| Range Of Product | Homeline |
| Product Or Component Type | interlock |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 5 in |
| Width | 7.3 in |
| Depth | 1.7 in |
| Line Rated Current |
|
| Number Of Poles | 2 |
| Warranty | 18 months |
