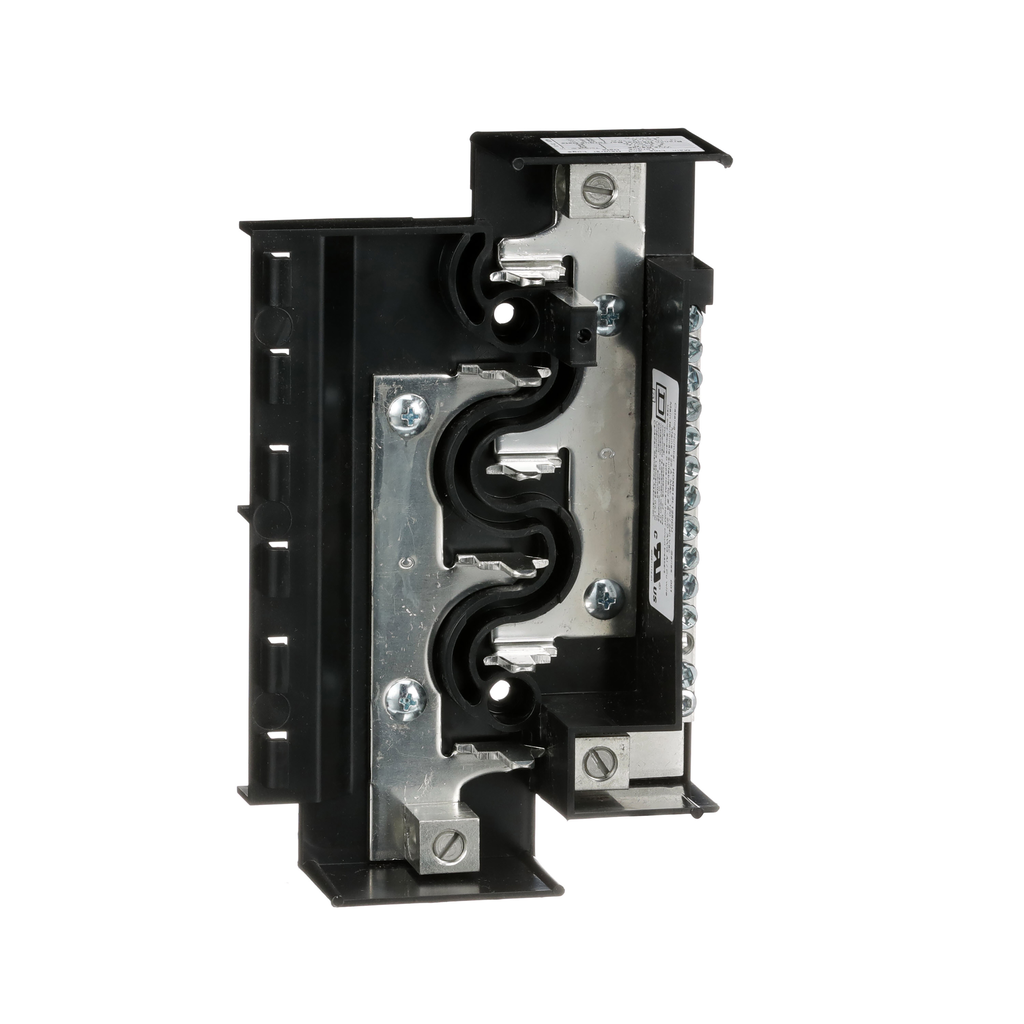

Load center interior, Homeline, 1 phase, 6 spaces, 12 circuits, 125A convertible main lugs, NEMA1, special
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center interior is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. This load center interior provides 6 space. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline load center interior is UL component recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Recognized |
|---|---|
| Ambient Air Temperature For Operation |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Tightening Torque |
|
| Awg Gauge | AWG 8...AWG 2/0 aluminium/copper |
| Country of Origin | United States |
| Phase | 1 phase 3 wires |
| Range Of Product | Homeline |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Product Or Component Type | Load Center Interior |
| Number Of Circuits | 12 |
| Number Of Spaces | 6 |
| Line Rated Current | 125 A |
| Load Center Type | Fixed Mains (lugs) |
