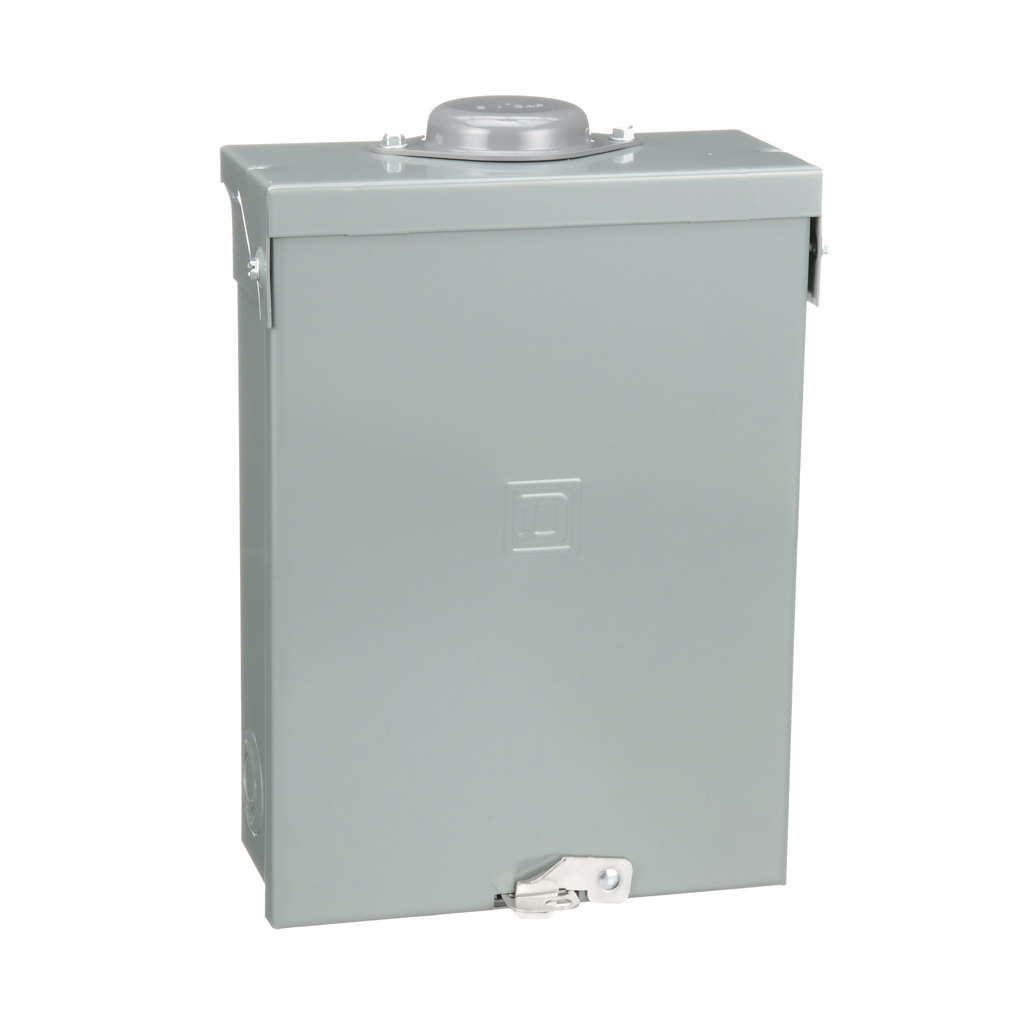

HOM612L100RBCP
Load center, Homeline, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA3R, consumer pack
The Square D® Homeline® Load Centers and Circuit Breakers, HOM612L100RBCP are part of a comprehensive family of circuit protection solutions. Plug on neutral load main breakers centers with lug connections. US and Canadian UL® Listed to the UL 1449 standard. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 321 mm |
| Phase | 1 phase 3 wires |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Bus Rated Current | 100.0 A |
| Type Of Packing | consumer packaging |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 6 |
| Material | tin plated aluminium: busbar |
| Surface Finish | baked enamel Gray |
| Enclosure Material | welded galvannealed steel |
| Awg Gauge | AWG 8...AWG 1 copper or aluminium |
| Width | 226 mm |
| Depth | 108 mm |
| Box Number | 2R |
| Country of Origin | Mexico |
| Width | 226 mm |
| Height | 321 mm |
| Range Of Product | Homeline |
| Product Or Component Type | Load Center |
| Electrical Connection | lugs |
| Number Of Circuits | 12 |
| Number Of Spaces | 6 |
| Cover Type | surface cover |
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
| Line Rated Current | 100 A |
| Load Center Type | Fixed Mains (lugs) |
| Product Certifications | UL listed file E-6294 |
| Ambient Air Temperature For Operation |
|
